Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76005 |

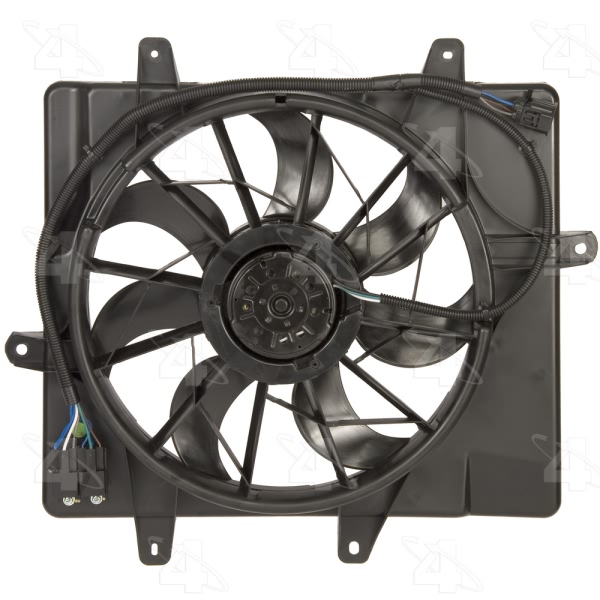

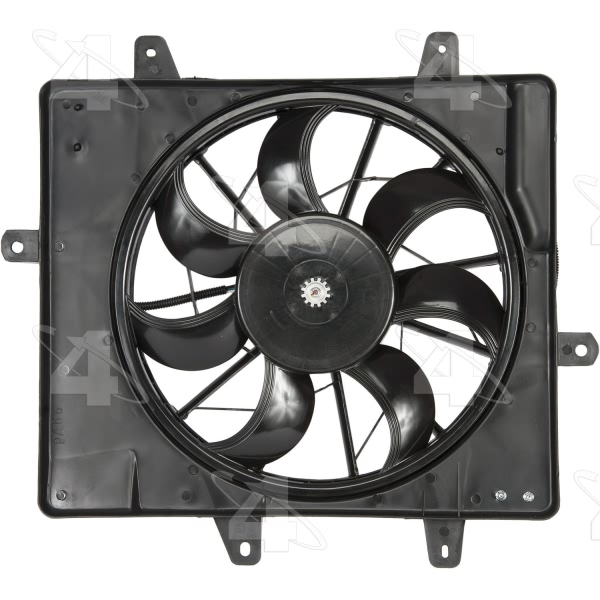

Part Description | Engine Cooling Fan |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Male |
Connector qty | 1 |
Connector Shape | Square |
Connector Type | 4 lead wires w/ connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 1 |
Height IN | 24.500 |
Height MM | 444.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Location | Radiator Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 27.500 |
Package Depth MM | 698.500 |
Package Height IN | 6.250 |
Package Height MM | 158.750 |
Package Length IN | 23.750 |
Package Length MM | 603.250 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan |
Terminal Gender | Female |
Terminal Quantity | 4 |
UPC | 096361760059 |
Voltage | 12 |
Width IN | 27.750 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2010 Chrysler PT Cruiser | All Trims | 4 Cyl 2.4L |
