Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 85916 |

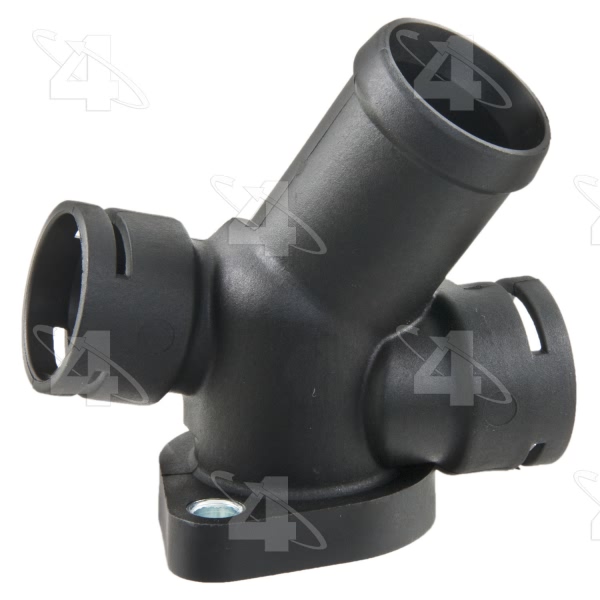

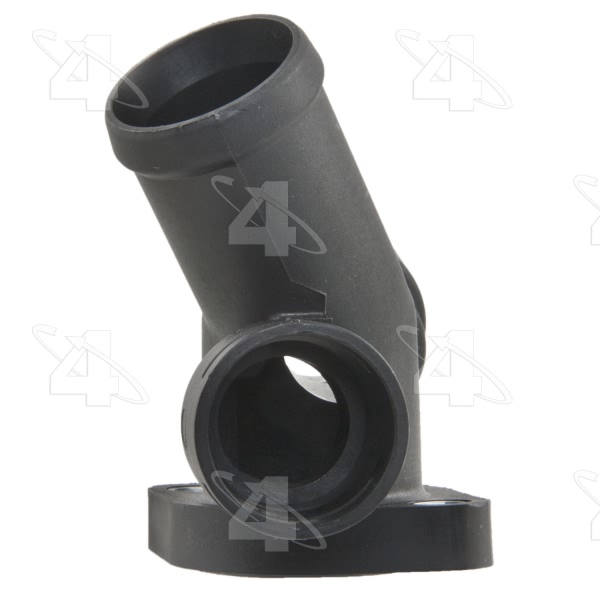

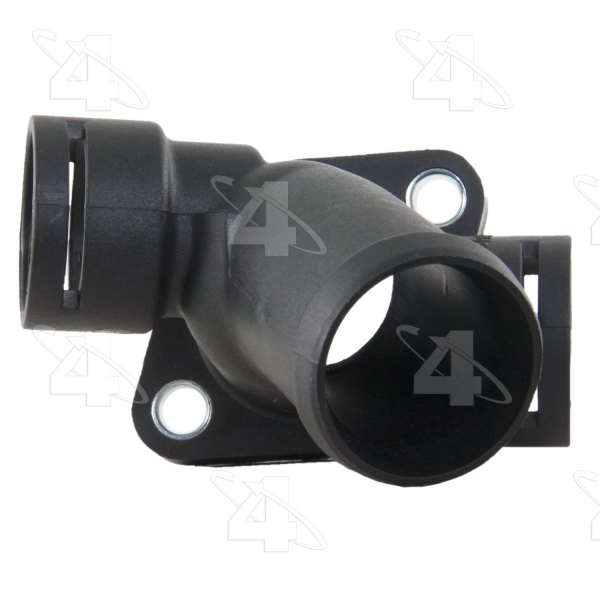

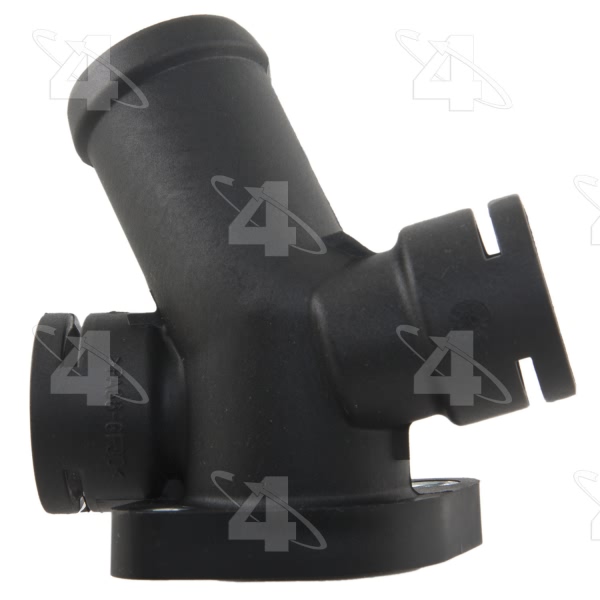

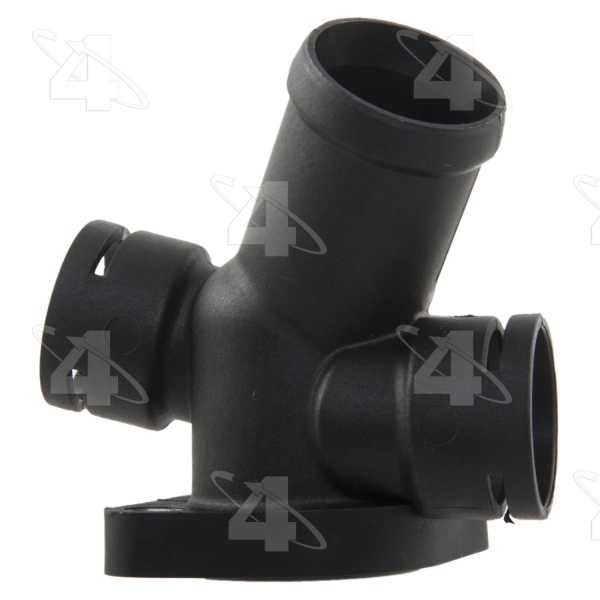

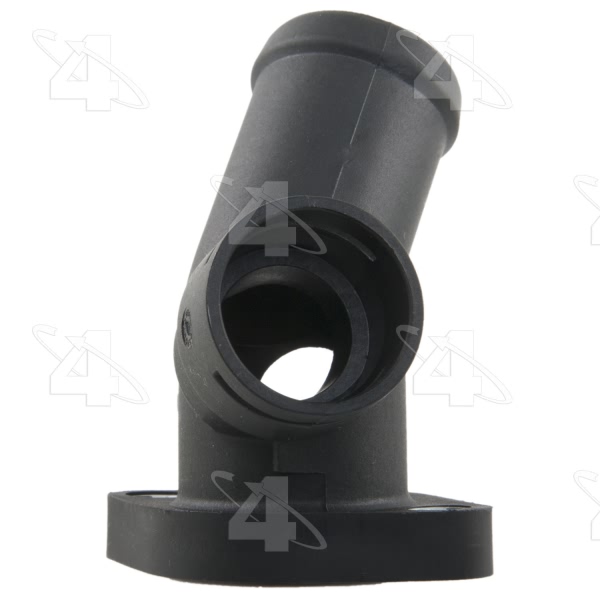

Part Description | Engine Coolant Hose Flange |
Base Width IN | 0.400 |
Base Width MM | 10.000 |
Bld Screw Included | Not Included |
Blt Hole A to Ctr IN | 2.093 |
Blt Hole A to Ctr MM | 53.160 |
Blt Hole B to Ctr IN | 2.093 |
Bolt Hole B Dia. IN | .289 |
Bolt Hole Quantity | 2.000 |
Gasket or Seal Included | Included |
Lip For Thermostat | No |
Material | Plastic |
Meets / Exceeds OEM | Yes |
Mounting Hardware Included | Not Included |
Mounting Hole Quantity | 2 |
Number of Outlets | 1.000 |
Outlet 1 Attachment Type | Hose Barb |
Outlet 1 Outside Diameter | 1.017 |
Outlet Quantity | 1.000 |
Style | w/o Thermostat |
Symetrical Base | Yes |
T-Stat Open Dia. IN | 1.1875 |
T-Stat Open Dia. MM | 30.163 |
Total Port Quantity | 4 |
UPC | 096361859166 |
Year Make Model | Trim | Engine |
---|---|---|
1992 Volkswagen EuroVan | All Trims | All Engines |
1993-1994 Volkswagen EuroVan | All Trims | 5 Cyl 2.5L |
1995-1997 Volkswagen EuroVan | All Trims | All Engines |
