Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 85685 |

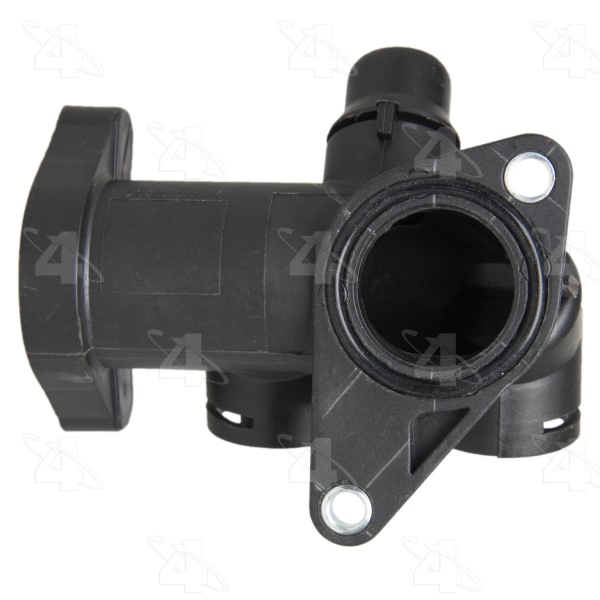

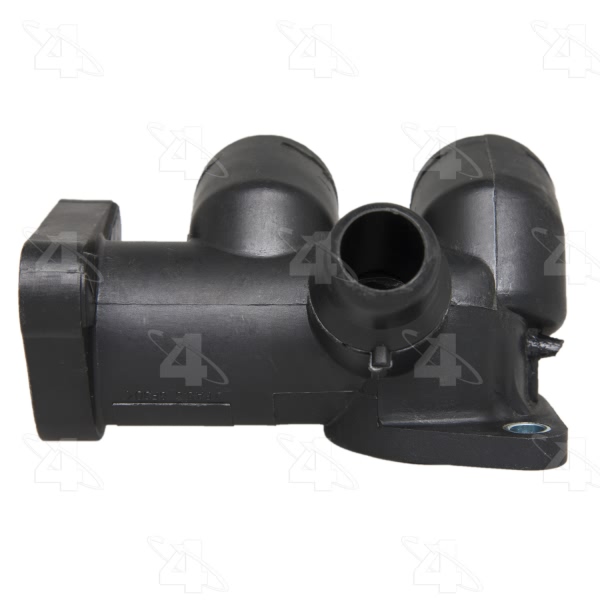

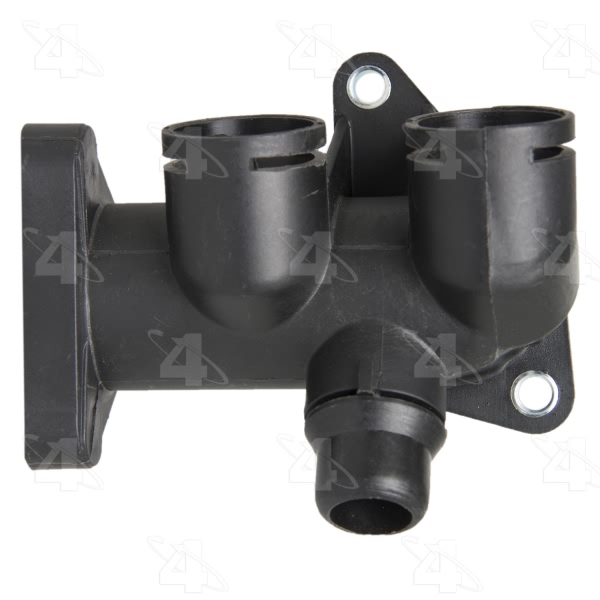

Part Description | Engine Coolant Hose Flange |
Base Width IN | 0.284 |
Base Width MM | 7.214 |
Bld Screw Included | Not Included |
Blt Hole A to Ctr IN | 3.175 |
Blt Hole A to Ctr MM | 80.645 |
Bolt Hole Quantity | 2.000 |
Bypas Dia Length MM | 12.700 |
Bypas Dia. Length IN | 0.500 |
BypasB Dia Length IN | 0.500 |
BypasB Dia Length MM | 12.700 |
Bypass B Dia. IN | 1.125 |
Bypass B Dia. MM | 28.448 |
Bypass Dia. IN | 0.875 |
Bypass Dia. MM | 22.225 |
Gasket or Seal Included | Not Included |
Hose B Dia. MM | 34.544 |
Hose C Dia. MM | 32.770 |
Hose Dia. IN | 1.505 |
Hose Dia. MM | 38.227 |
Lip For Thermostat | No |
Material | Plastic |
Meets / Exceeds OEM | Yes |
Mounting Hardware Included | Not Included |
Mounting Hole Quantity | 2 |
Number of Outlets | 3.000 |
Outlet 2 Outside Diameter | 1.360 |
Outlet 3 Outside Diameter | 1.290 |
Outlet Quantity | 3 |
Style | w/o Thermostat |
Symetrical Base | No |
T-Stat Open Dia. IN | 1.255 |
T-Stat Open Dia. MM | 31.890 |
Total Port Quantity | 2 |
UPC | 096361856851 |
Year Make Model | Trim | Engine |
---|---|---|
1996-2001 Audi A4 | All Trims | All Engines |
1996-2001 Audi A4 Quattro | All Trims | All Engines |
2002 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
2002 Audi A4 Quattro | All Trims | 6 Cyl 3.0L |
2000-2002 Audi S4 | All Trims | All Engines |
1998-2001 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
