Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46114 |

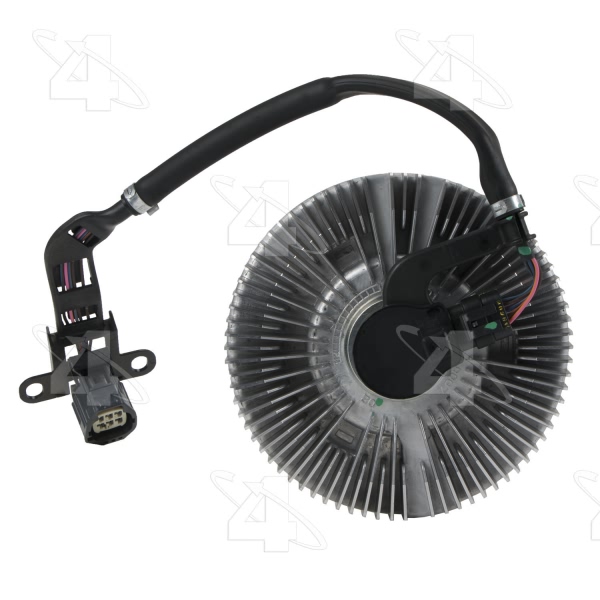

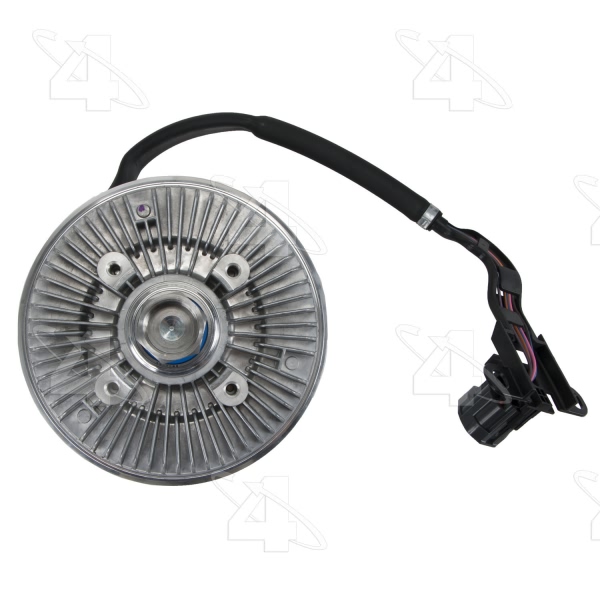

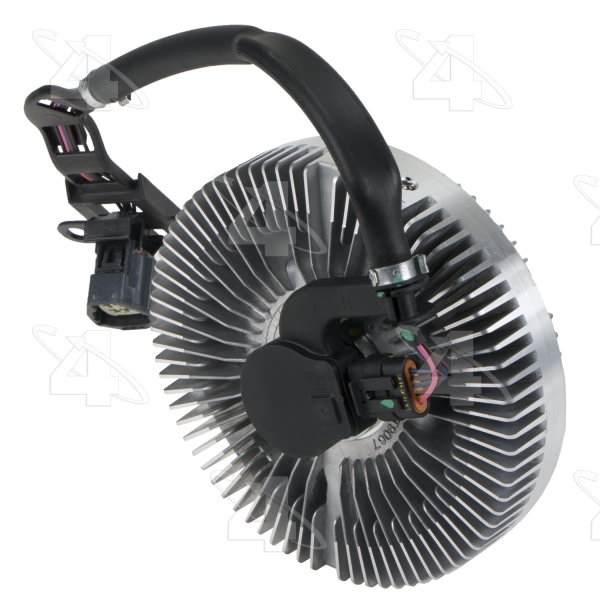

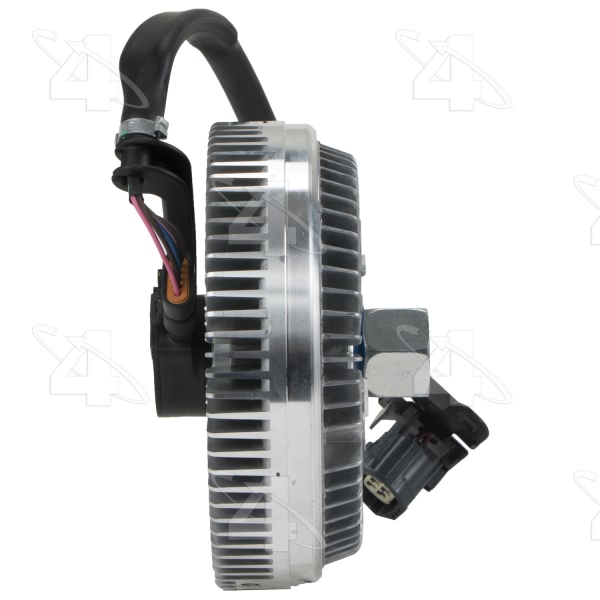

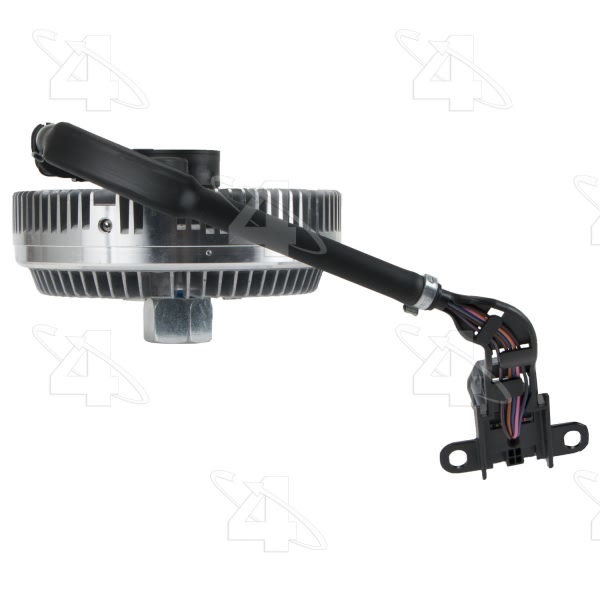

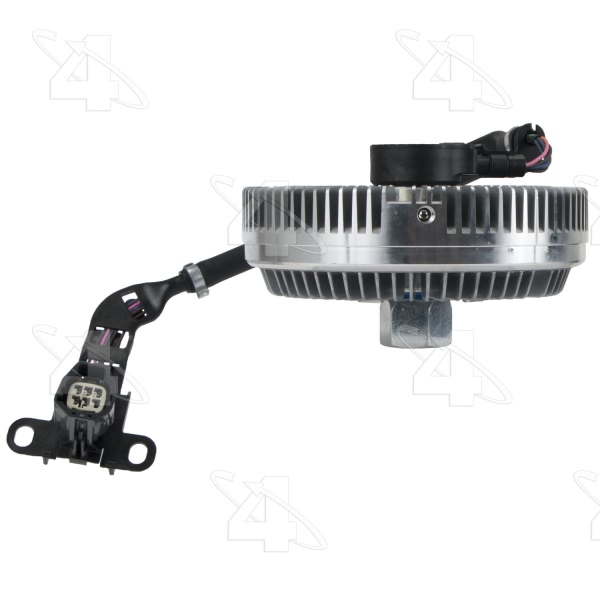

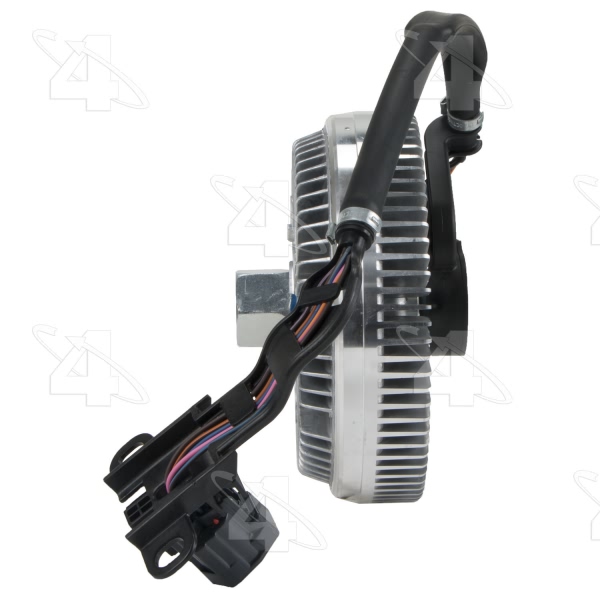

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Thread | 5/16 in - 18 |
Clutch Maximum Diameter | 7.48 |
Clutch Type | Electronic |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.07 |
Fan Bolt Circle IN | 3.81 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Height IN | 4.39 |
Performance Rated | Yes |
Pilot Depth IN | 0.54 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361461147 |
Use Type | Severe |
Year Make Model | Trim | Engine |
---|---|---|
2010 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
2010 Dodge Ram 3500 | All Trims | All Engines |
2010-2013 Ram 2500 | All Trims | 6 Cyl 6.7L |
2011-2013 Ram 3500 | All Trims | 6 Cyl 6.7L |
2011-2013 Ram 4000 | All Trims | 6 Cyl 6.7L |
