Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46094 |

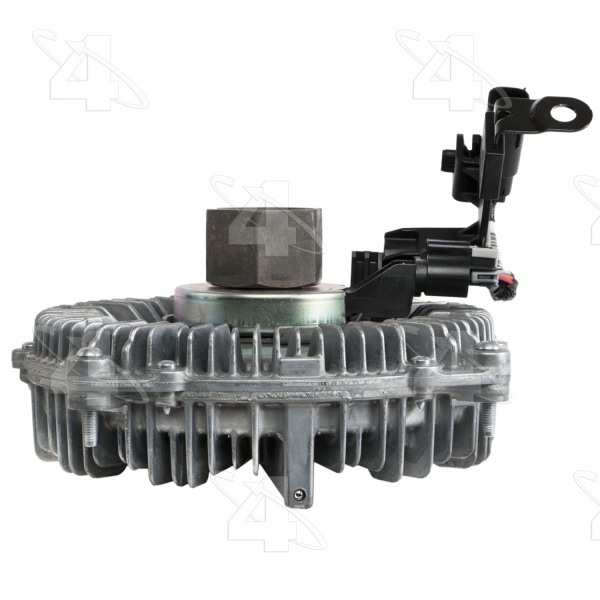

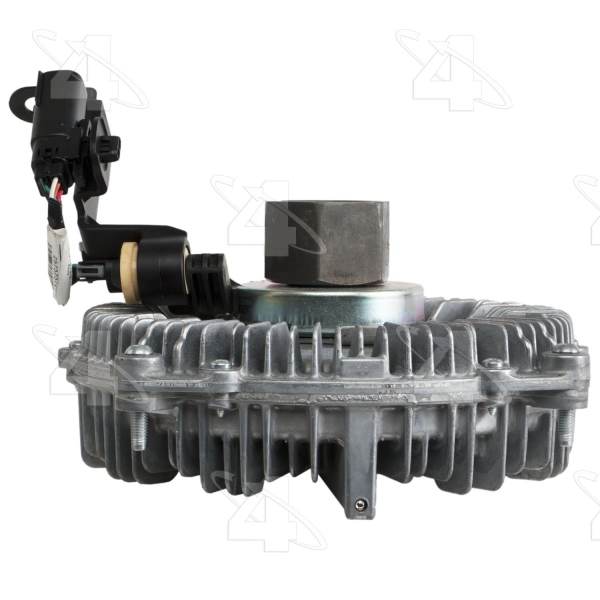

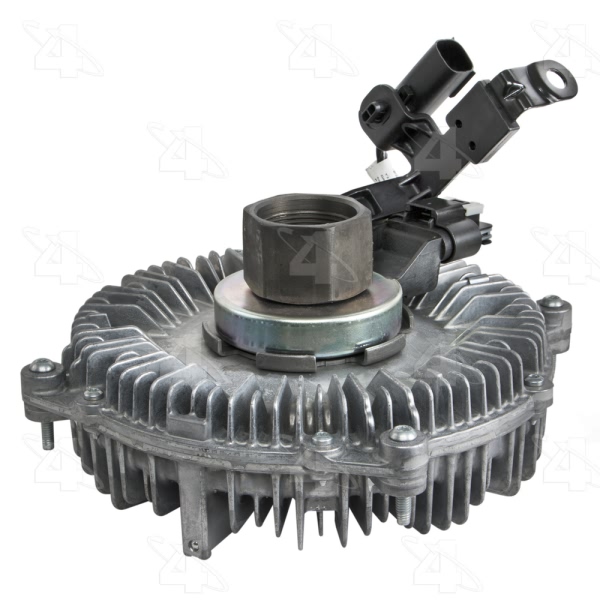

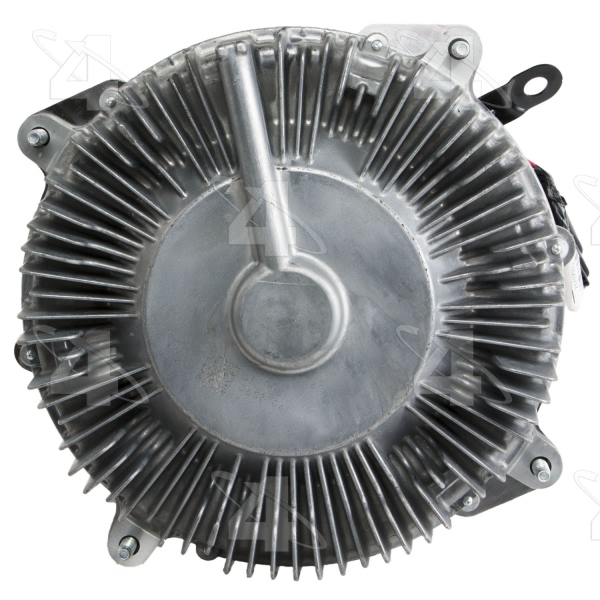

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Thread | M6 x 1.0 STUD |
Clutch Maximum Diameter | 9.39 |
Clutch Type | Electronic |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.9 |
Electronic Clutch | Electronic |
Fan Bolt Circle IN | 8.9 |
Fan Bolt Circle MM | 226.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.86 (47mm) HEX |
Mount Dia. MM | 47 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 238.5 |
Overall Height IN | 4.43 |
Overall Height MM | 112.5 |
Performance Rated | Yes |
Pilot Depth IN | 0.9 |
Pilot Depth MM | 22.9 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460942 |
Use Type | Severe Duty |

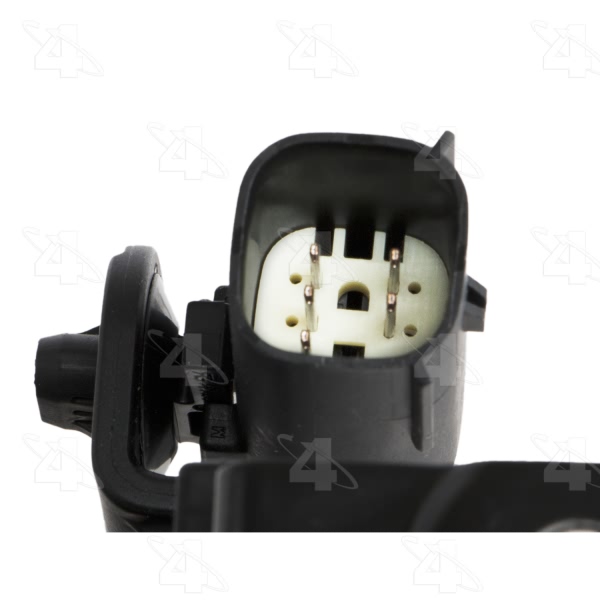

Wire Gauge Measurement | Uses Original Equipment Connector |
Wire Quantity | Uses Original Equipment Connector |
Year Make Model | Trim | Engine |
---|---|---|
2011-2019 Ford F-250 Super Duty | All Trims | 8 Cyl 6.7L |
2011-2019 Ford F-350 Super Duty | All Trims | 8 Cyl 6.7L |
