Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46069 |

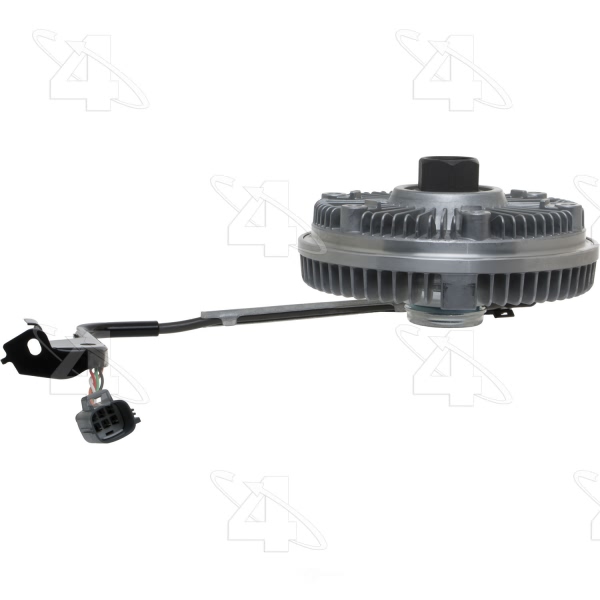

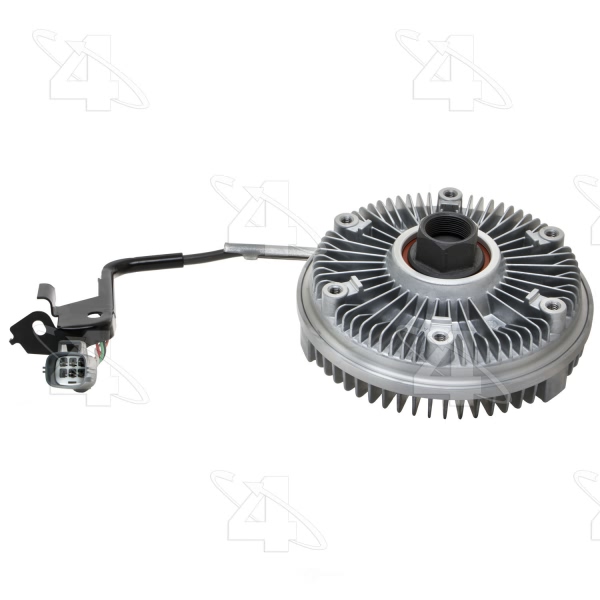

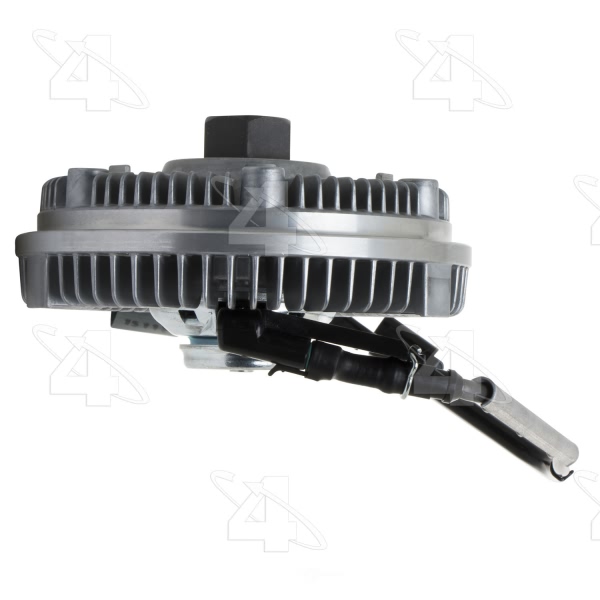

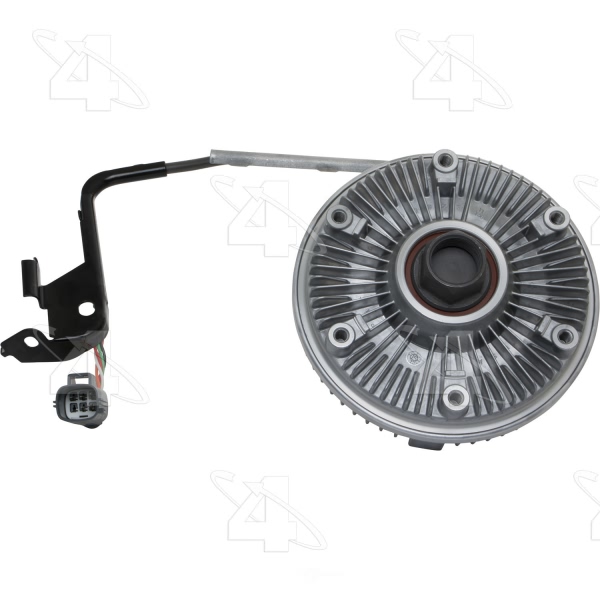

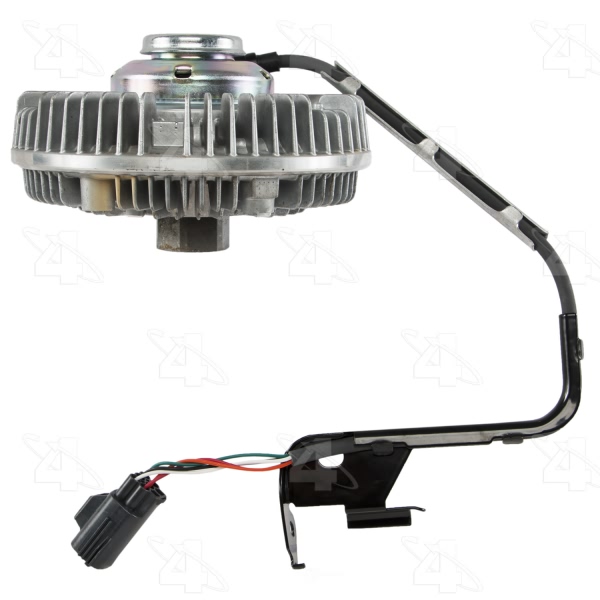

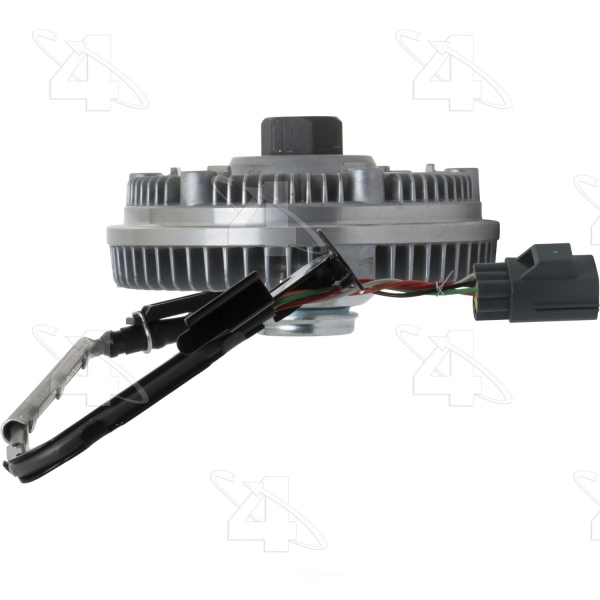

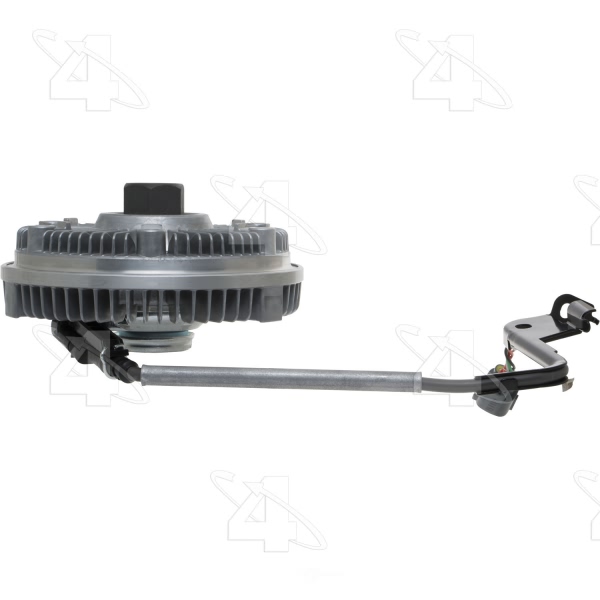

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 6 |
Bolt Quantity | 6 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.35 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.01 or 1.02 |
Electronic Clutch | Non Electronic |
Fan Bolt Circle IN | 6 |
Fan Bolt Circle MM | 152.4 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 6 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 186.69 or 186.7 |
Overall Height IN | 4.34 or 4.35 |
Overall Height MM | 110.49 or 110.5 |
Performance Rated | Yes |
Pilot Depth IN | 0.55 |
Pilot Depth MM | 13.97 or 14 |
Pilot Dia. IN | 1 1/4-16 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460690 |
Use Type | Electro-Viscous |
Wire Gauge Measurement | Uses Original Equipment Connector |
Wire Quantity | Uses Original Equipment Connector |
Year Make Model | Trim | Engine |
---|---|---|
2004-2009 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
2007-2009 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
2004-2007 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
2007-2009 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
