Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46063 |

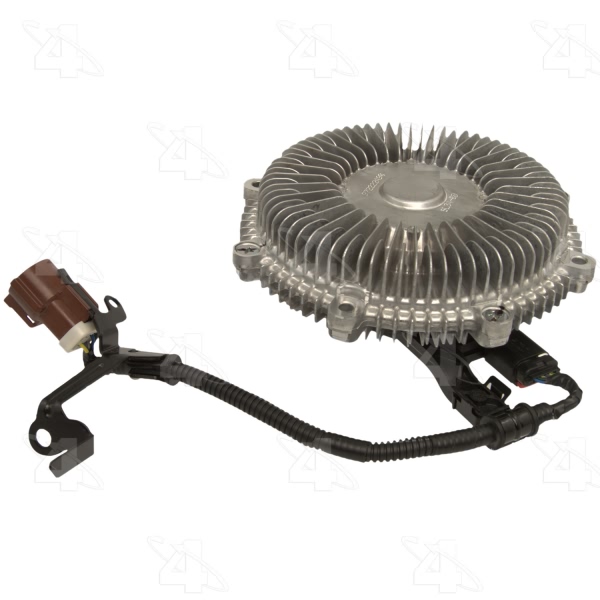

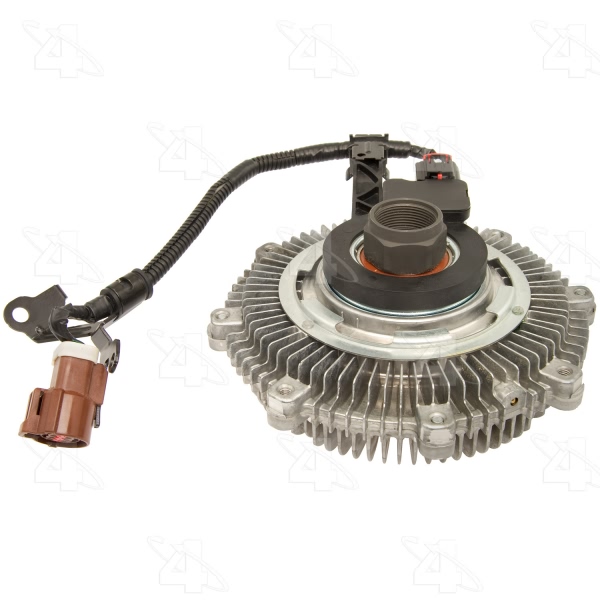

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 7.73 |
Clutch Type | A - 5" & 6" Import |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.62 |
Electronic Clutch | Electronic |
Fan Bolt Circle IN | 7.01 |
Fan Bolt Circle MM | 178.1 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 196.3 |
Overall Height IN | 3.56 |
Overall Height MM | 90.7 |
Performance Rated | Yes |
Pilot Depth IN | 0.7 |
Pilot Depth MM | 17.78 or 17.8 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460638 |
Use Type | Electro-Viscous |

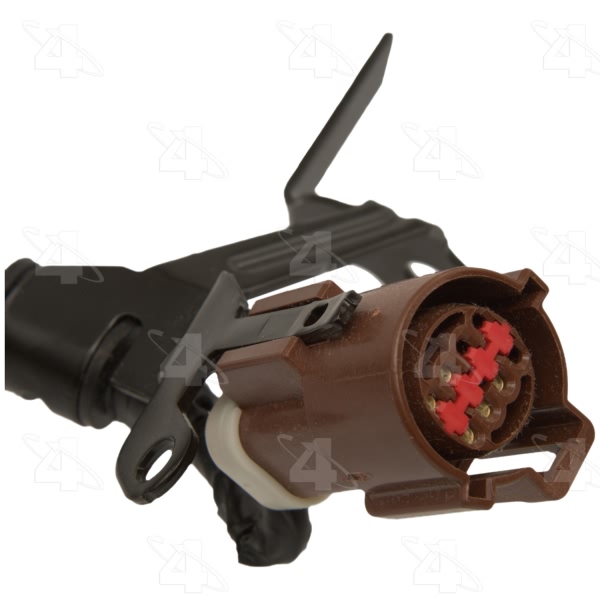

Wire Gauge Measurement | Uses Original Equipment Connector |
Wire Quantity | Uses Original Equipment Connector |
Year Make Model | Trim | Engine |
---|---|---|
2009 Ford Expedition | All Trims | All Engines |
2009 Ford F-150 | All Trims | All Engines |
2010 Ford F-150 | All Trims | 8 Cyl 4.6L |
2010 Ford F-150 | All Trims | 8 Cyl 5.4L |
2009 Ford F-250 | All Trims | All Engines |
2009-2010 Ford Lobo | All Trims | All Engines |
2009 Lincoln Navigator | All Trims | All Engines |
