Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46055 |

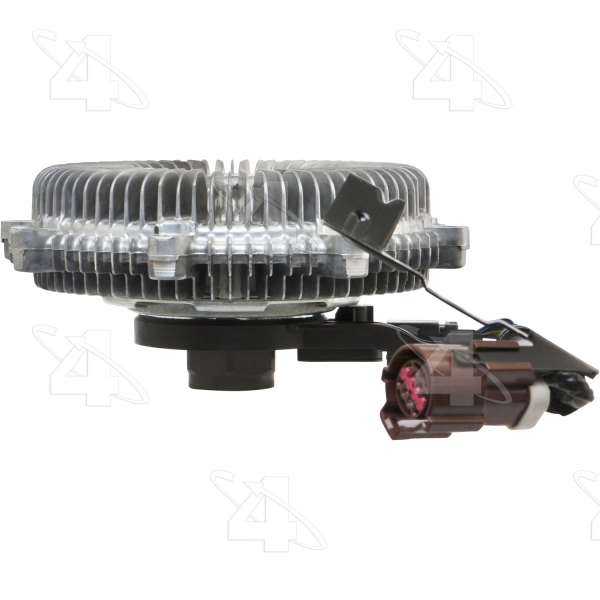

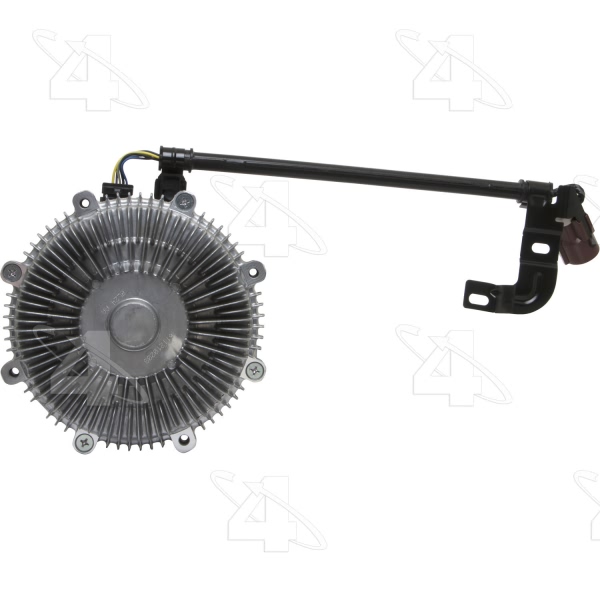

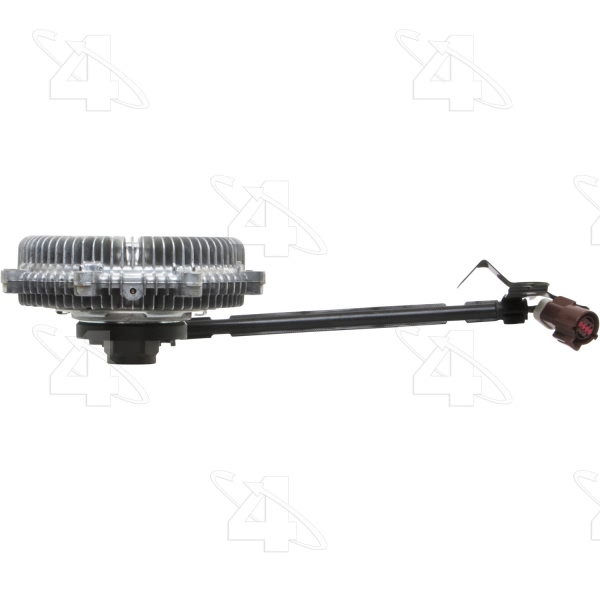

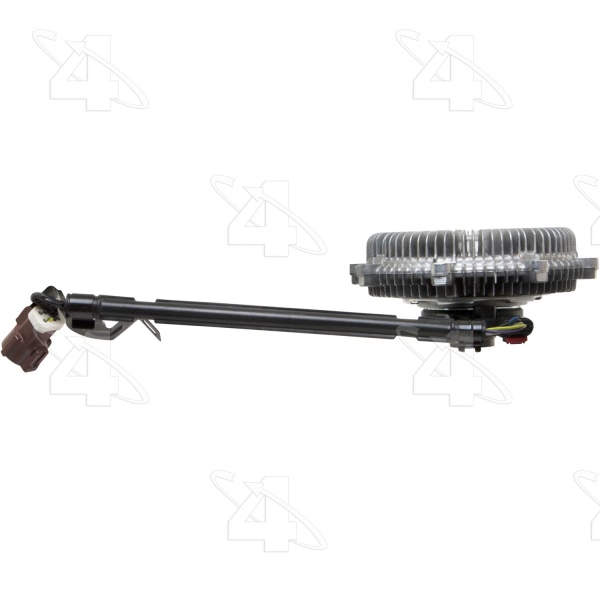

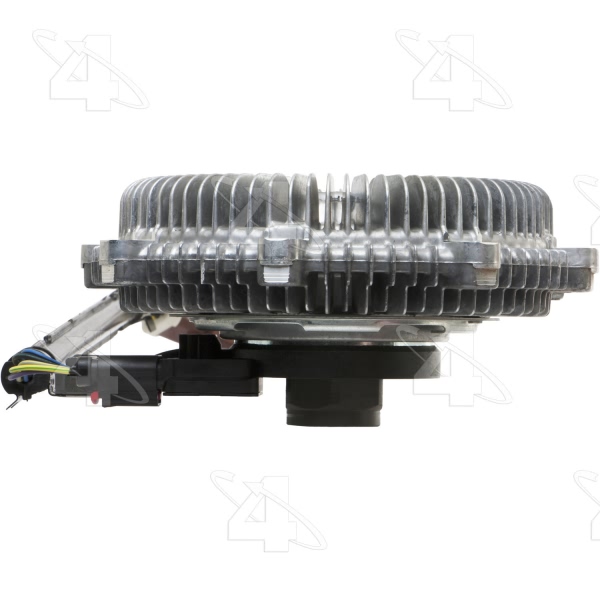

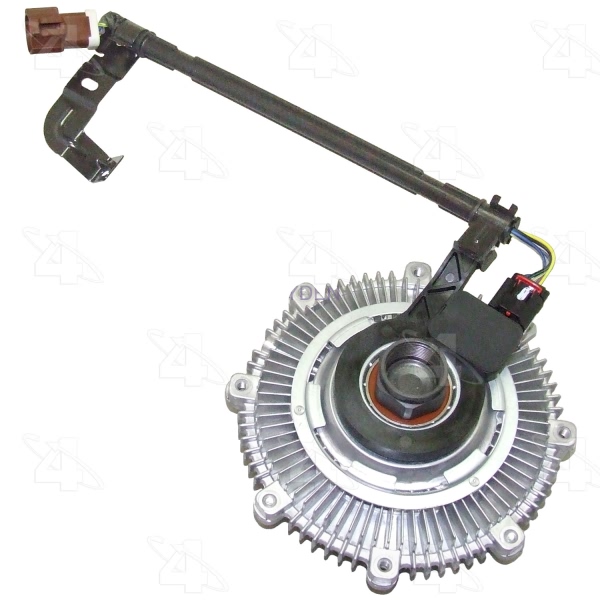

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M6 x 1.0 Hole |
Clutch Maximum Diameter | 7.73 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 2.62 |
Electronic Clutch | Electronic |
Fan Bolt Circle IN | 7.01 |
Fan Bolt Circle MM | 178 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 196.3 |
Overall Height IN | 3.58 |
Overall Height MM | 90.9 |
Performance Rated | Yes |
Pilot Depth IN | 0.7 |
Pilot Depth MM | 17.78 or 17.8 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460553 |
Use Type | Electro-Viscous |
Wire Gauge Measurement | Uses Original Equipment Connector |
Wire Quantity | Uses Original Equipment Connector |
Year Make Model | Trim | Engine |
---|---|---|
2006-2010 Ford Explorer | All Trims | All Engines |
2007-2010 Ford Explorer Sport Trac | All Trims | All Engines |
2006-2010 Mercury Mountaineer | All Trims | All Engines |
