Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46030 |

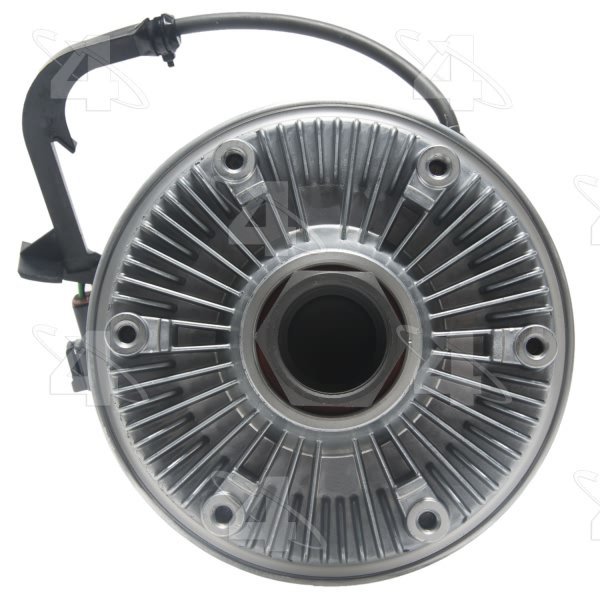

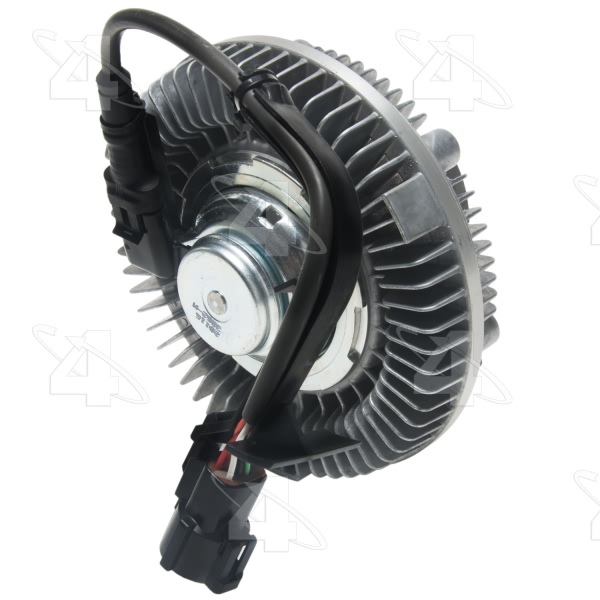

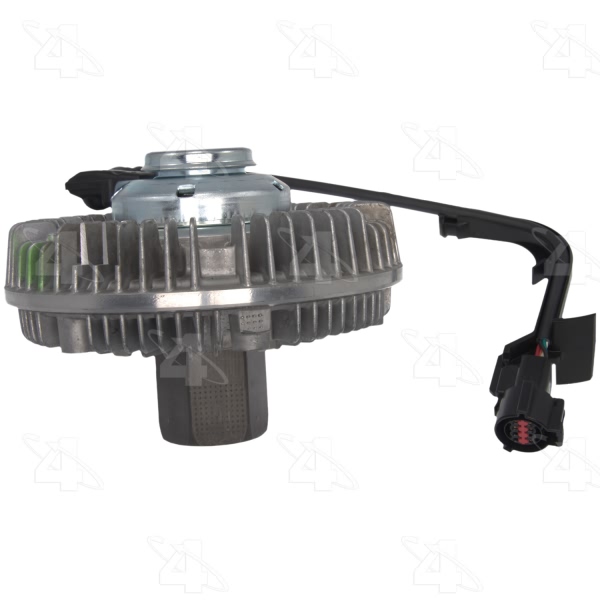

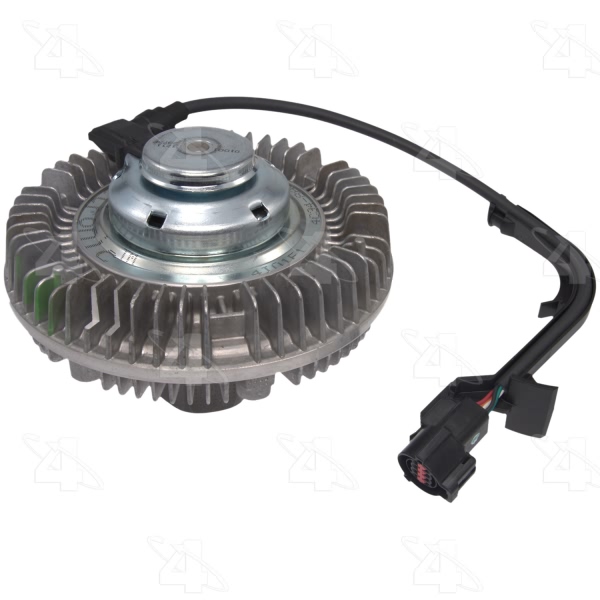

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 6 |
Bolt Quantity | 6 |
Bolt Thread | 5/16-18 Hole |
Clutch Maximum Diameter | 7.35 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.88 |
Electronic Clutch | Yes |
Fan Bolt Circle IN | 6 |
Fan Bolt Circle MM | 152.4 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.86 (47mm) HEX |
Mount Dia. MM | 47 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 6 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 186.7 |
Overall Height IN | 5.36 or 5.37 |
Overall Height MM | 136.4 |
Performance Rated | Yes |
Pilot Depth IN | 0.78 or 0.79 |
Pilot Depth MM | 20.1 |
Pilot Dia. IN | M40x2.000 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460300 |
Use Type | Electro-Viscous |

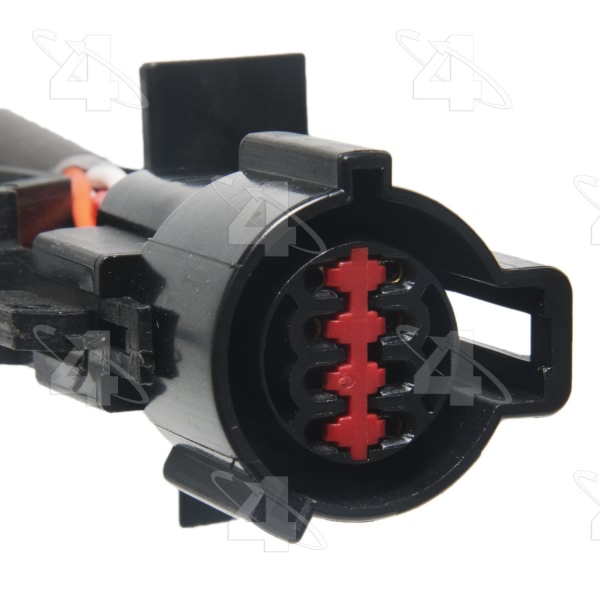

Wire Gauge Measurement | Uses Original Equipment Connector |
Wire Quantity | Uses Original Equipment Connector |
Year Make Model | Trim | Engine |
---|---|---|
2004-2005 Ford E-350 Club Wagon | All Trims | 8 Cyl 6.0L |
2004-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 6.0L |
2003-2005 Ford Excursion | All Trims | 8 Cyl 6.0L |
2003-2007 Ford F-250 Super Duty | All Trims | 8 Cyl 6.0L |
2003-2007 Ford F-350 Super Duty | All Trims | 8 Cyl 6.0L |
