Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 46024 |

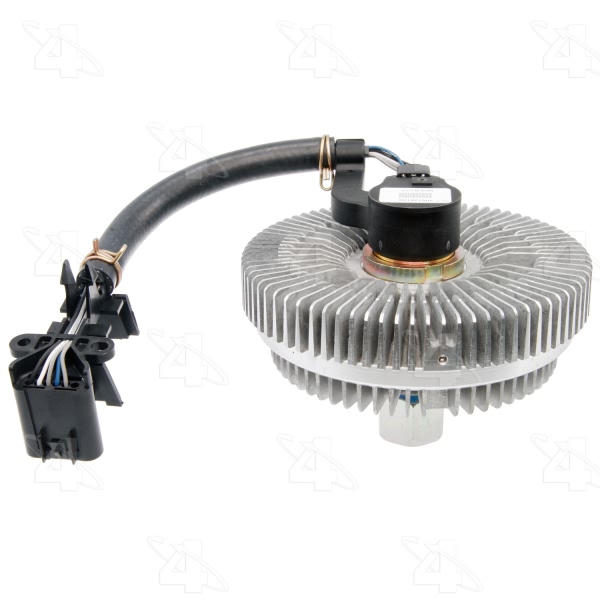

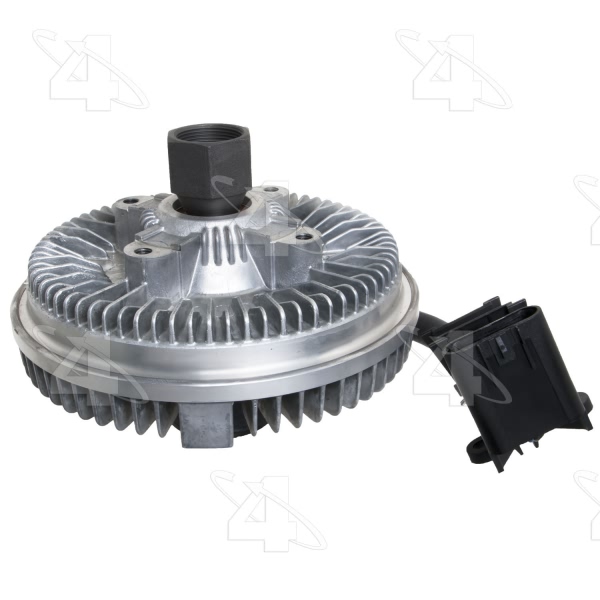

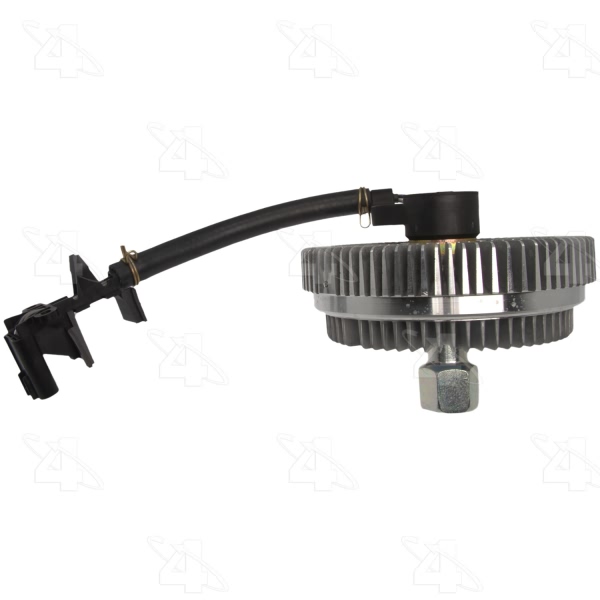

Part Description | Electronic Engine Cooling Fan Clutch |
Bolt Hole Quantity | 4 |
Bolt Quantity | 4 |
Bolt Thread | M8 x 1.25 Hole |
Clutch Maximum Diameter | 7.48 |
Clutch Type | D - Severe Duty & Truck Fan Drive |
Color | Raw Aluminum in Color |
Distance From Clutch To Mounting Flange | 1.54 |
Electronic Clutch | Yes |
Fan Bolt Circle IN | 3.81 |
Fan Bolt Circle MM | 96.8 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mount Dia. IN | 1.44 (36mm) HEX |
Mount Dia. MM | 36 HEX |
Mounting Hardware | Not Included |
Mounting Hole Quantity | 4 |
Mounting Type | HEX |
New or Reman | New |
Overall Dia. MM | 190 |
Overall Height IN | 5.52 |
Overall Height MM | 140.2 |
Performance Rated | Yes |
Pilot Depth IN | -- or 0.76 or 0.77 |
Pilot Depth MM | 19.3 |
Pilot Dia. IN | M30x1.500 |
Rotation | REV |
SDS Required | No (135233618) |
Style | Severe Duty |
UPC | 096361460249 |
Use Type | Electro-Viscous |

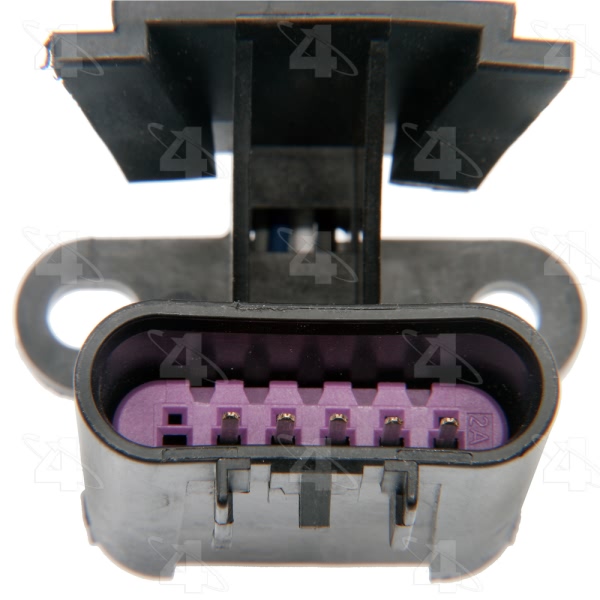

Wire Gauge Measurement | Uses Original Equipment Connector |
Wire Quantity | Uses Original Equipment Connector |
Year Make Model | Trim | Engine |
---|---|---|
2004-2007 Buick Rainier | All Trims | All Engines |
2003-2006 Chevrolet SSR | All Trims | All Engines |
2002-2009 Chevrolet Trailblazer | All Trims | All Engines |
2002-2006 Chevrolet Trailblazer EXT | All Trims | All Engines |
2002-2009 GMC Envoy | All Trims | All Engines |
2002-2006 GMC Envoy XL | All Trims | All Engines |
2004-2005 GMC Envoy XUV | All Trims | All Engines |
2003-2007 Isuzu Ascender | All Trims | All Engines |
2002-2004 Oldsmobile Bravada | All Trims | All Engines |
2005-2007 Saab 9-7x | All Trims | All Engines |
