Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76249 |

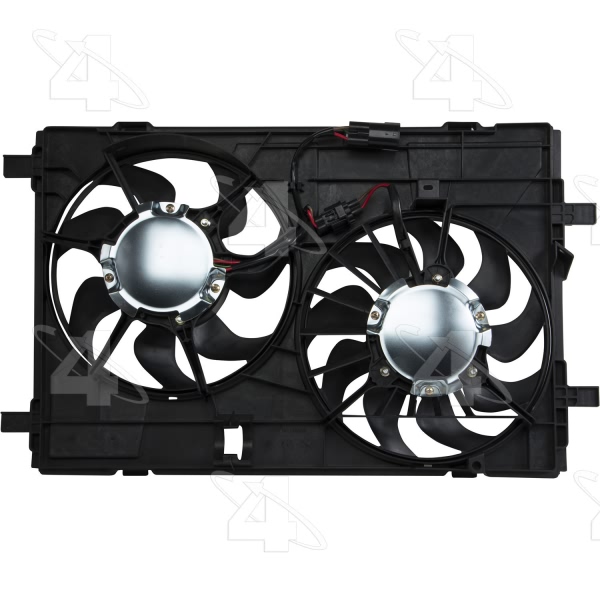

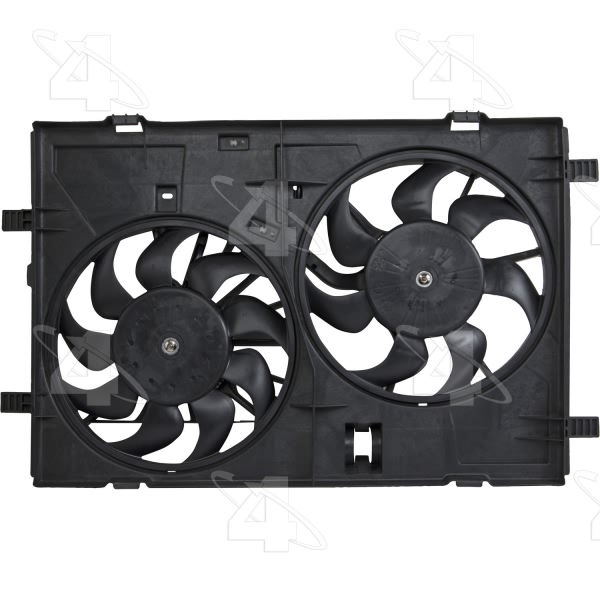

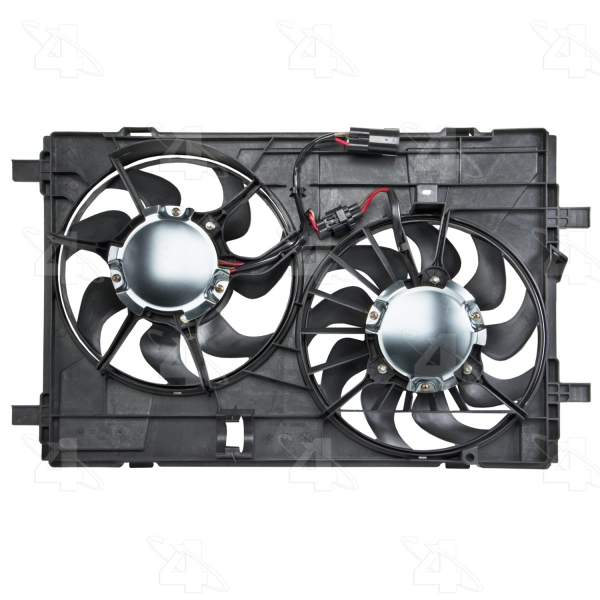

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |

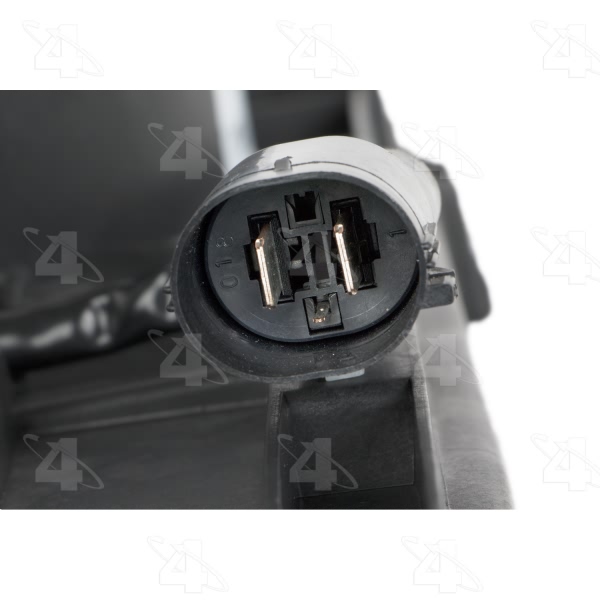

Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Oval |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 18.000 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Motor Type B | Condenser Fan |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 5.500 |
Package Depth MM | 140.000 |
Package Height IN | 20.500 |
Package Height MM | 521.000 |
Package Length IN | 33.500 |
Package Length MM | 851.000 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361762497 |
Voltage | 12 |
Width IN | 29.000 |
Year Make Model | Trim | Engine |
---|---|---|
2009-2010 Mazda 6 | All Trims | All Engines |
