Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76248 |

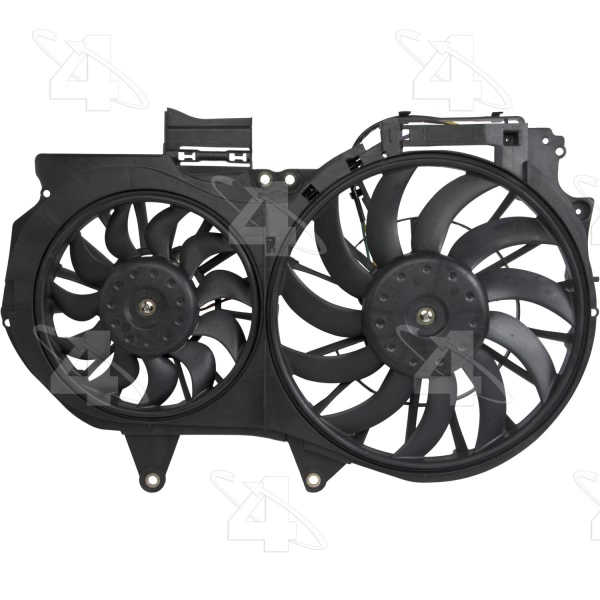

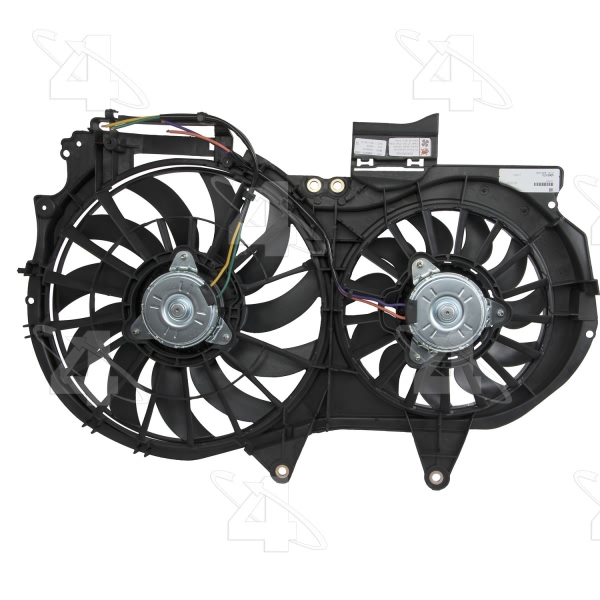

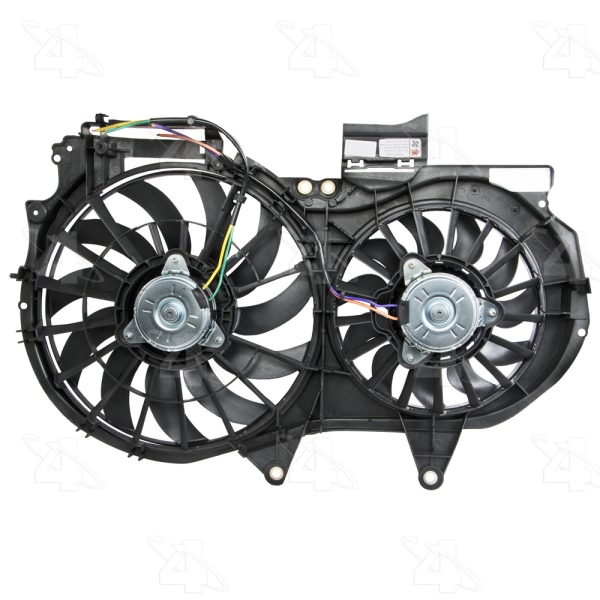

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector qty | 2 |
Connector Type | 2 lead wires |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 10 |
Fan 2 Blade Quantity | 10 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 19.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Motor |
Motor Type B | Condenser Fan motor |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 33.500 |
Package Height IN | 5.500 |
Package Length IN | 20.500 |
Performance Rated | Yes |
Shroud Color | Black |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |

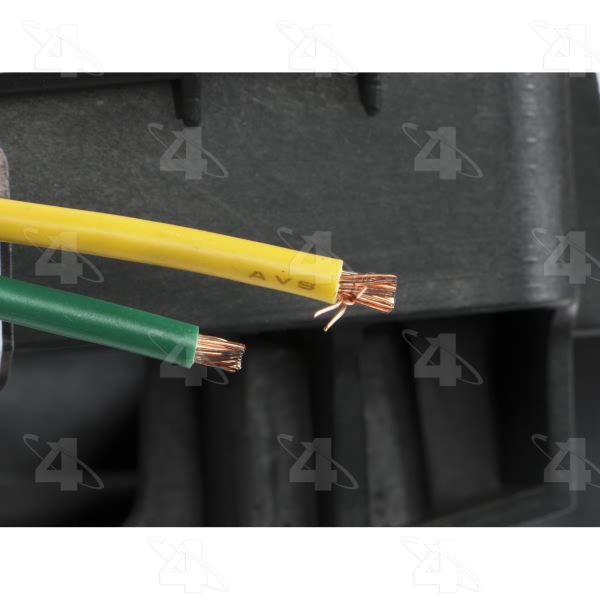

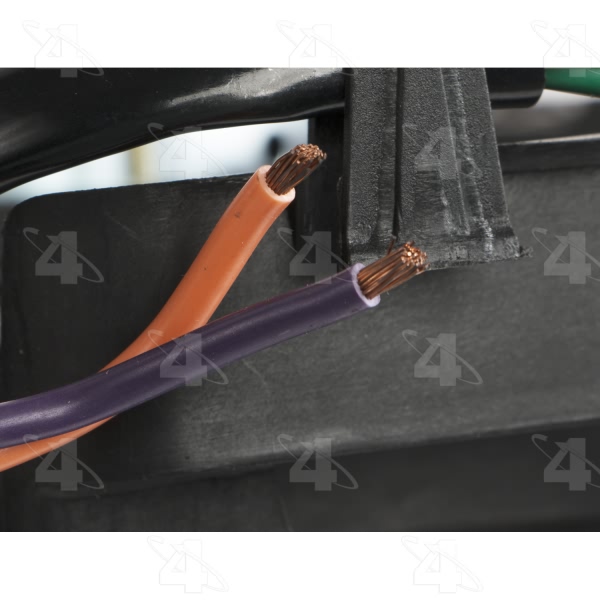

Terminal Gender | Wire Leads |
Terminal Quantity | 2 |
UPC | 096361762480 |
Voltage | 12 |
Width IN | 30.250 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2006 Audi A4 | All Trims | 4 Cyl 1.8L |
2006-2008 Audi A4 | All Trims | 4 Cyl 2.0L |
2005 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
2006-2008 Audi A4 Quattro | All Trims | 4 Cyl 2.0L |
