Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76228 |

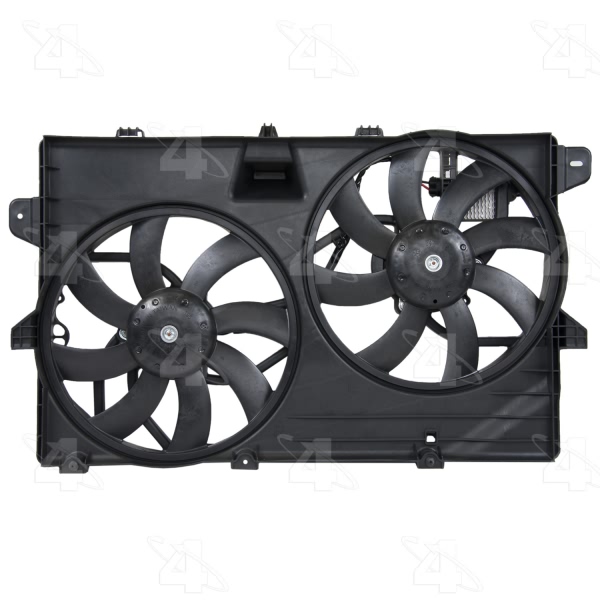

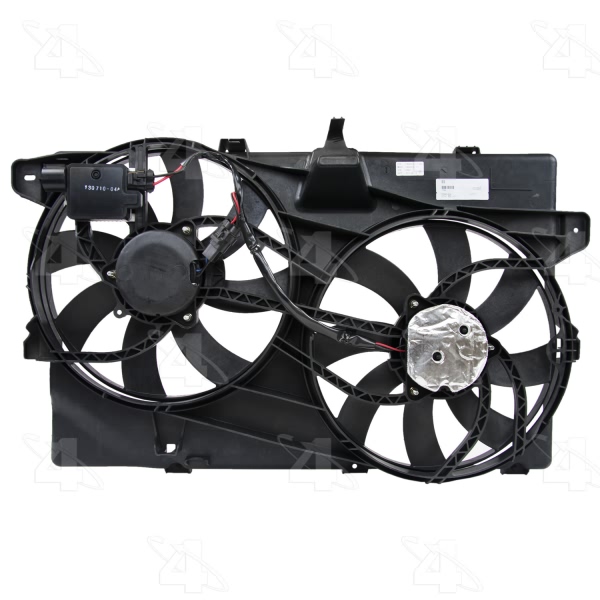

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |

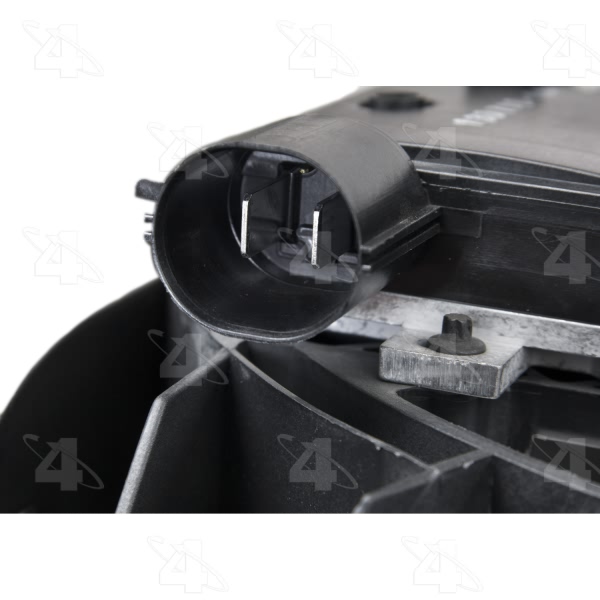

Connector Shape | Oval |
Connector Type | 3 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 19.750 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
UPC | 096361762282 |
OE Part Number | 2811654, 621392, 622040, CF15020, FA70796 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 3 |
Voltage | 12 |
Width IN | 32.750 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2011 Ford Edge | All Trims | All Engines |
2012-2013 Ford Edge | All Trims | 6 Cyl 3.5L |
2012-2013 Ford Edge | All Trims | 6 Cyl 3.7L |
2015 Ford Edge | All Trims | 6 Cyl 3.5L |
2007-2015 Lincoln MKX | All Trims | All Engines |
