Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76187 |

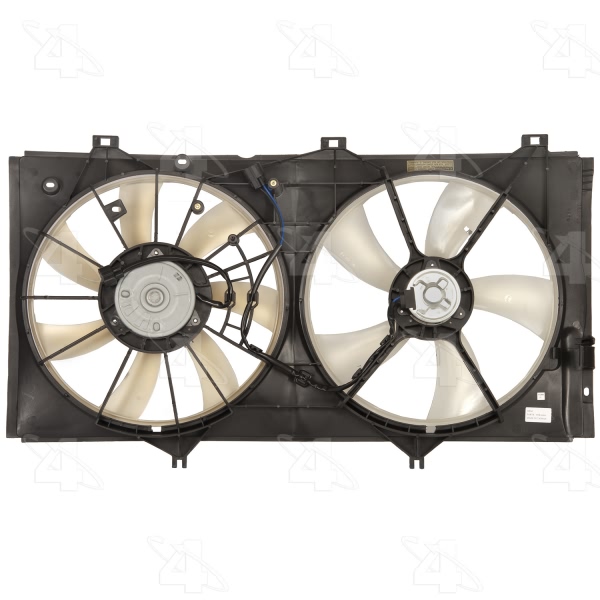

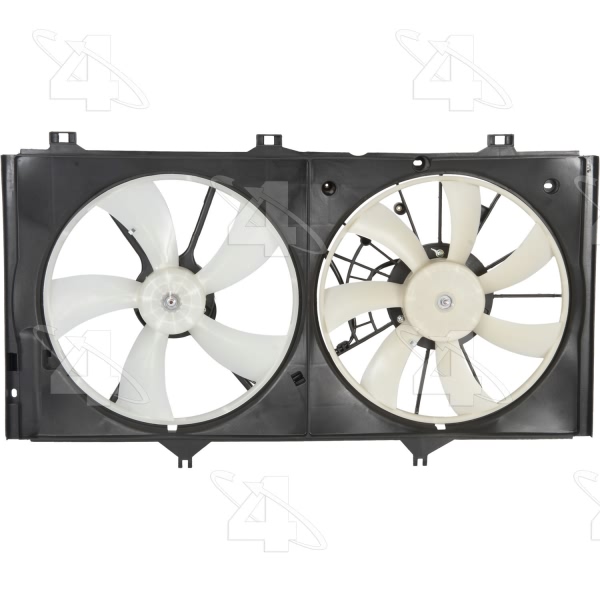

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Male |
Connector qty | 2 |

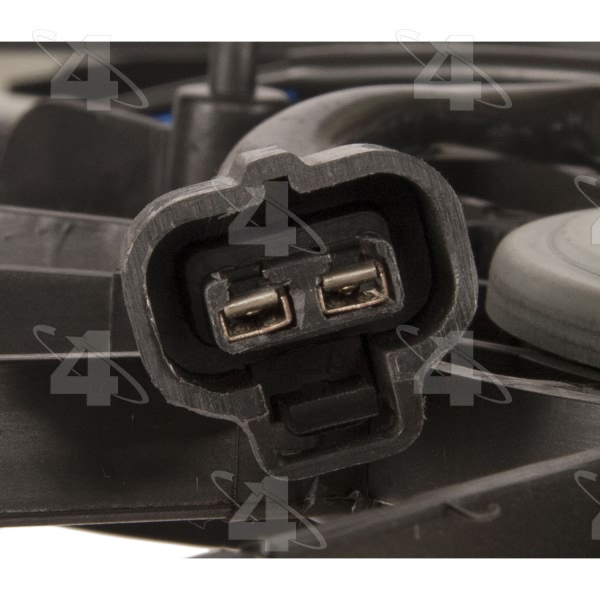

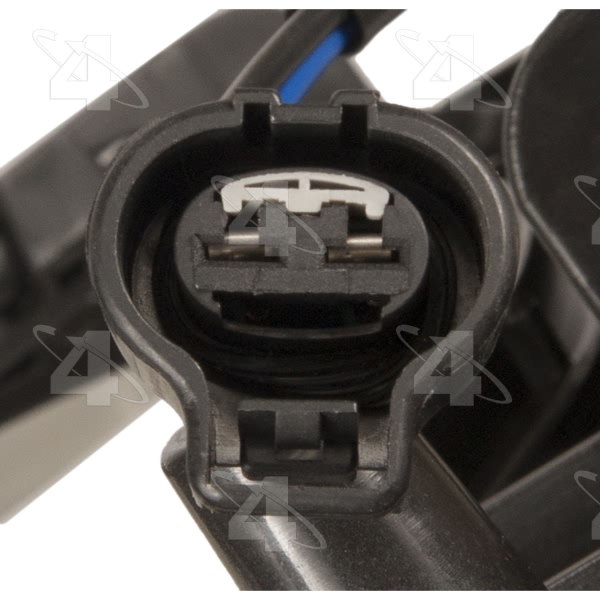

Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 18.500 |
Height MM | 412.750 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 35.750 |
Package Depth MM | 908.050 |
Package Height IN | 7.500 |
Package Height MM | 190.500 |
Package Length IN | 23.125 |
Package Length MM | 587.375 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Female |
Terminal Quantity | 2 |
UPC | 096361761872 |
Voltage | 12 |
Width IN | 32.000 |
Width MM | 812.800 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2010 Lexus ES350 | All Trims | All Engines |
2008-2010 Toyota Camry | All Trims | 6 Cyl 3.5L |
