Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76183 |

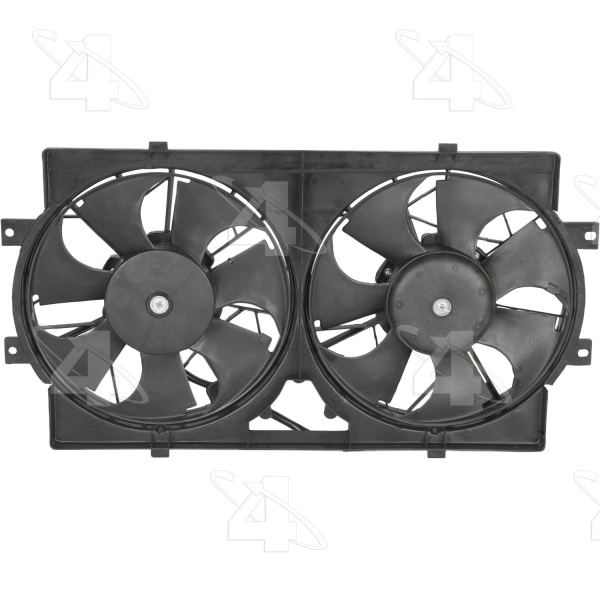

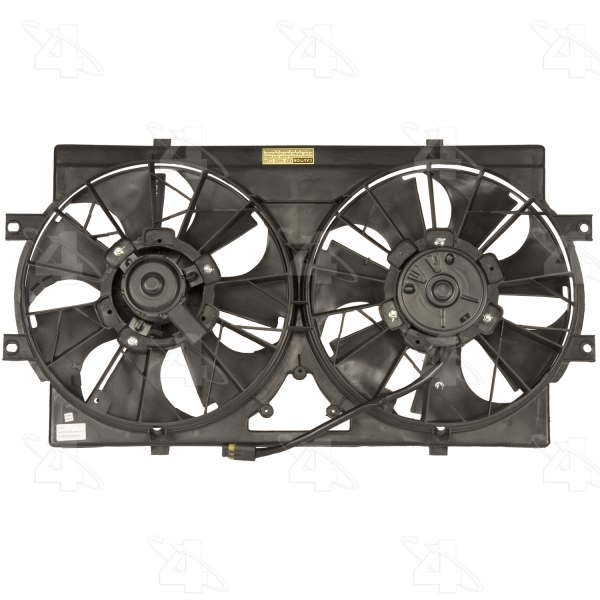

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 2 |

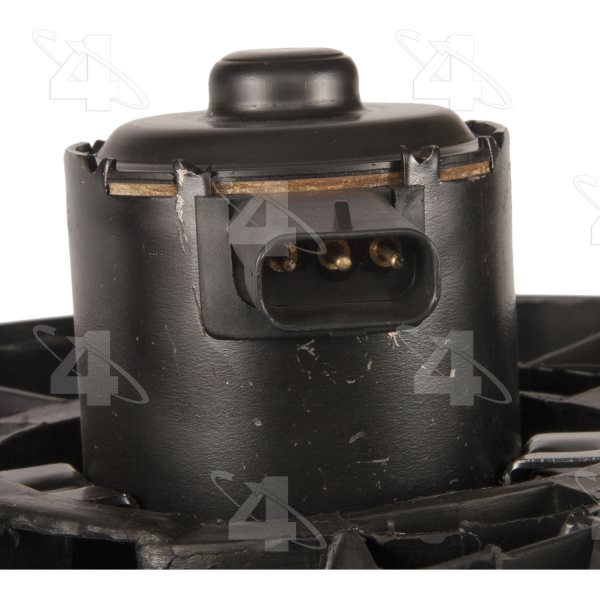

Connector Type | 3 Terminal Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 15.000 |
Height MM | 381.000 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 32.000 |
Package Depth MM | 812.800 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 19.000 |
Package Length MM | 482.600 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 3 |
UPC | 096361761834 |
Voltage | 12 |
Width IN | 24.250 |
Width MM | 711.200 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Chrysler Stratus | All Trims | All Engines |
1995 Dodge Stratus | All Trims | 4 Cyl 2.0L |
1995 Dodge Stratus | All Trims | 4 Cyl 2.4L |
