Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76145 |

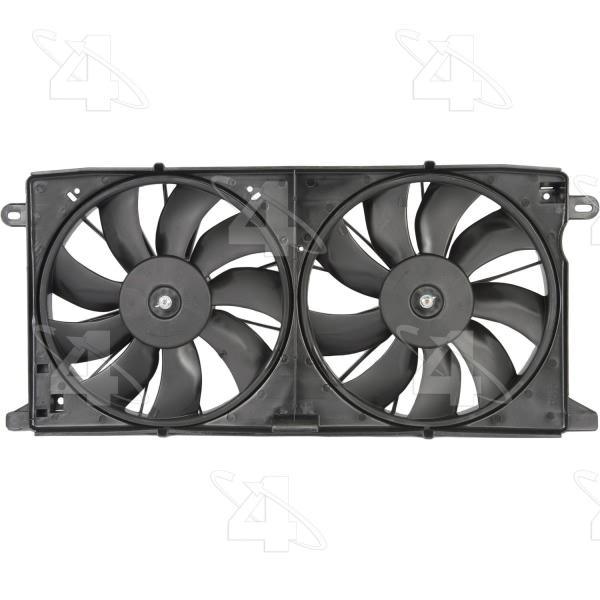

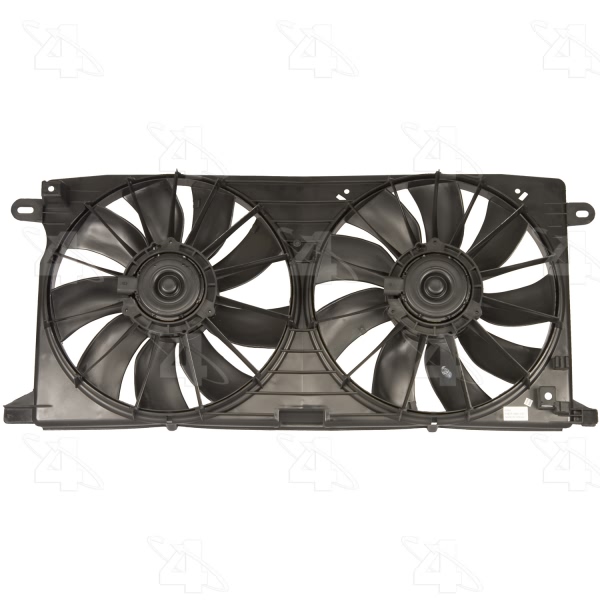

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 2 |
Connector Type | 2 Terminal connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 9 |
Fan 2 Blade Quantity | 9 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 16.000 |
Height MM | 393.700 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 36.000 |
Package Depth MM | 914.400 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 18.750 |
Package Length MM | 476.250 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361761452 |
Voltage | 12 |
Width IN | 31.000 |
Width MM | 787.400 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2005 Cadillac DeVille | All Trims | All Engines |
2001-2002 Oldsmobile Aurora | All Trims | 8 Cyl 4.0L |
2003 Oldsmobile Aurora | All Trims | All Engines |
