Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76144 |

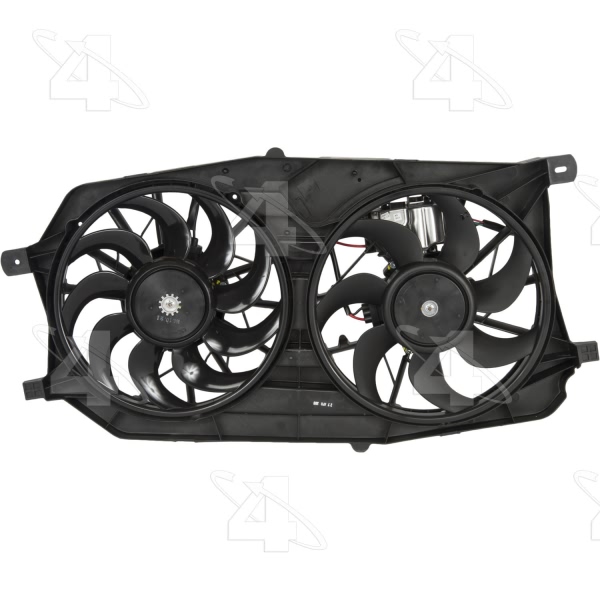

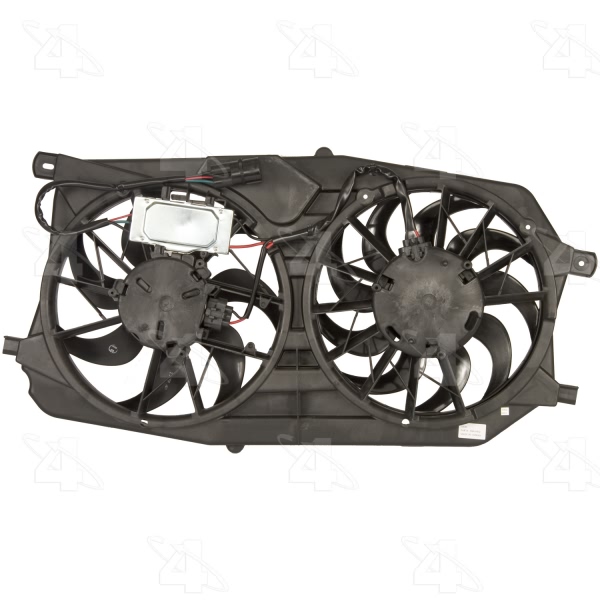

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Shape | Oval |
Connector Type | 3 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 9 |
Fan 2 Blade Quantity | 9 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 16.250 |
Height MM | 387.350 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 33.500 |
Package Depth MM | 850.900 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 19.000 |
Package Length MM | 482.600 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 3 |
UPC | 096361761445 |
Voltage | 12 |
Width IN | 31.000 |
Width MM | 685.800 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2007 Ford Five Hundred | All Trims | All Engines |
2005-2007 Ford Freestyle | All Trims | All Engines |
2005-2007 Mercury Montego | All Trims | All Engines |
