Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76142 |

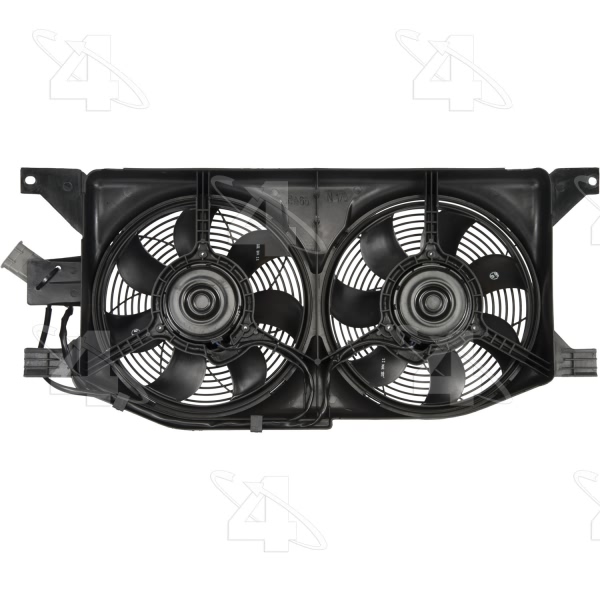

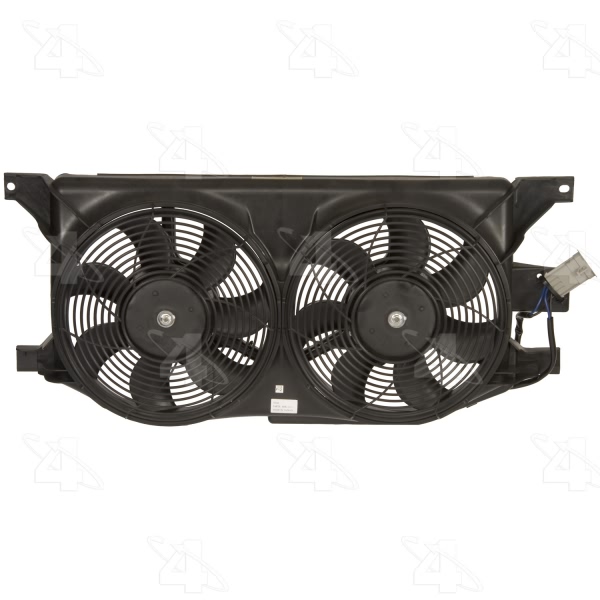

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 1 |
Connector Type | 4 lead wires w/ connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 12.750 |
Height MM | 336.550 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 32.750 |
Package Depth MM | 831.850 |
Package Height IN | 5.500 |
Package Height MM | 139.700 |
Package Length IN | 18.500 |
Package Length MM | 469.900 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 4 |
UPC | 096361761421 |
Voltage | 12 |
Width IN | 28.750 |
Width MM | 596.900 |
Year Make Model | Trim | Engine |
---|---|---|
1998-2003 Mercedes-Benz ML320 | All Trims | All Engines |
2003 Mercedes-Benz ML350 | All Trims | All Engines |
1999-2001 Mercedes-Benz ML430 | All Trims | All Engines |
