Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76049 |

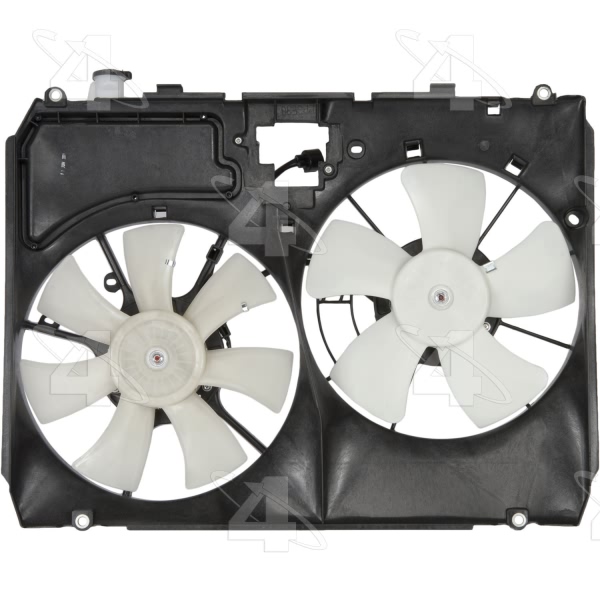

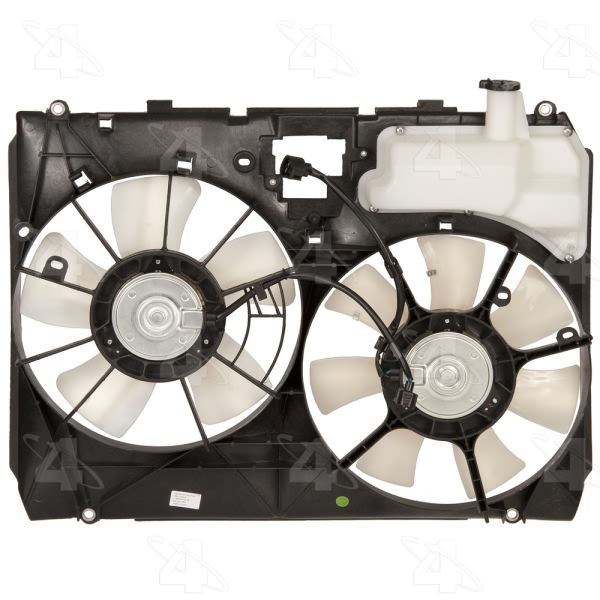

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Male |
Connector qty | 2 |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 24.500 |
Height MM | 508.000 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 32.000 |
Package Depth MM | 812.800 |
Package Height IN | 7.250 |
Package Height MM | 184.150 |
Package Length IN | 23.500 |
Package Length MM | 596.900 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Female |
Terminal Quantity | 2 |
UPC | 096361760493 |
Voltage | 12 |
Width IN | 32.500 |
Width MM | 679.450 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Toyota Sienna | All Trims | All Engines |
