Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76046 |

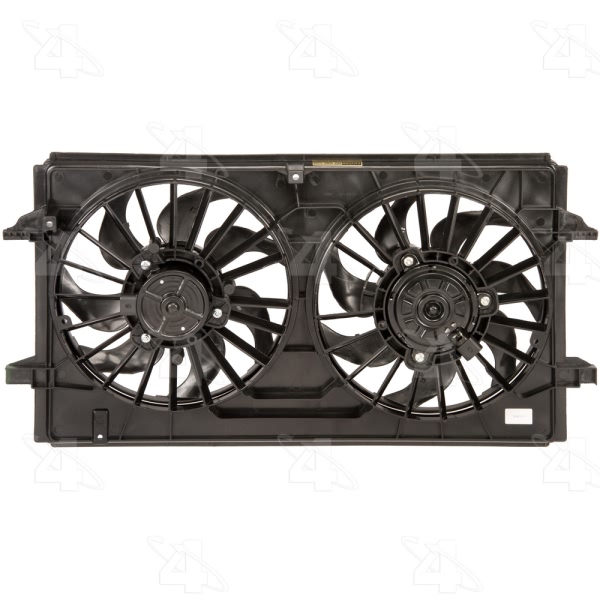

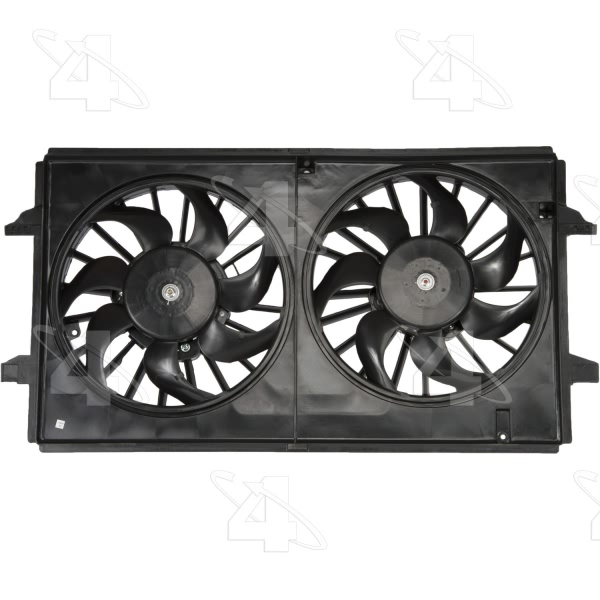

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector Gender | Female |
Connector qty | 2 |
Connector Shape | Rectangle |
Connector Type | 2 Terminal connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 19.750 |
Height MM | 393.700 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 33.500 |
Package Depth MM | 850.900 |
Package Height IN | 6.500 |
Package Height MM | 165.100 |
Package Length IN | 19.000 |
Package Length MM | 482.600 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361760462 |
Voltage | 12 |
Width IN | 33.500 |
Width MM | 698.500 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2007 Chevrolet Malibu | All Trims | 6 Cyl 3.9L |
2007-2008 Chevrolet Malibu | All Trims | 6 Cyl 3.5L |
2008-2009 Chevrolet Malibu | All Trims | 6 Cyl 3.6L |
2006-2009 Pontiac G6 | All Trims | 6 Cyl 3.9L |
2007-2009 Pontiac G6 | All Trims | 6 Cyl 3.6L |
2007-2010 Pontiac G6 | All Trims | 6 Cyl 3.5L |
2007-2008 Saturn Aura | All Trims | 6 Cyl 3.5L |
2007-2009 Saturn Aura | All Trims | 6 Cyl 3.6L |
