Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 76015 |

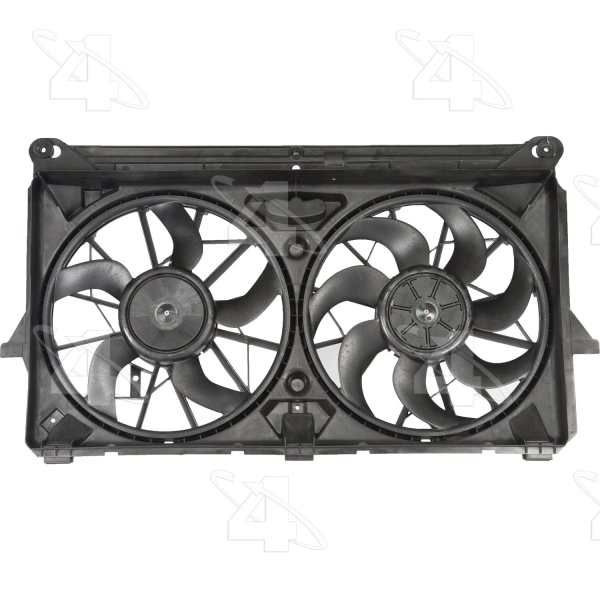

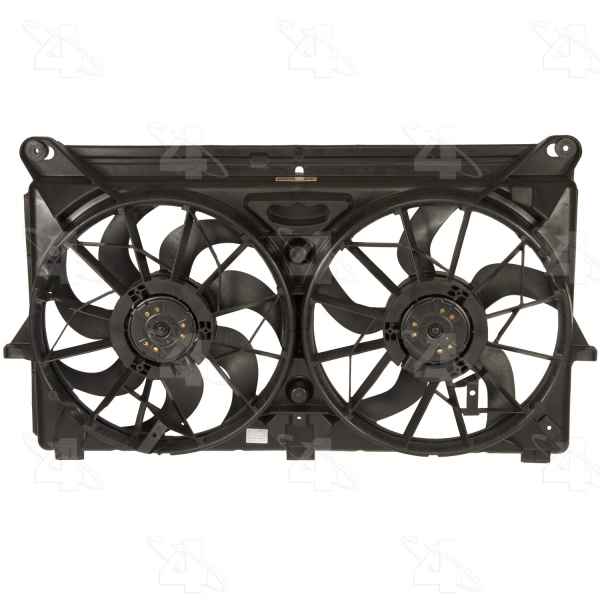

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector B Gender | Female |
Connector B Shape | Oval |
Connector B Type | Spade |
Connector Gender | Female |
Connector qty | 2 |
Connector Shape | Oval |
Connector Type | 2 Terminal connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 19.500 |
Height MM | 520.700 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 41.000 |
Package Depth MM | 1041.400 |
Package Height IN | 7.750 |
Package Height MM | 196.850 |
Package Length IN | 25.500 |
Package Length MM | 647.700 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361760158 |
Voltage | 12 |
Width IN | 33.250 |
Width MM | 889.000 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2008 Cadillac Escalade | All Trims | All Engines |
2007-2008 Cadillac Escalade ESV | All Trims | All Engines |
2007-2008 Cadillac Escalade EXT | All Trims | All Engines |
2007-2009 Chevrolet Avalanche | All Trims | All Engines |
2012-2013 Chevrolet Avalanche | All Trims | All Engines |
2009-2010 Chevrolet Cheyenne | All Trims | All Engines |
2012-2013 Chevrolet Cheyenne | All Trims | All Engines |
2009-2010 Chevrolet Silverado 1500 | All Trims | All Engines |
2012-2013 Chevrolet Silverado 1500 | All Trims | 6 Cyl 4.3L |
2012-2013 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
