Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75653 |

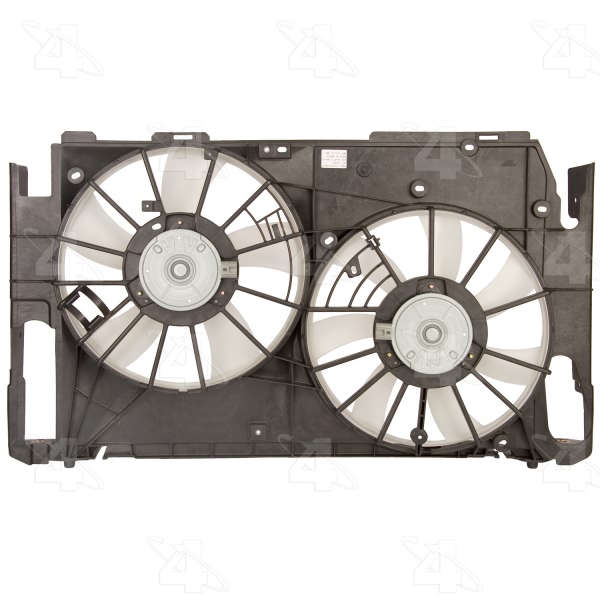

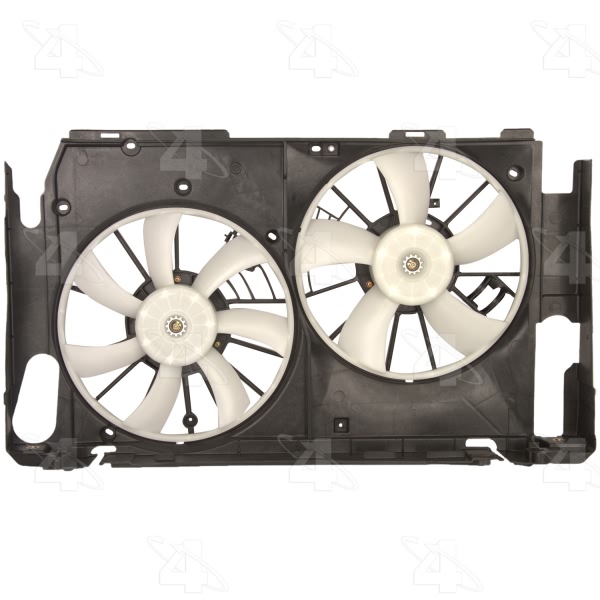

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector B Gender | Male |
Connector B Type | Spade |
Connector Gender | Female or Male |
Connector qty | 2 |
Connector Shape | Oval |
Connector Type | 2 Terminal connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan 2 Blade Quantity | 5 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 25.750 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 2 |
UPC | 096361756533 |
Voltage | 12 |
Width IN | 35.500 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2008 Toyota RAV4 | All Trims | 4 Cyl 2.4L |
2009 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
2011-2012 Toyota RAV4 | All Trims | 4 Cyl 2.5L |
