Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75615 |

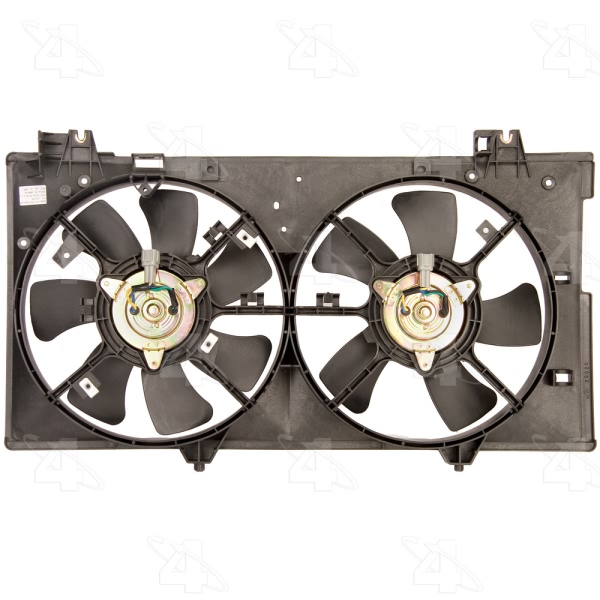

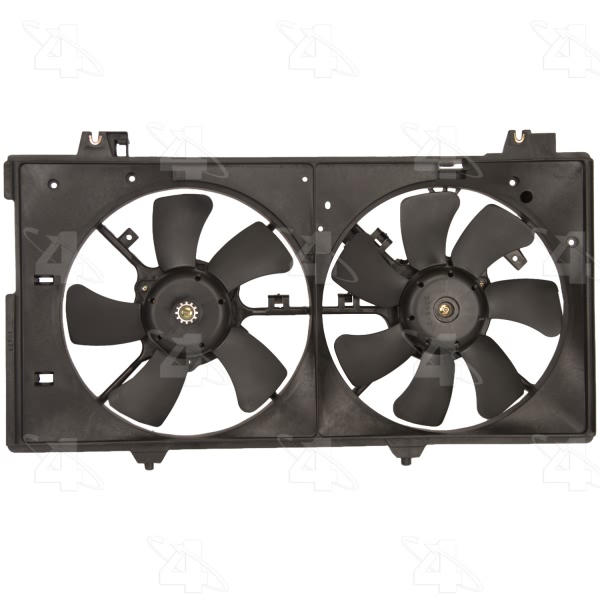

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector B Gender | Male |
Connector B Type | Spade |
Connector Gender | Female or Male |
Connector qty | 2 |
Connector Shape | Square |
Connector Type | 2 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 5 |
Fan 2 Blade Quantity | 5 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 22.500 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 6.000 |
Package Depth MM | 152.400 |
Package Height IN | 31.000 |
Package Height MM | 787.400 |
Package Length IN | 20.500 |
Package Length MM | 520.700 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 4 |
UPC | 096361756151 |
Voltage | 12 |
Width IN | 33.500 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2008 Mazda 6 | All Trims | 4 Cyl 2.3L |
