Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 75612 |

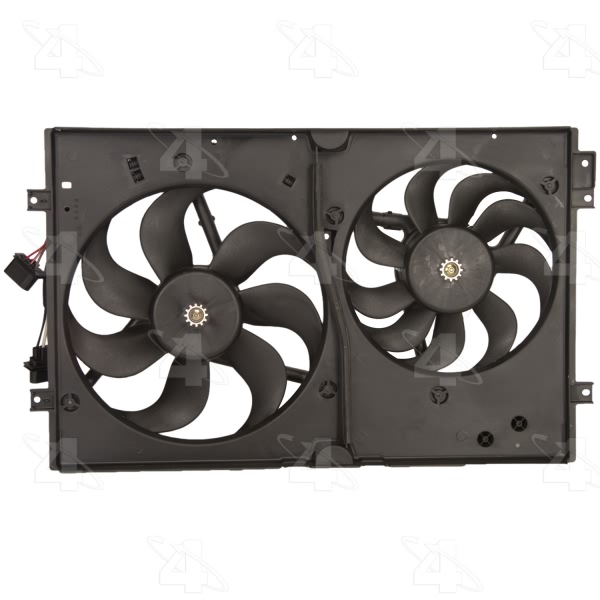

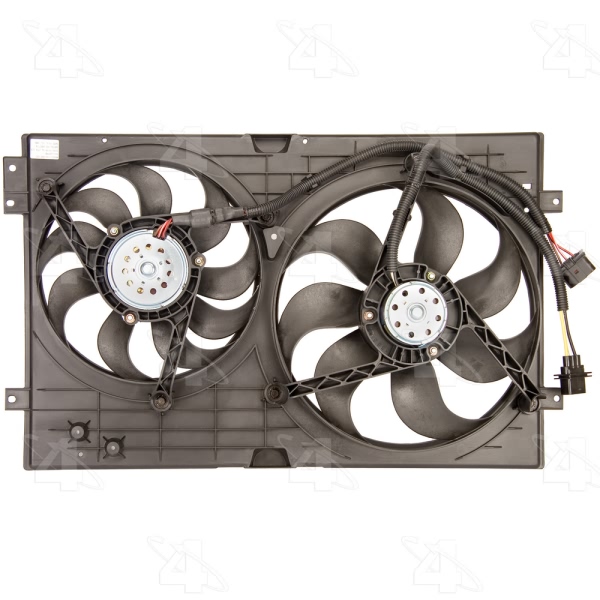

Part Description | Dual Radiator And Condenser Fan Assembly |
Blade Material | Plastic |
Blade Material B | Plastic |
Blade Type | Rigid |
Connector B Gender | Male |
Connector B Type | Spade |
Connector Gender | Female |
Connector qty | 2 |
Connector Shape | Oval |
Connector Type | 3 wire lead w/ Connector |
Electrical or Mechanical | Electrical |
Fan 1 Blade Quantity | 7 |
Fan 2 Blade Quantity | 7 |
Fan Clutch Mounted | Fan clutch not mounted within the assembly. |
Fan Quantity | 2 |
Height IN | 19.750 |
Housing Finish | Black |
Hub Bolt Hole Quantity | OE Mount |
Material | Plastic / Metal |
Motor Type A | Radiator Fan Assembly |
Mount Type | OE mount |
Mounting Hardware | Not Included |
O.E. Replacement | Yes |
Package Depth IN | 7.000 |
Package Depth MM | 177.800 |
Package Height IN | 31.000 |
Package Height MM | 787.400 |
Package Length IN | 20.000 |
Package Length MM | 508.000 |
Performance Rated | Yes |
Shroud Included | Included |
Shroud Material | Plastic |
Style | Radiator Fan, Condenser Fan |
Terminal Gender | Male |
Terminal Quantity | 3 |
UPC | 096361756120 |
Voltage | 12 |
Width IN | 32.000 |
Year Make Model | Trim | Engine |
---|---|---|
2000-2006 Audi TT | All Trims | All Engines |
2000-2003 Audi TT Quattro | All Trims | All Engines |
2004-2006 Audi TT Quattro | All Trims | 4 Cyl 1.8L |
1999-2005 Volkswagen Beetle | All Trims | 4 Cyl 1.8L |
2006 Volkswagen Beetle | All Trims | 4 Cyl 1.9L |
2006 Volkswagen GTI | All Trims | All Engines |
1999-2006 Volkswagen Golf | All Trims | 4 Cyl 1.9L |
1999-2006 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2000-2002 Volkswagen Golf | All Trims | 6 Cyl 2.8L |
2000-2006 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
