Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83236 |

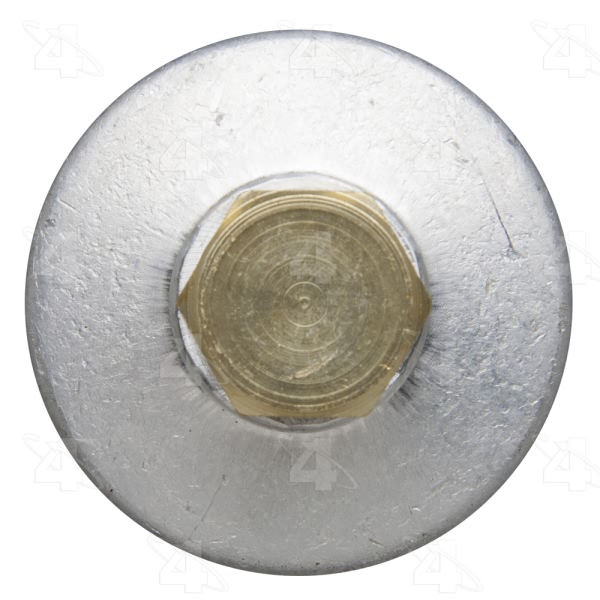

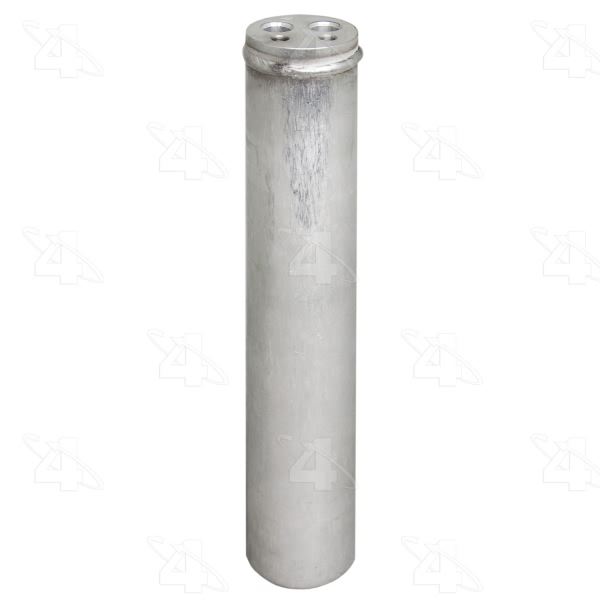

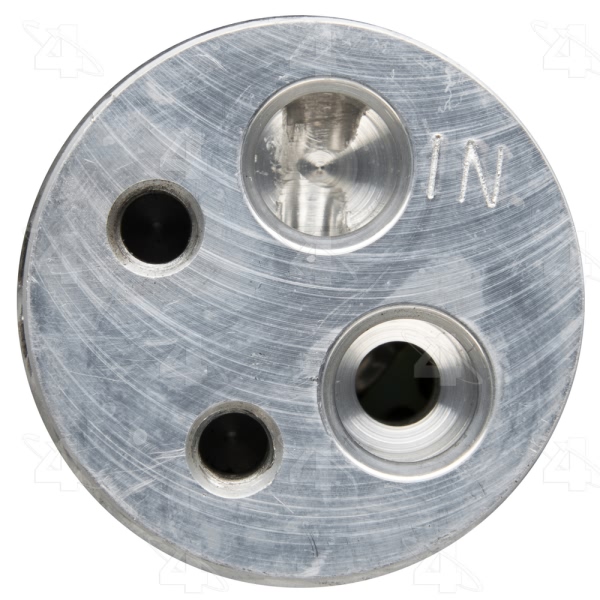

Part Description | Aluminum Filter Drier w/ Pad Mount |
Body Diameter | 1.500 |
Body Length | 11.000 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 38.100 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .402 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 3/8 |
Length MM | 279.400 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24611] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24608] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 3/8 |
Outlet IN | .402 |
Overall Depth IN | 11.000 |
Overall Depth MM | 279.400 |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/ Switch Port |
UPC | 096361832367 |
Year Make Model | Trim | Engine |
---|---|---|
2003 Suzuki XL-7 | All Trims | All Engines |
