Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83209 |

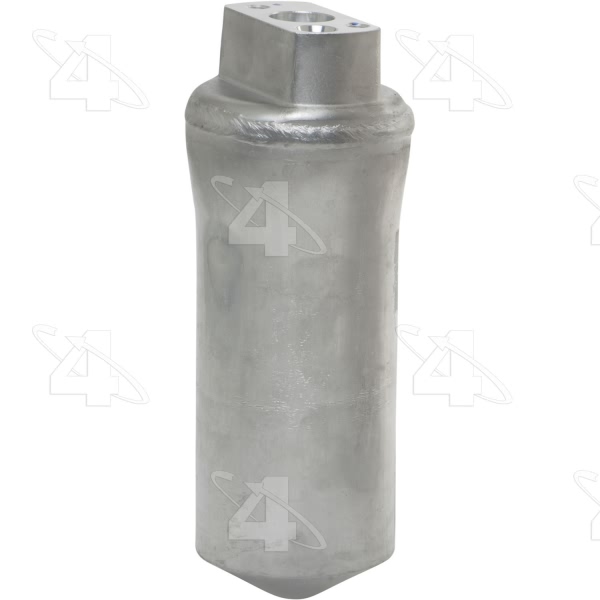

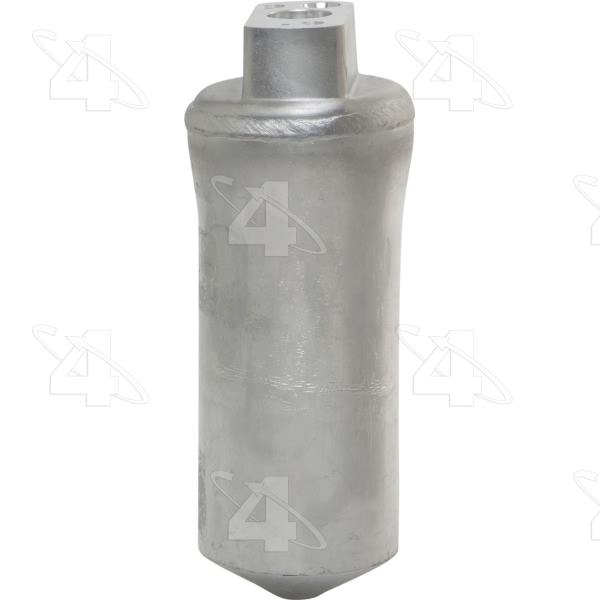

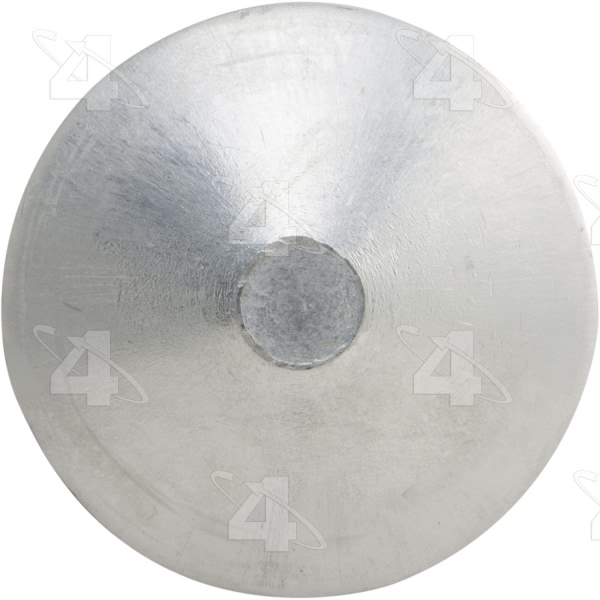

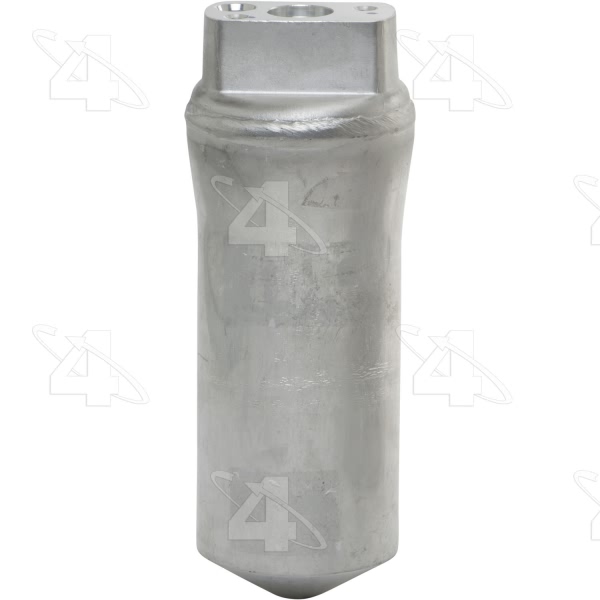

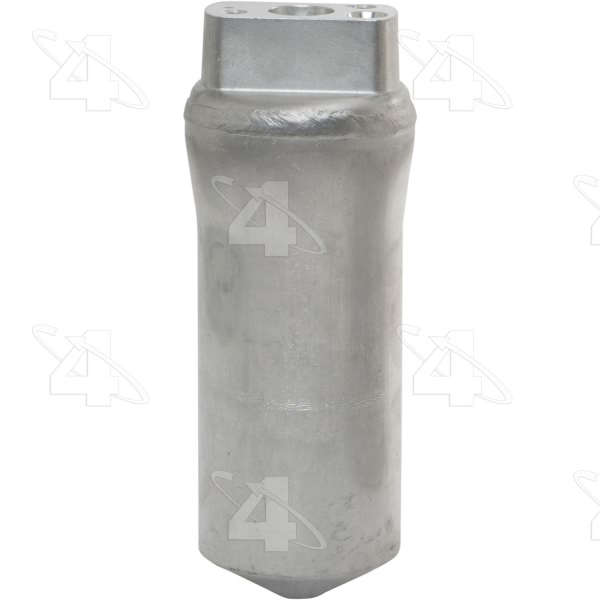

Part Description | Aluminum Filter Drier w/ Pad Mount |
Body Diameter | 2.500 |
Body Length | 7.000 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .402 |
Inlet Fraction | 3/8 |
Length MM | 171.450 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24401] / Slim Line Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24611] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 3/4 |
Outlet IN | 0.34 |
Overall Depth IN | 7.000 |
Overall Depth MM | 171.450 |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361832091 |
Year Make Model | Trim | Engine |
---|---|---|
2004-2008 Chevrolet Colorado | All Trims | All Engines |
2009-2012 Chevrolet Colorado | All Trims | 4 Cyl 2.9L |
2009-2012 Chevrolet Colorado | All Trims | 5 Cyl 3.7L |
2004-2008 GMC Canyon | All Trims | All Engines |
2009-2012 GMC Canyon | All Trims | 4 Cyl 2.9L |
2009-2012 GMC Canyon | All Trims | 5 Cyl 3.7L |
2006 Isuzu i-280 | All Trims | All Engines |
2007-2008 Isuzu i-290 | All Trims | All Engines |
2006 Isuzu i-350 | All Trims | All Engines |
2007-2008 Isuzu i-370 | All Trims | All Engines |
