Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83118 |

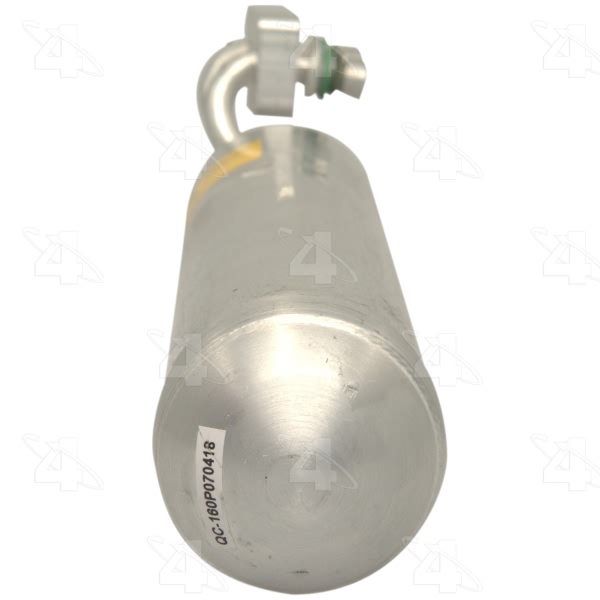

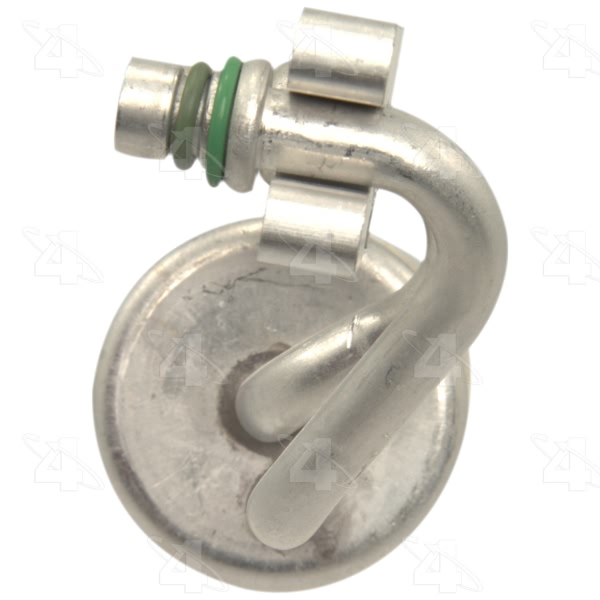

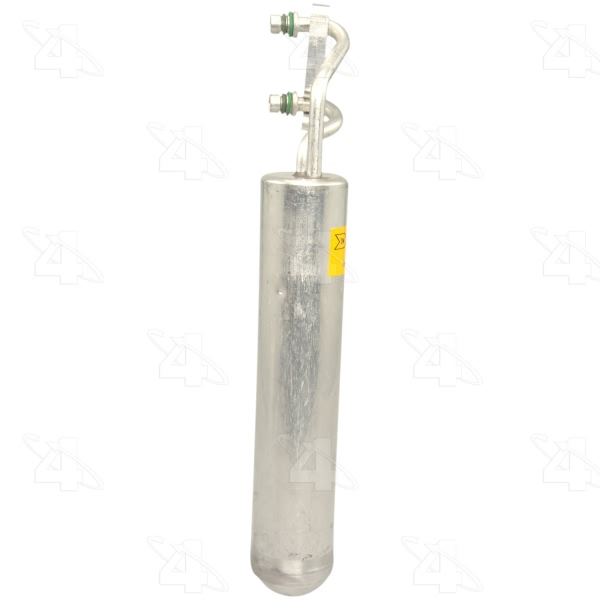

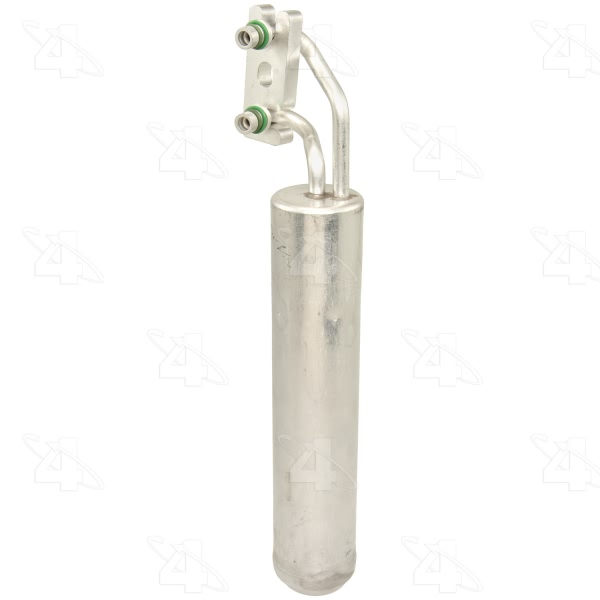

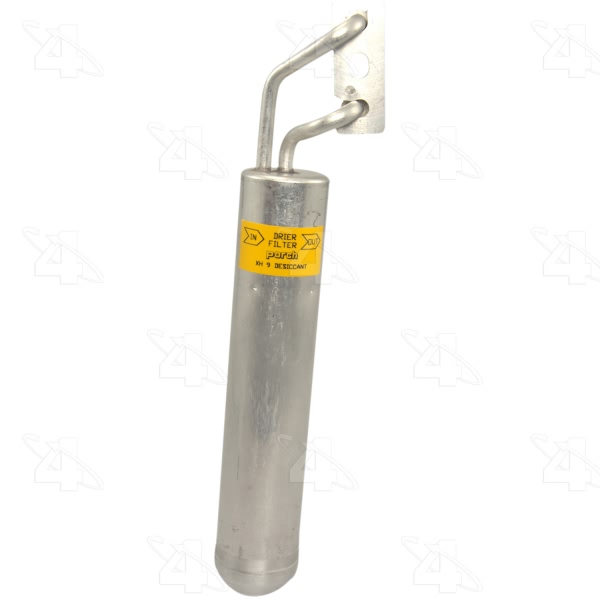

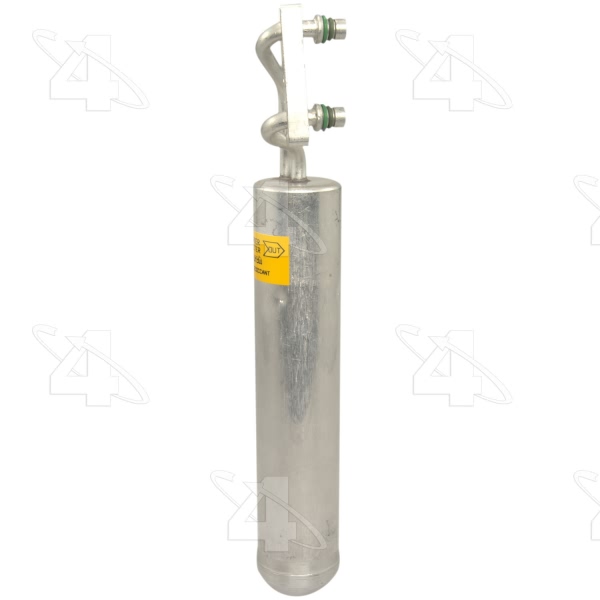

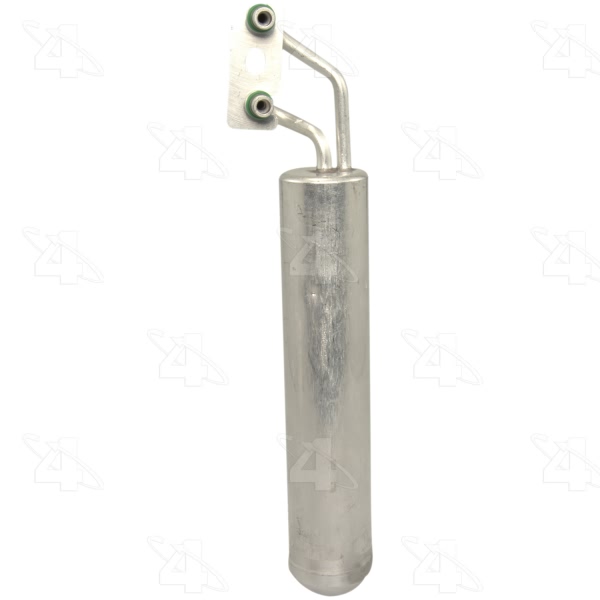

Part Description | Aluminum Filter Drier w/ Pad Mount |
Body Diameter | 2.750 |
Body Length | 9.000 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 69.850 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .397 |
Inlet Fraction | 3/8 |
Length MM | 228.600 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24649] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [23678] / Green Round O-Ring |
O-Ring B Quantity | 2 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 3/8 |
Outlet IN | .397 |
Overall Depth IN | 9.000 |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361831186 |
Year Make Model | Trim | Engine |
---|---|---|
2005-2011 Chrysler 300 | All Trims | All Engines |
2008 Dodge Challenger | All Trims | All Engines |
2006-2010 Dodge Charger | All Trims | All Engines |
2005-2008 Dodge Magnum | All Trims | All Engines |
