Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83105 |

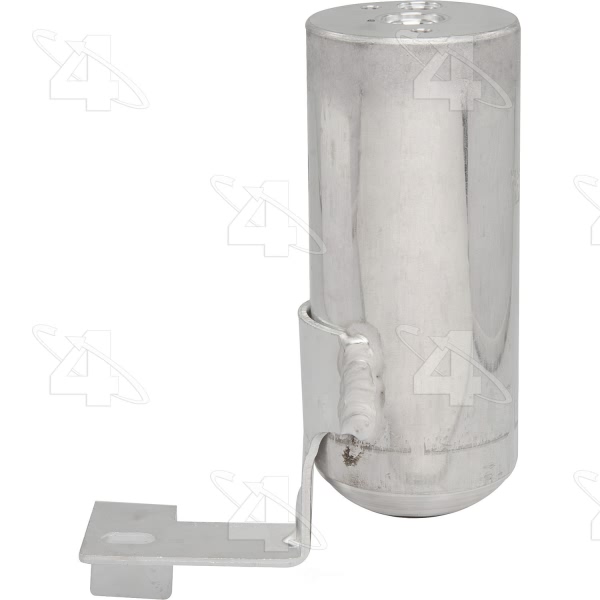

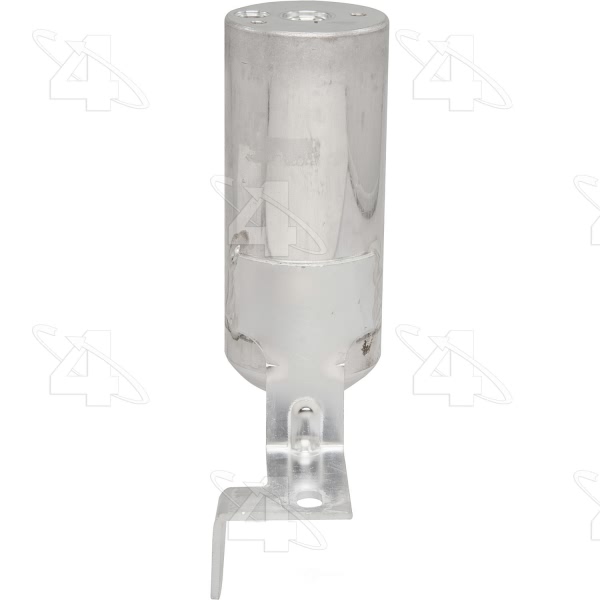

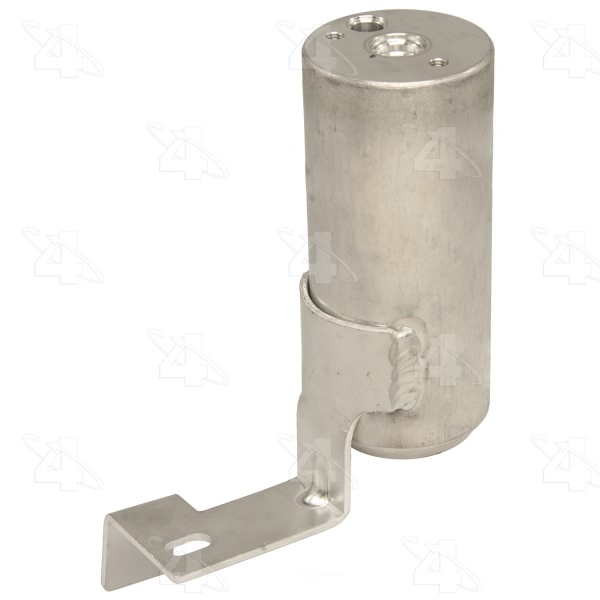

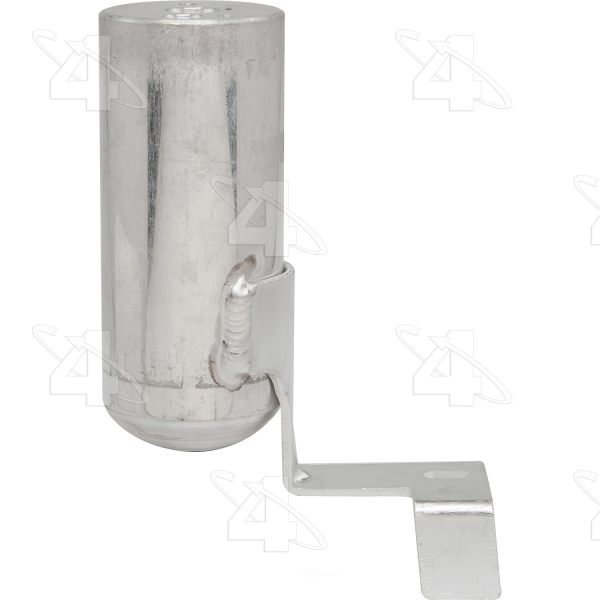

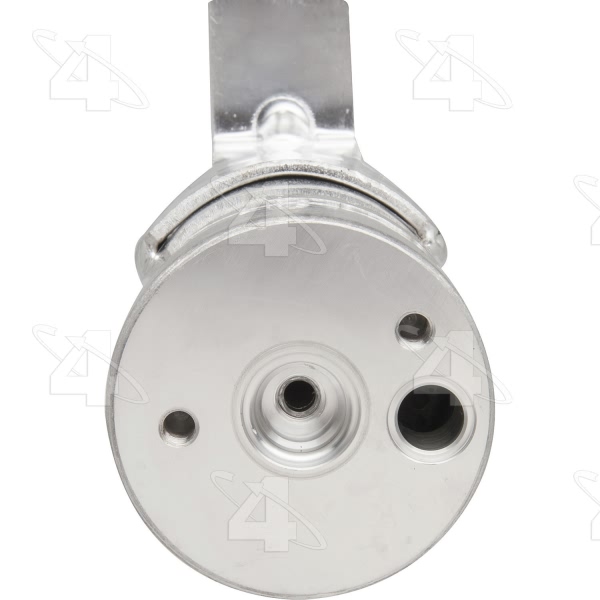

Part Description | Aluminum Filter Drier w/ Pad Mount |
Body Diameter | 2.375 |
Body Length | 6.000 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .46 |
Inlet Fraction | 11/16 |
Length MM | 152.400 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24668] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24608] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 1/2 |
Outlet IN | .402 |
Overall Depth IN | 6.000 |
Pad Mount | w/ Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/ Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361831056 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2011 Chrysler Town & Country | All Trims | All Engines |
2008 Chrysler Voyager | All Trims | All Engines |
2008-2011 Dodge Grand Caravan | All Trims | All Engines |
2009-2011 Volkswagen Routan | All Trims | All Engines |
