Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83160 |

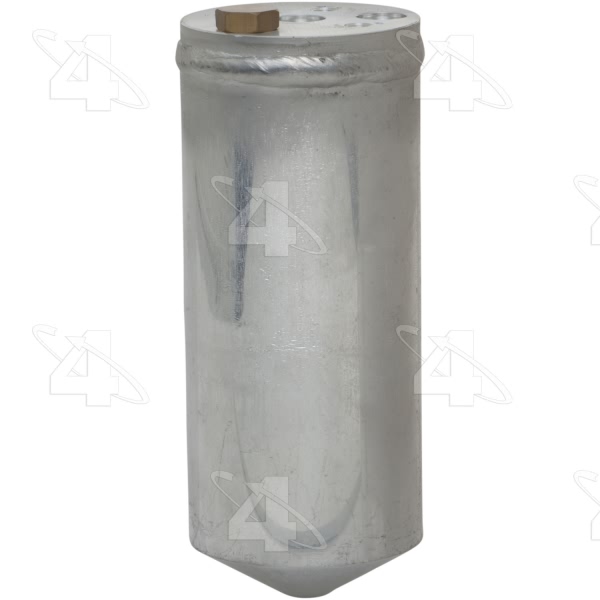

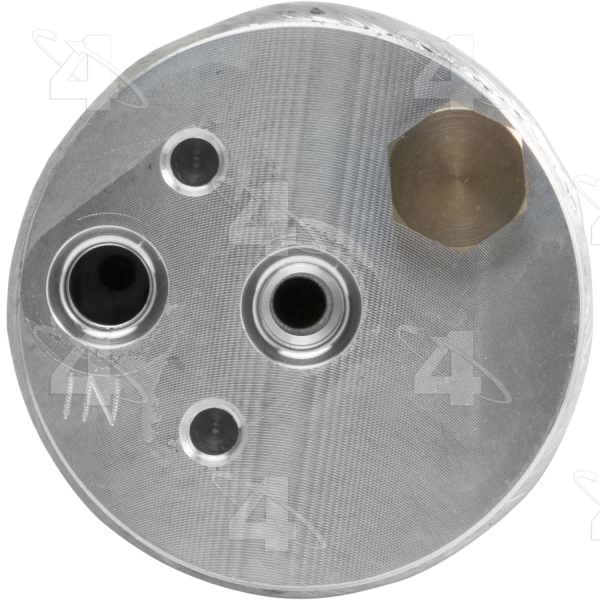

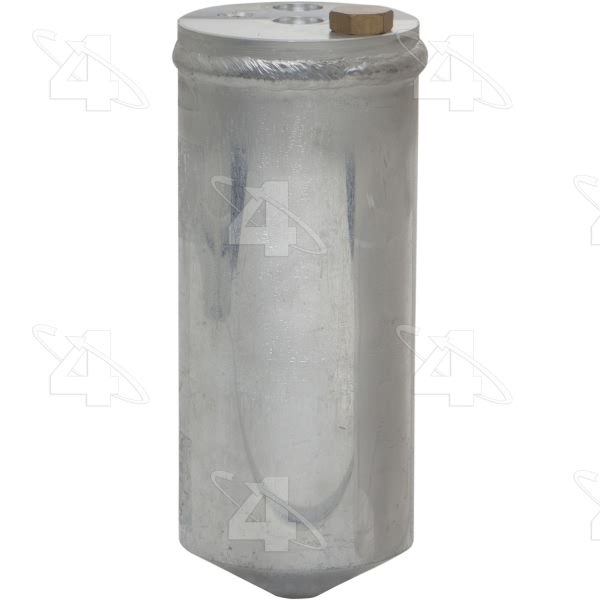

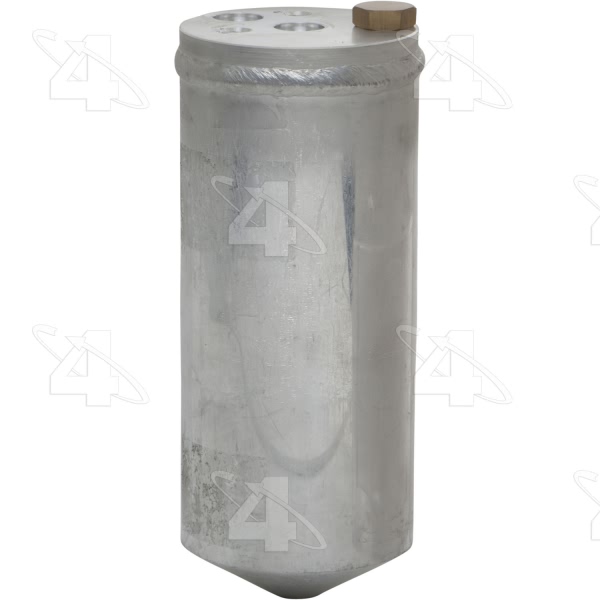

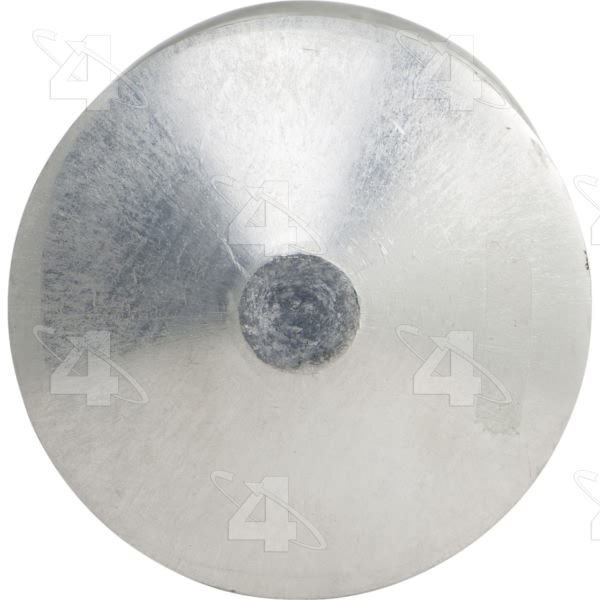

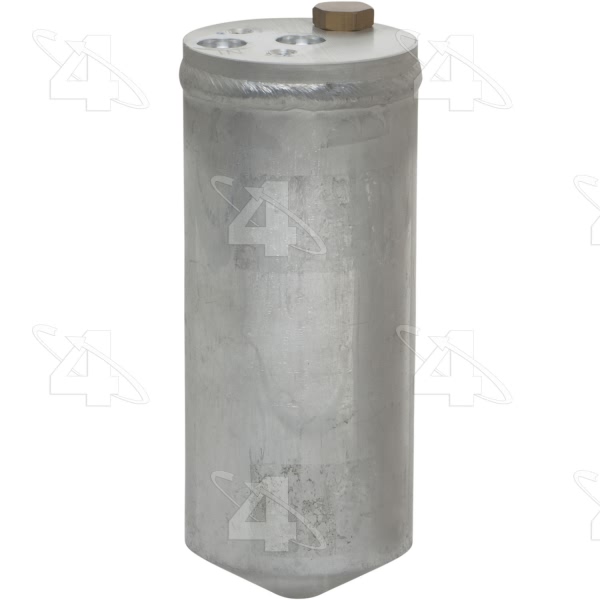

Part Description | Aluminum Filter Drier w/o Pad Mount |
Body Diameter | 2.375 |
Body Length | 5.250 |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Dia. MM | 60.325 |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | 0.500 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 1/2 |
Inlet IN | 0.500 |
Inlet MM | 12.700 |
Length MM | 133.350 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24646] / Green Round O/Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24650] / Green O-Ring |
O-Ring B Quantity | 1 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 1/2 |
Outlet IN | 0.500 |
Outlet MM | 12.700 |
Overall Depth IN | 5.250 |
Overall Depth MM | 133.350 |
Pad Mount | w/o Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Style | Aluminum Filter Drier w/o Pad Mount |
Switch Port | w/ Switch Port |
UPC | 096361831605 |
Year Make Model | Trim | Engine |
---|---|---|
2001-2002 Kia Sportage | All Trims | All Engines |
