Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83156 |

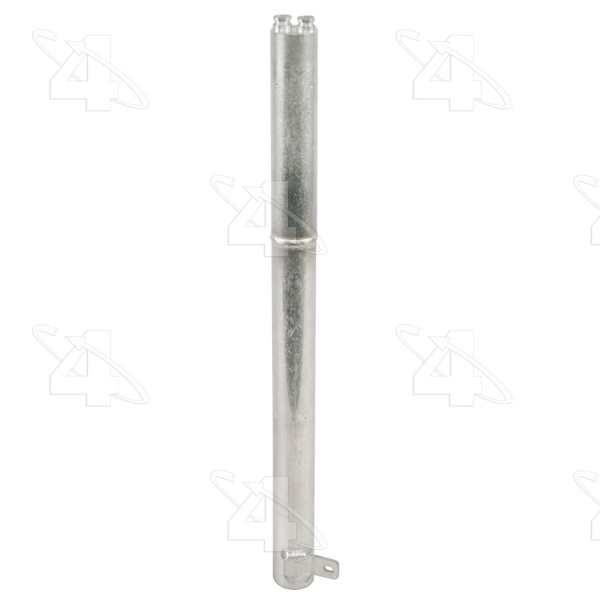

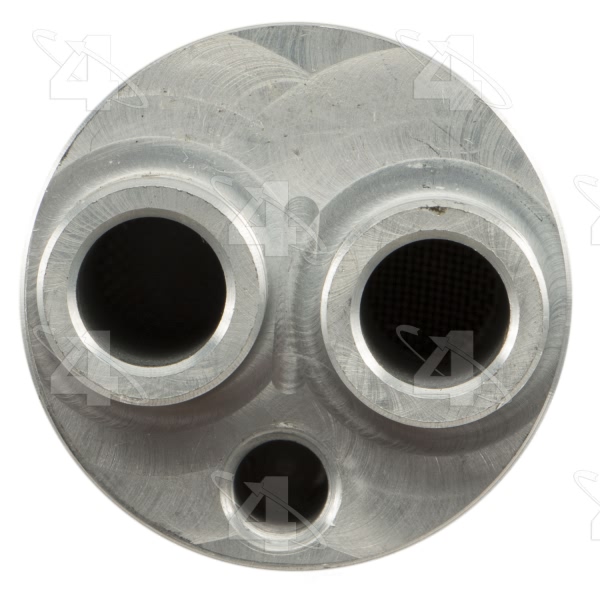

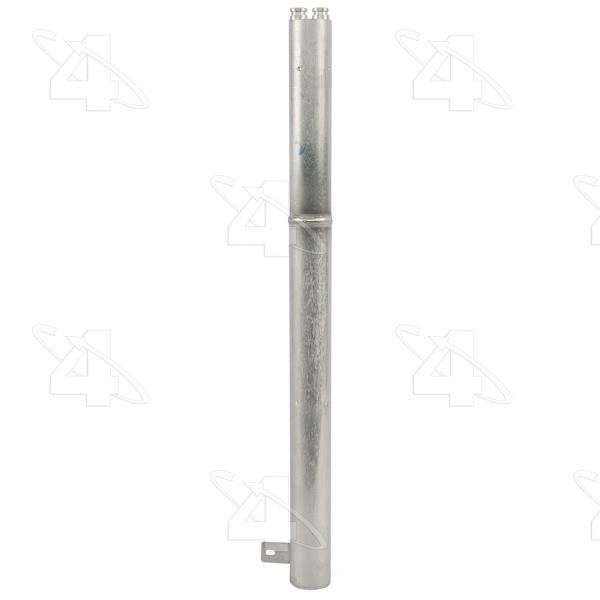

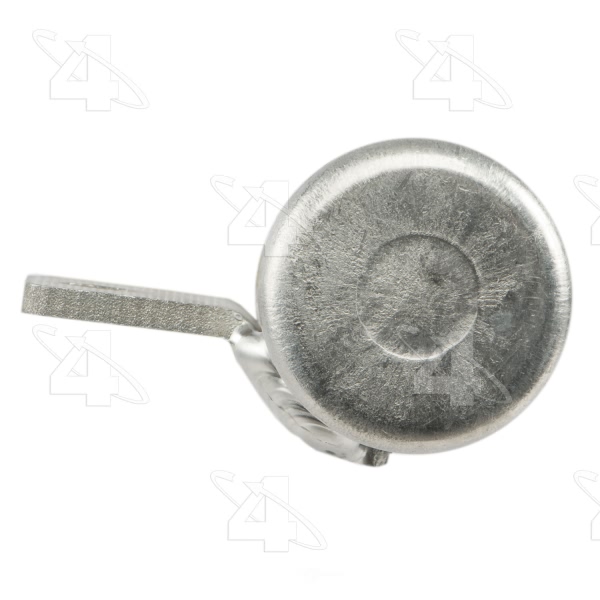

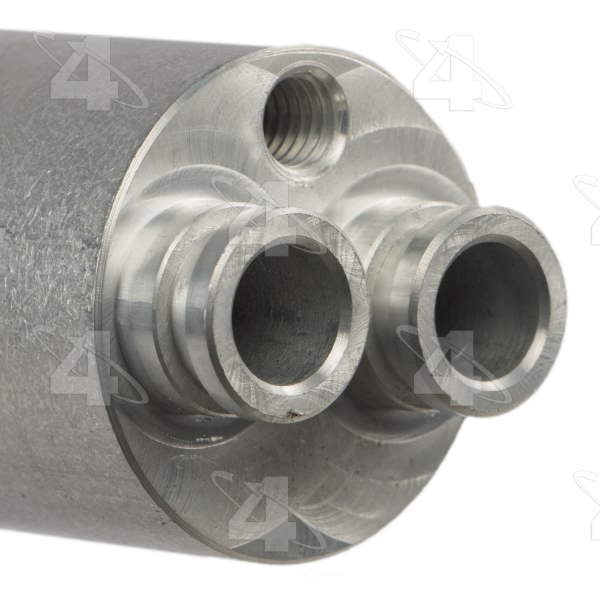

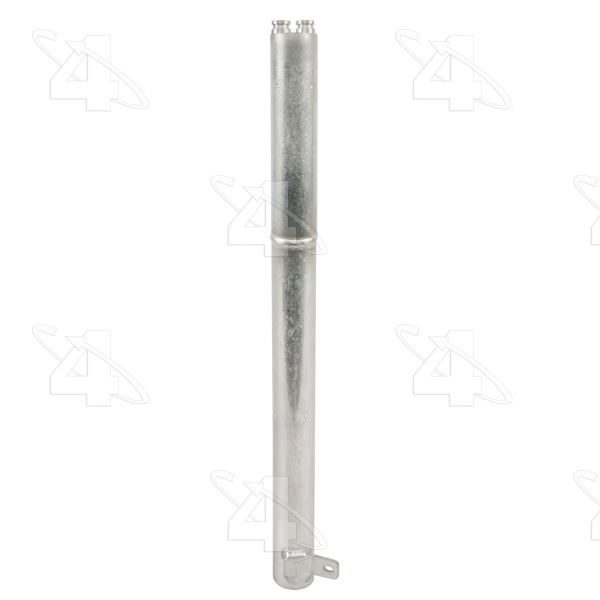

Part Description | Aluminum Filter Drier w/o Pad Mount |
Body Diameter | 1.250 |
Body Length | 15.620 |
Bracket | w/ Bracket |
Connector B Type | Pad Mount |
Connector Type | Pad Mount |
Desiccant | Yes |
Desiccant Replaceable | Not Replaceable |
Fuse Plug | No |
Gasket / Seals | Included |
In Line Filter Material | Desiccant |
In Line Filter Outlet Fitting Type | Pad Mount |
Inlet Filter Fitting Type | Pad Mount |
Inlet Fitting Diameter | .482 |
Inlet Fitting Type | Pad Mount |
Inlet Fraction | 1/2 |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Moisture Indicator Window | No |
Mounting Bracket Included | Hardware not included |
O-Ring A Number/Desc | [24650] / Green O-Ring |
O-Ring A Quantity | 2 |
Outlet Fitting Type | Pad Mount |
Outlet Fraction | 1/2 |
Outlet IN | .482 |
Overall Depth IN | 15.62 |
Overall Depth MM | 396.748 |
P. R. V. | No |
Pad Mount | w/o Pad Mount |
Service Port | w/o Service Port |
Sight Glass | No |
Stud | No |
Style | Aluminum Filter Drier w/o Pad Mount |
Switch Port | w/o Switch Port |
UPC | 096361831568 |
Year Make Model | Trim | Engine |
---|---|---|
2010-2016 Cadillac SRX | All Trims | All Engines |
