Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83294 |

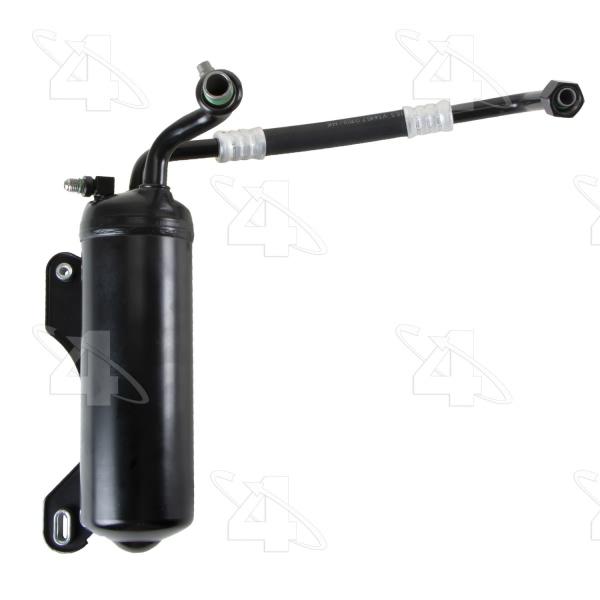

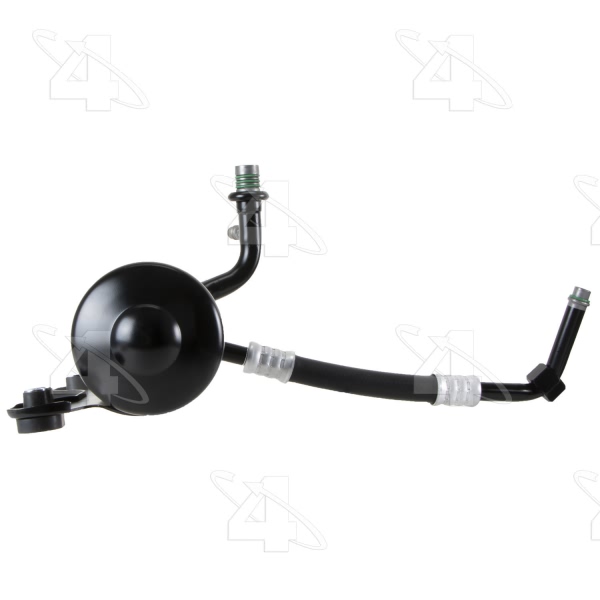

Part Description | Accumulator w/ Hose |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 11 |
Dia. MM | 89.000 |
Inlet Fitting Gender | Female |
Inlet Fraction | 5/8 |
Inlet IN | 0.625 |
Inlet MM | 15.875 |
Inlet Type | Female O-Ring |
Length MM | 280 |
Manifold | w/o Manifold |
Material | Steel |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/ Bracket |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24650] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24222] / Spring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24672] / Green O-Ring |
O-Ring C Quantity | 3 |
O-Ring D Number/Desc | [24610] / Green O-Ring |
O-Ring D Quantity | 1 |
Outlet Fraction | 3/4 |
Outlet IN | 0.750 |
Outlet MM | 19.050 |
Outlet Size | No. 12 |
Outlet Type | Male Springlock |

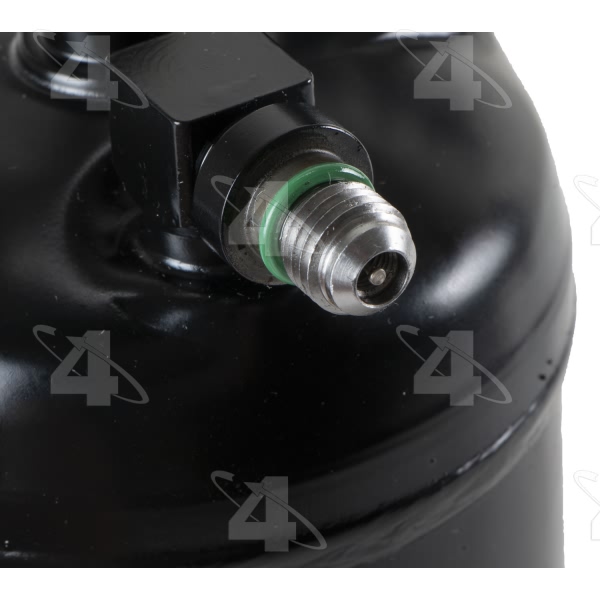

Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Type | R134-A Quick Disconnect |
Style | Suction Side |
Suction End Type | Female O-Ring |
Sve Port Low Side | Low Side |
Switch Gender | Male |
Switch Port | w/ Switch Port |
Switch Port Quantity | 1 |
UPC | 096361094444 |
Year Make Model | Trim | Engine |
---|---|---|
2007-2014 Ford E-150 | All Trims | All Engines |
2007-2008 Ford E-150 Econoline | All Trims | All Engines |
2007-2014 Ford E-250 | All Trims | All Engines |
2007-2008 Ford E-350 Econoline | All Trims | All Engines |
2007-2010 Ford E-350 Super Duty | All Trims | 10 Cyl 6.8L |
2007-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 5.4L |
2007-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 6.0L |
2011-2018 Ford E-350 Super Duty | All Trims | All Engines |
2010-2014 Ford Econoline Van | All Trims | All Engines |
2010-2014 Ford Econoline Wagon | All Trims | All Engines |
