Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 83092 |

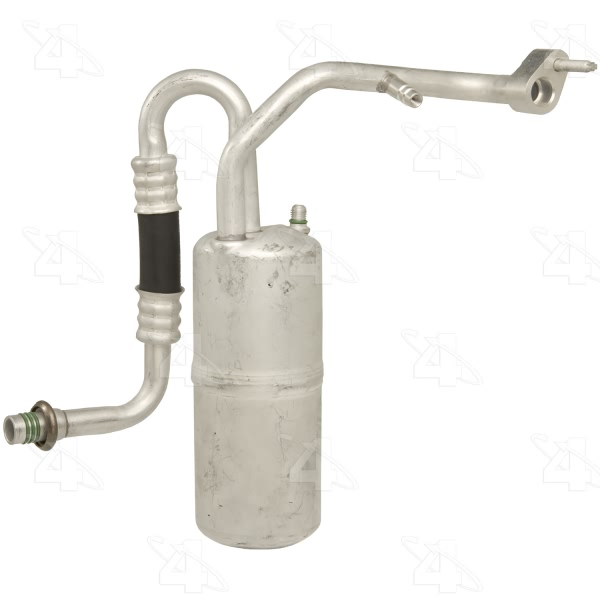

Part Description | Accumulator w/ Hose |
Accumulator Body Diameter | 3.500 |
Accumulator Body Length | 9.000 |
Dia. MM | 88.900 |
Inlet Fraction | 3/4 |
Inlet IN | 0.750 |
Inlet MM | 19.050 |
Inlet Type | P-Nut Fitting |
Length MM | 228.600 |
Manifold | w/o Manifold |
Material | Aluminum |
Meets / Exceeds OEM | Yes |
Mounting Bracket Included | w/o Bracket |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24650] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24222] / Spring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24672] / Green O-Ring |
O-Ring C Quantity | 3 |
O-Ring D Quantity | 1 |
Outlet Fraction | 3/4 |
Outlet IN | 0.750 |
Outlet MM | 19.050 |
Outlet Type | Male Springlock |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Type | Quick Disconnect |
Style | Suction Side |
Switch Port | w/ Switch Port |
Switch Port Dia. IN | 0.472 |
Switch Port Dia.MM | 12.000 |
UPC | 096361830929 |
Year Make Model | Trim | Engine |
---|---|---|
2008-2010 Ford F-250 Super Duty | All Trims | 10 Cyl 6.8L |
2008-2010 Ford F-250 Super Duty | All Trims | 8 Cyl 5.4L |
2008-2009 Ford F-350 | All Trims | All Engines |
2008-2010 Ford F-350 Super Duty | All Trims | 10 Cyl 6.8L |
2008-2010 Ford F-350 Super Duty | All Trims | 8 Cyl 5.4L |
