Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56977 |

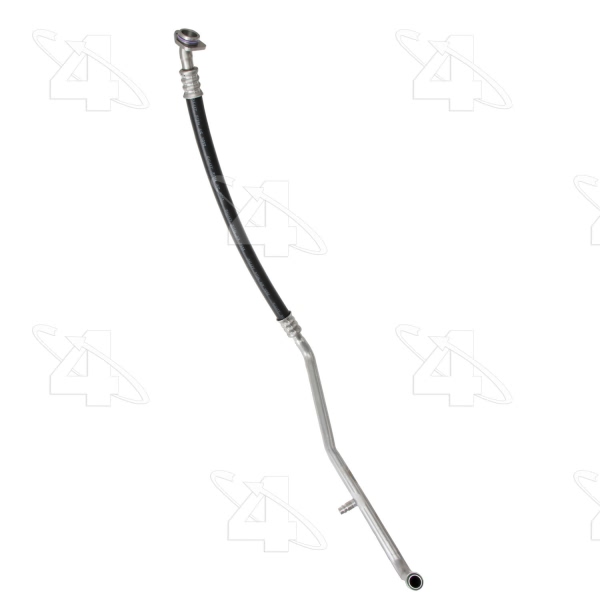

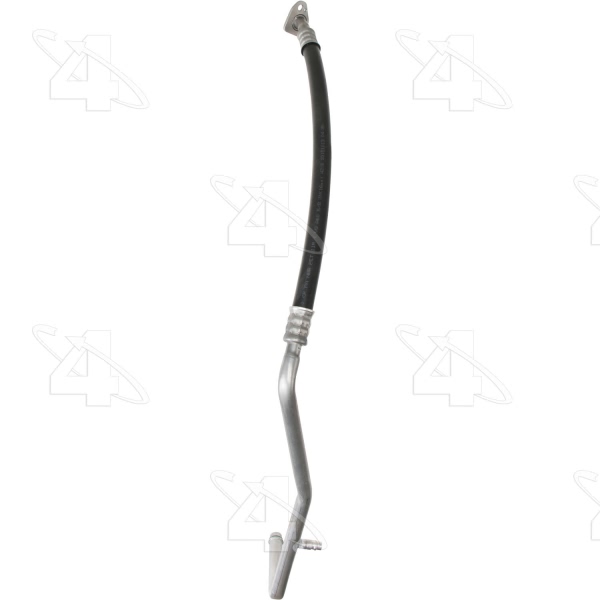

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | Flange |
End 2 Type | Capture O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Steel / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24679] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Service Port Type | R134-A Quick Disconnect |
Suction End Type | Male P-Nut |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361569775 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Dodge Sprinter 2500 | All Trims | All Engines |
2003-2006 Dodge Sprinter 3500 | All Trims | All Engines |
