Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56938 |

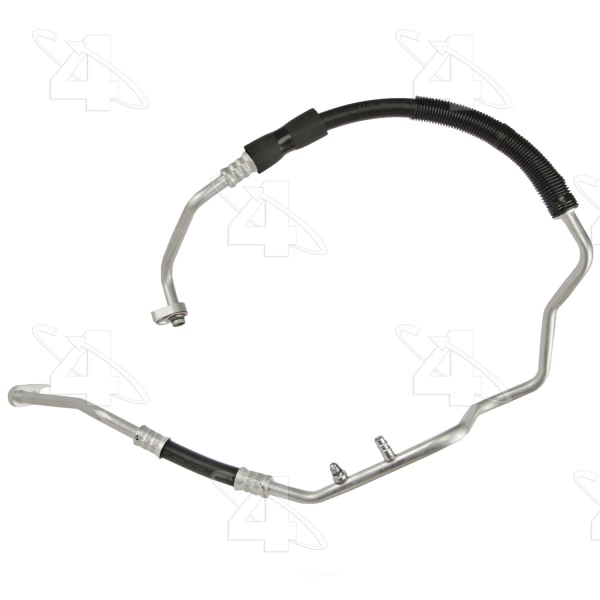

Part Description | A C Suction Line Hose Assembly |
Bracket | w/ Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |
End 2 Type | Captured O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24403] / Slimline Washer |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24650] / Green O-Ring |
O-Ring C Quantity | 1 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |

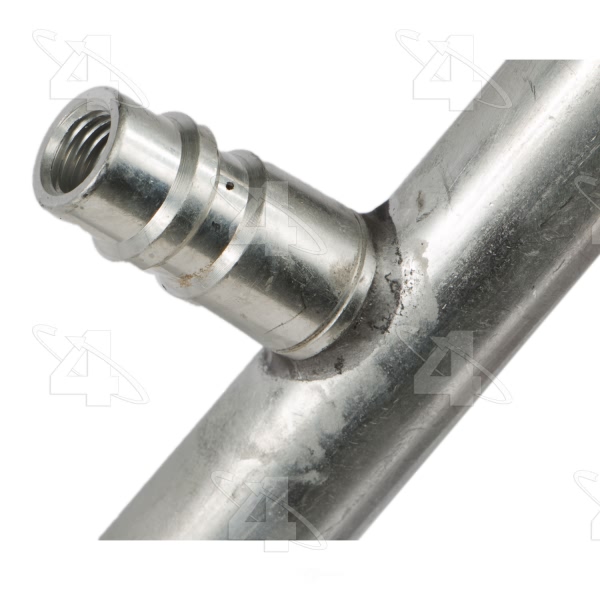

Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Port Quantity | 1 |
Switch Port Size | M12x1.500 |

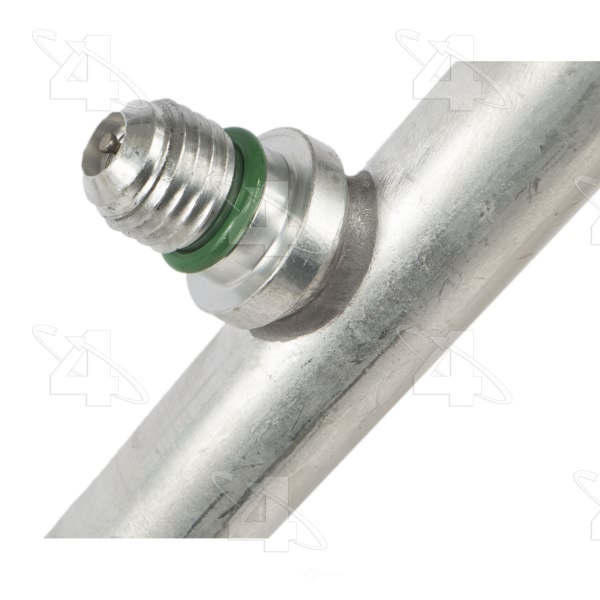

Switch Service Port | w/ Switch Port |
System Pressure | Low Pressure |
UPC | 096361569386 |
Year Make Model | Trim | Engine |
---|---|---|
2008 Ford Escape | All Trims | 6 Cyl 3.0L |
2008 Mercury Mariner | All Trims | 6 Cyl 3.0L |
