Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56936 |

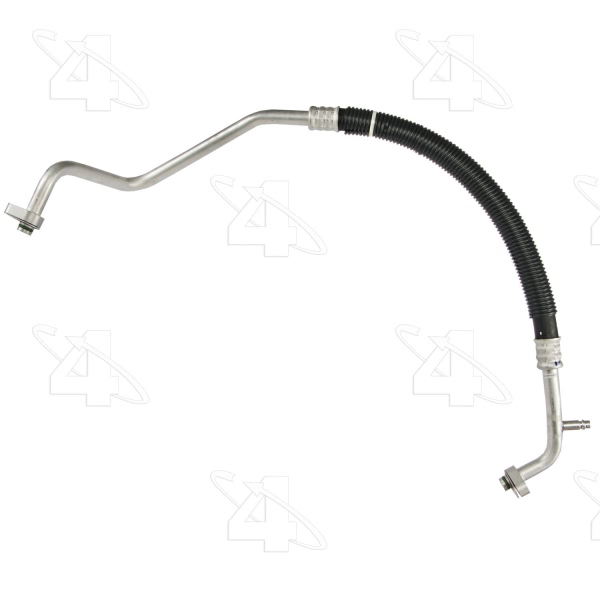

Part Description | A C Suction Line Hose Assembly |
Bracket | w/ Bracket |
Component Type | Suction Line |

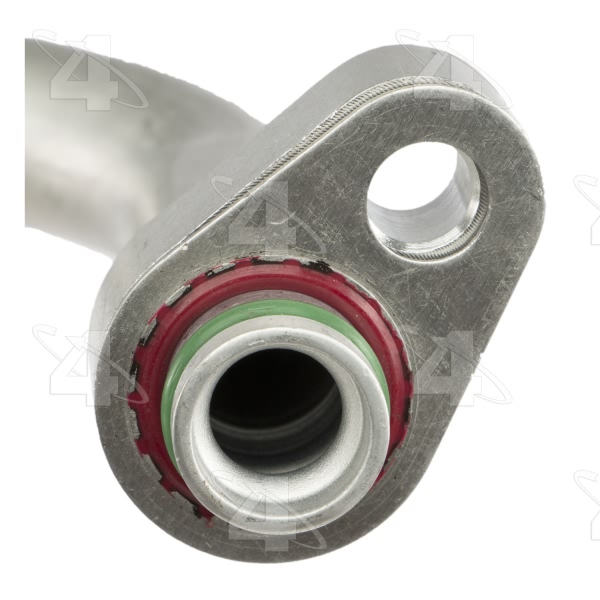

End 1 Type | P-Nut Fitting |

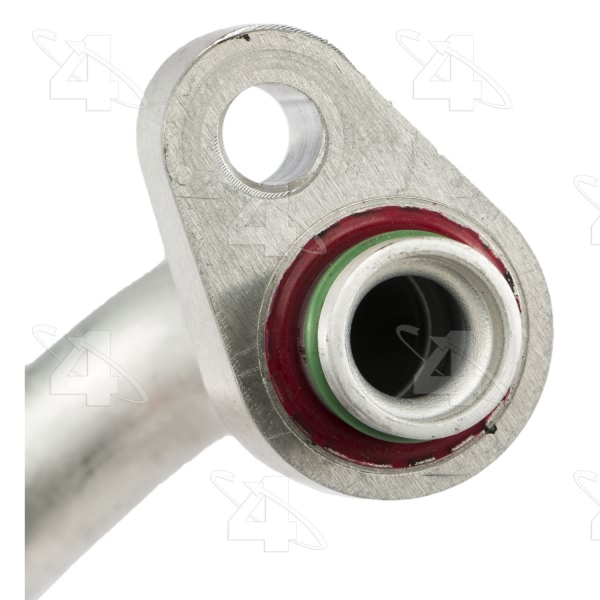

End 2 Type | Captured O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24243] / Tear Drop Sealing Washer |
O-Ring A Quantity | 2 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |

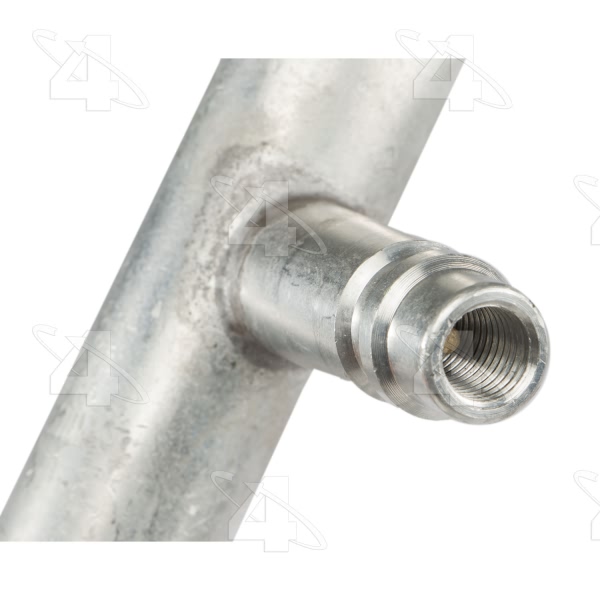

Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361569362 |
Year Make Model | Trim | Engine |
---|---|---|
2011 Ford Explorer | All Trims | All Engines |
2012-2016 Ford Explorer | All Trims | 6 Cyl 3.5L |
2017 Ford Explorer | Base | 6 Cyl 3.5L |
2017 Ford Explorer | XLT | 6 Cyl 3.5L |
2013 Ford Police Interceptor Utility | All Trims | All Engines |
2014 Ford Police Interceptor Utility | All Trims | 6 Cyl 3.7L |
2015 Ford Police Interceptor Utility | All Trims | 6 Cyl 3.5L |
2016 Ford Police Interceptor Utility | All Trims | 6 Cyl 3.7L |
2017 Ford Police Interceptor Utility | All Trims | All Engines |
