Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56688 |

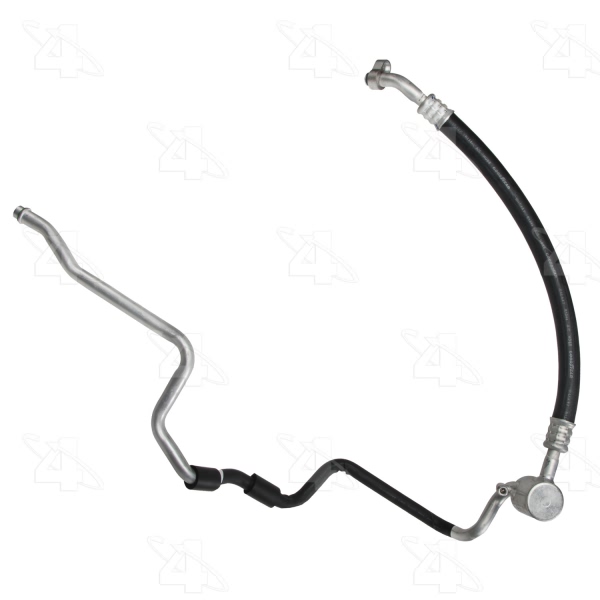

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |
End 2 Type | Flange |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/ Muffler |
O-Ring A Number/Desc | [24612] / Green O-Ring |
O-Ring A Quantity | 2 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Service Port Type | R134-A Quick Disconnect |
Suction End Type | Flange |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361566880 |
Year Make Model | Trim | Engine |
---|---|---|
2006 Volkswagen GTI | All Trims | All Engines |
2010 Volkswagen GTI | All Trims | All Engines |
1999-2006 Volkswagen Golf | All Trims | 4 Cyl 2.0L |
2000-2006 Volkswagen Golf | All Trims | 4 Cyl 1.8L |
1999-2005 Volkswagen Jetta | All Trims | 4 Cyl 2.0L |
2000-2005 Volkswagen Jetta | All Trims | 4 Cyl 1.8L |
