Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56527 |

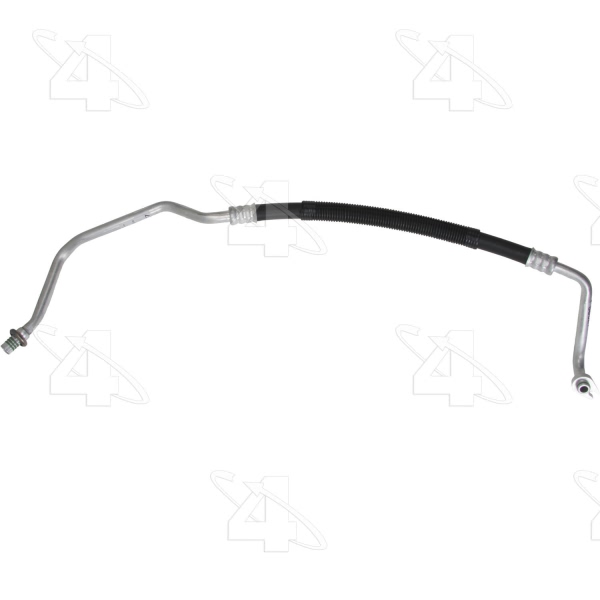

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |
End 2 Type | Male Springlock |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24621] / Green Oval O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24670] / Green O-Ring |
O-Ring B Quantity | 3 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/o Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Service Port Type | R134-A Quick Disconnect |
Suction End Type | Springlock |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361565272 |
Year Make Model | Trim | Engine |
---|---|---|
1995 Chrysler Cirrus | All Trims | 4 Cyl 2.4L |
1995 Chrysler Cirrus | All Trims | All Engines |
1995-1999 Chrysler Cirrus | All Trims | 6 Cyl 2.5L |
1998 Chrysler Cirrus | All Trims | All Engines |
2000 Chrysler Cirrus | All Trims | 4 Cyl 2.4L |
1997-2000 Chrysler Sebring | All Trims | 6 Cyl 2.5L |
1995-2000 Dodge Stratus | All Trims | 6 Cyl 2.5L |
2000 Plymouth Breeze | All Trims | 4 Cyl 2.4L |
