Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56263 |

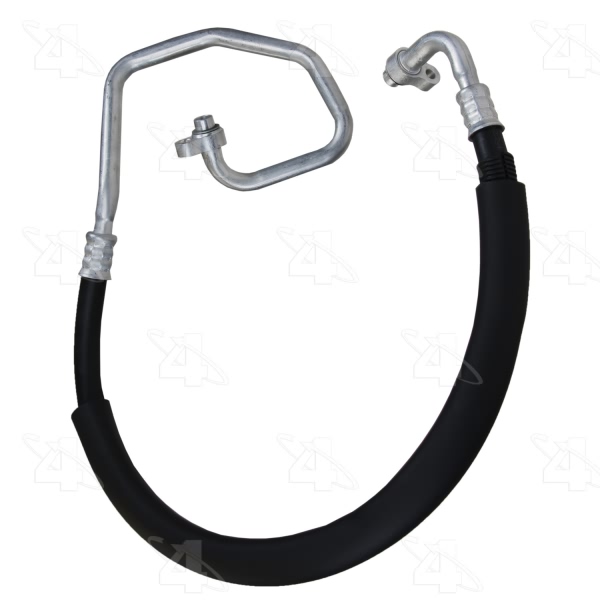

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |

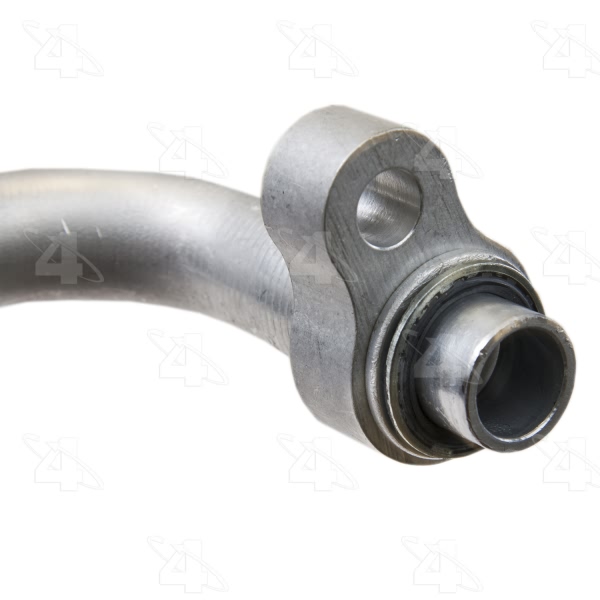

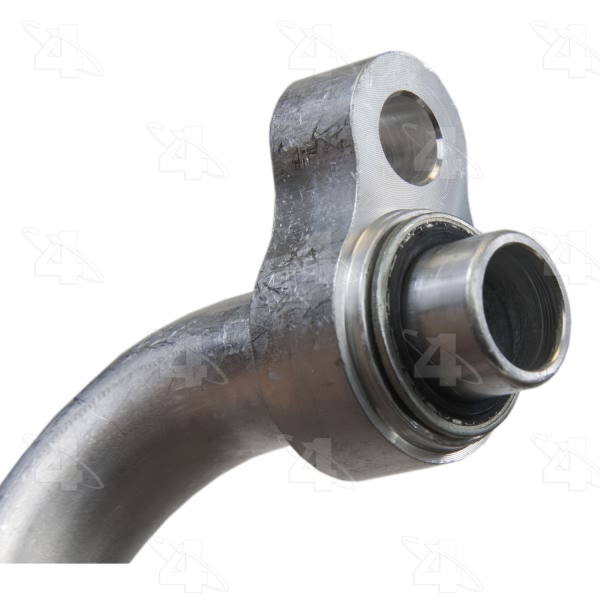

End 2 Type | Captured O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 2 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/o Service Port |
Suction End Type | P-Nut Fitting |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361562639 |
Year Make Model | Trim | Engine |
---|---|---|
2014 Chevrolet Express 1500 | All Trims | All Engines |
2006-2013 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
2014 Chevrolet Express 2500 | All Trims | All Engines |
2015-2016 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
2006-2013 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
2014 Chevrolet Express 3500 | All Trims | All Engines |
2015-2016 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
2014 Chevrolet Express Cargo | All Trims | All Engines |
2014 Chevrolet Express Pasajeros | All Trims | All Engines |
2014 GMC Savana 1500 | All Trims | All Engines |
