Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 56097 |

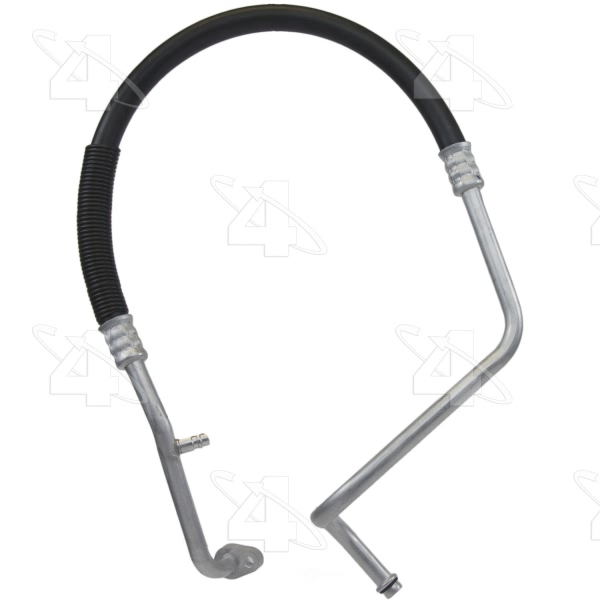

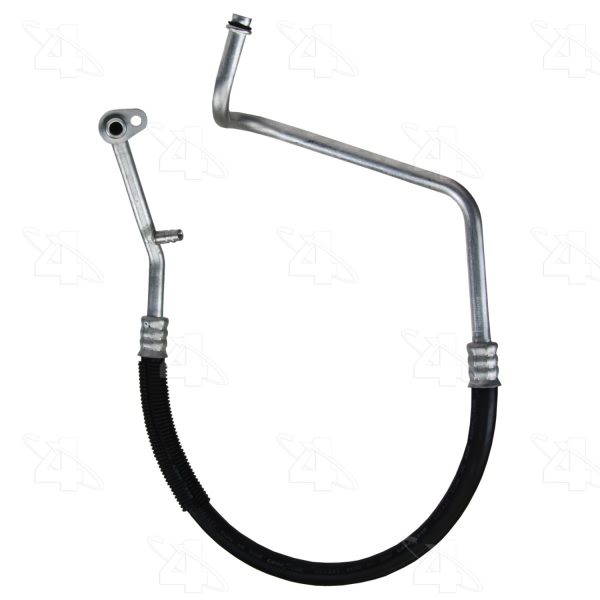

Part Description | A C Suction Line Hose Assembly |
Bracket | w/ Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |

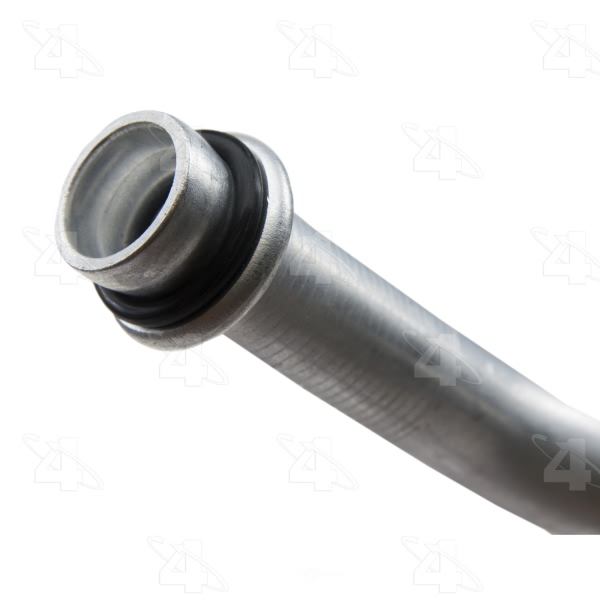

End 2 Type | O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |

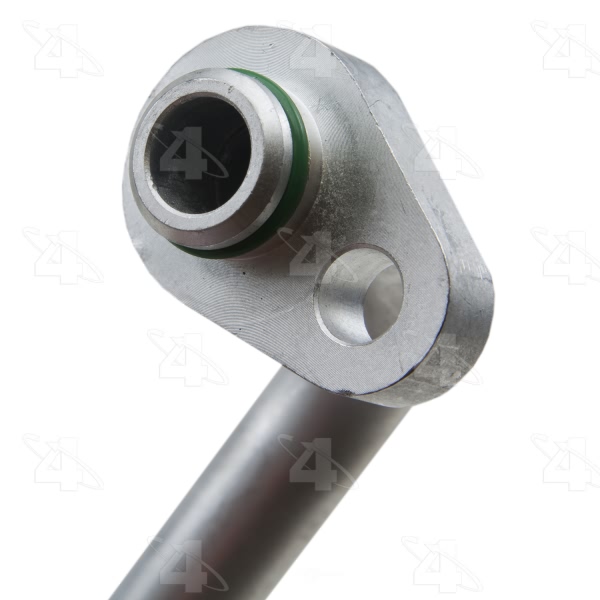

O-Ring A Number/Desc | [24622] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24681] / Green O-Ring |
O-Ring B Quantity | 1 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |

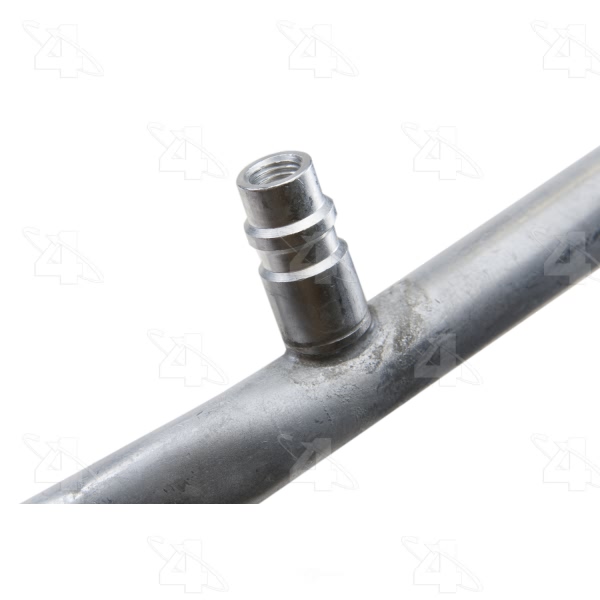

Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Suction End Type | Flange |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361560970 |
Year Make Model | Trim | Engine |
---|---|---|
2000 Chrysler Voyager | All Trims | 4 Cyl 2.4L |
1996-2000 Dodge Caravan | All Trims | 4 Cyl 2.4L |
1996-1997 Dodge Grand Caravan | All Trims | 4 Cyl 2.4L |
1996-1997 Plymouth Grand Voyager | All Trims | 4 Cyl 2.4L |
1996-2000 Plymouth Voyager | All Trims | 4 Cyl 2.4L |
