Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55764 |

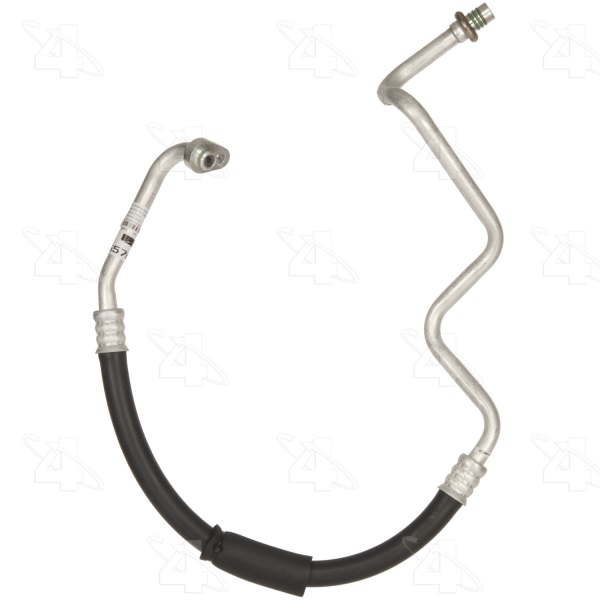

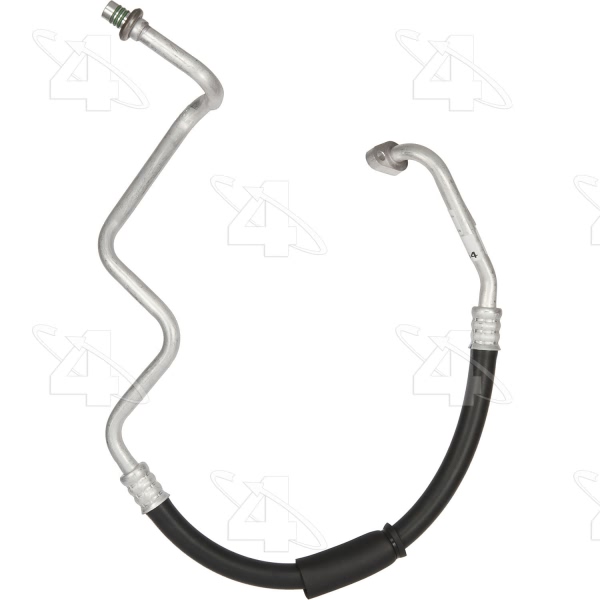

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | Springlock |
End 2 Type | Captured O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24642] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24670] / Green O-Ring |
O-Ring B Quantity | 3 |
O-Ring C Number/Desc | [24220] / Spring |
O-Ring C Quantity | 1 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/o Service Port |
Suction End Type | P-Nut Fitting |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361557642 |
Year Make Model | Trim | Engine |
---|---|---|
1993-1997 Chrysler Concorde | All Trims | All Engines |
1993-1997 Chrysler Intrepid | All Trims | All Engines |
1994-1997 Chrysler LHS | All Trims | All Engines |
1993 Chrysler New Yorker | Salon | 6 Cyl 3.3L |
1994-1996 Chrysler New Yorker | All Trims | All Engines |
1993-1997 Dodge Intrepid | All Trims | All Engines |
1993-1997 Eagle Vision | All Trims | All Engines |
