Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55433 |

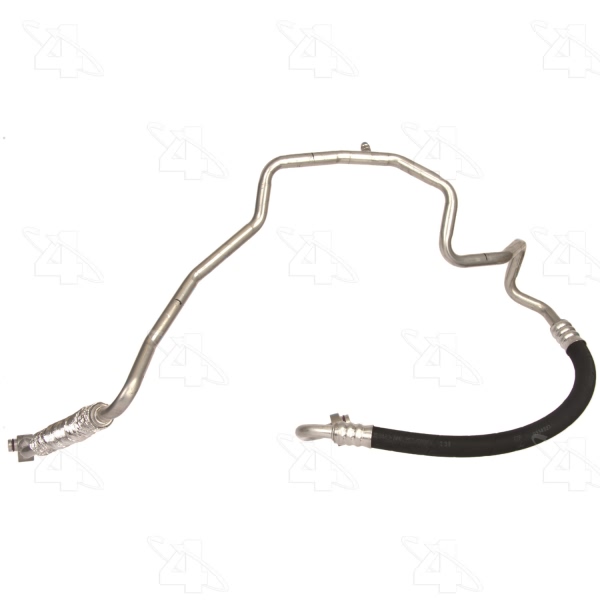

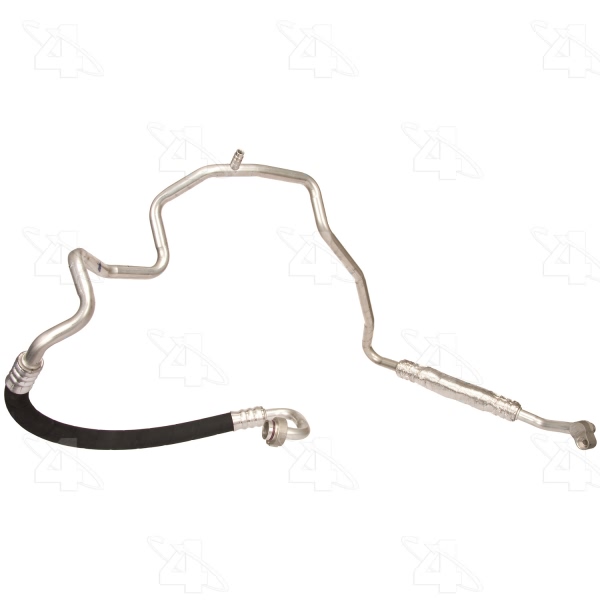

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |

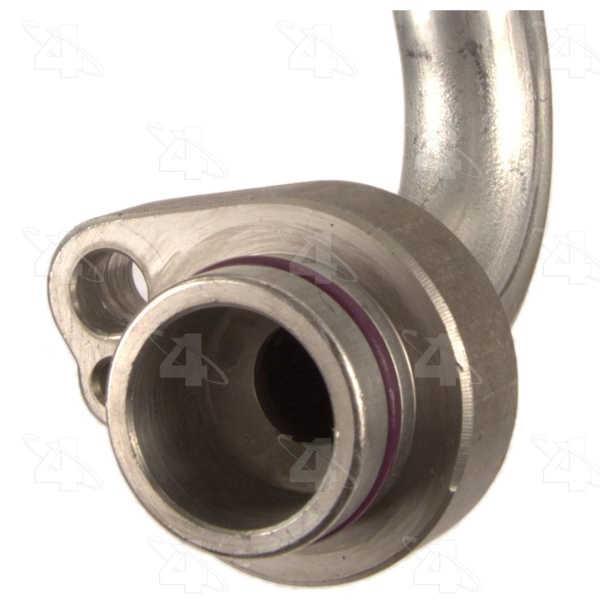

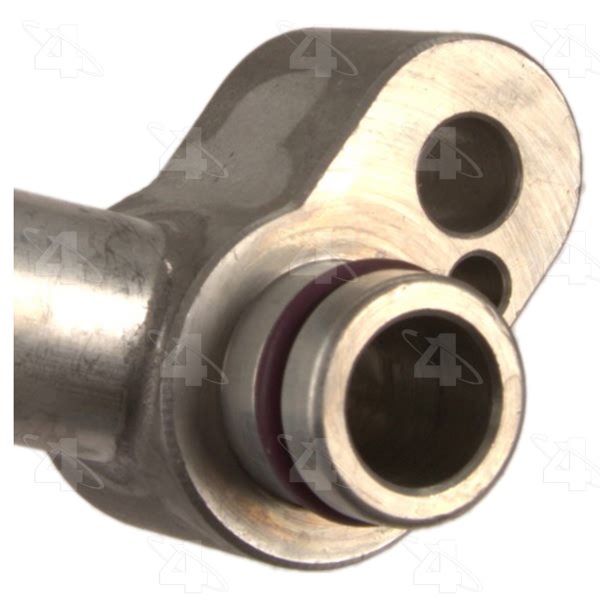

End 2 Type | Captured O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24682] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24635] / Green Round O-Ring |
O-Ring B Quantity | 1 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Service Port Type | R134-A Quick Disconnect |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361554337 |
Year Make Model | Trim | Engine |
---|---|---|
2011-2012 Volkswagen GTI | All Trims | All Engines |
2010 Volkswagen Golf | All Trims | 5 Cyl 2.5L |
2011-2012 Volkswagen Golf | All Trims | All Engines |
2013-2014 Volkswagen Golf | All Trims | 5 Cyl 2.5L |
2012 Volkswagen Golf R | All Trims | All Engines |
2010-2013 Volkswagen Golf SportWagen | All Trims | All Engines |
2005-2010 Volkswagen Jetta | All Trims | 5 Cyl 2.5L |
2006 Volkswagen Jetta | All Trims | 4 Cyl 1.9L |
2011-2013 Volkswagen Jetta | S | 5 Cyl 2.5L |
2011-2013 Volkswagen Jetta | SE | 5 Cyl 2.5L |
