Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55301 |

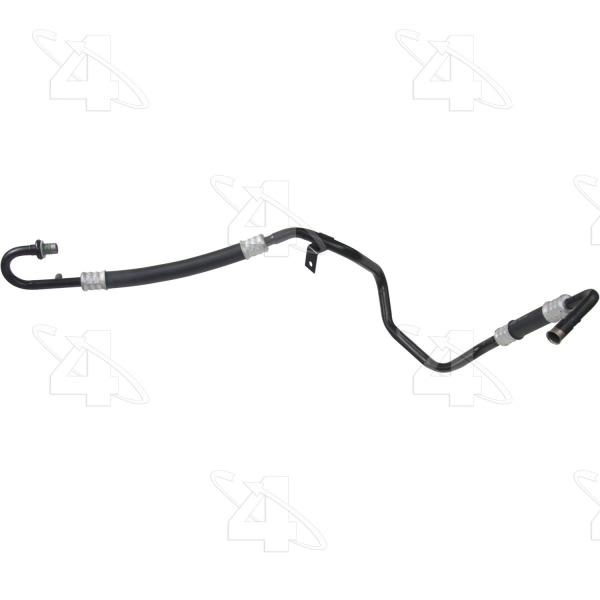

Part Description | A C Suction Line Hose Assembly |
Bracket | w/ Bracket |
Component Type | Suction Line |
End 1 Type | Springlock |
End 2 Type | Female Springlock |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24670] / Green O-Ring |
O-Ring A Quantity | 6 |
O-Ring B Number/Desc | [24650] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24220] / Spring |
O-Ring C Quantity | 2 |
O.E. Replacement | Yes |
Refrigerant Type | R12 |
Service Port | w/o Service Port |
Suction End Type | Springlock |
Switch Included | Not Included |
Switch Port Quantity | 1 |
Switch Port Size | 1/4 |
Switch Service Port | w/ Switch Port |
System Pressure | Low Pressure |
UPC | 096361553019 |
Year Make Model | Trim | Engine |
---|---|---|
1992-1993 Ford Tempo | All Trims | 4 Cyl 2.3L |
1992-1993 Mercury Topaz | All Trims | 4 Cyl 2.3L |
