Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 55198 |

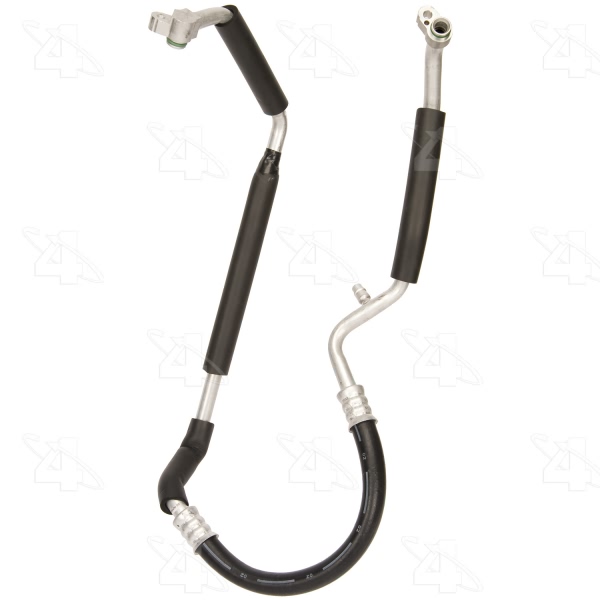

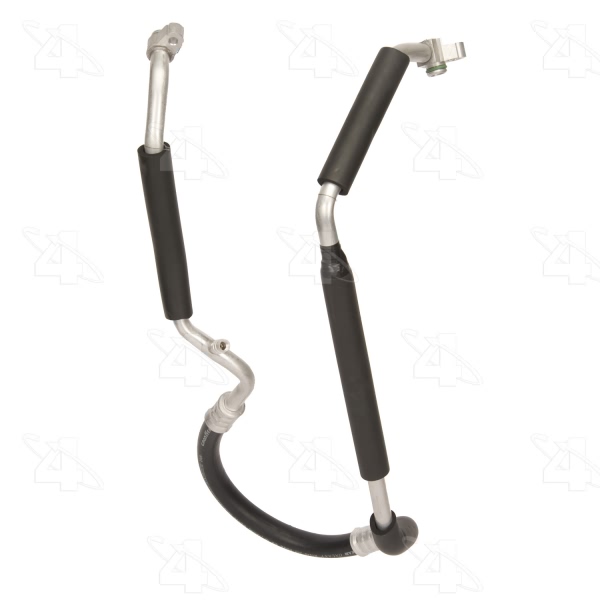

Part Description | A C Suction Line Hose Assembly |
Bracket | w/o Bracket |
Component Type | Suction Line |
End 1 Type | P-Nut Fitting |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24682] / Green O-Ring |
O-Ring A Quantity | 2 |
O.E. Replacement | Yes |
Refrigerant Type | R134-A |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Service Port Size | 13 mm |
Service Port Type | R134-A Quick Disconnect |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Included | Not Included |
Switch Service Port | w/o Switch Port |
System Pressure | Low Pressure |
UPC | 096361551985 |
Year Make Model | Trim | Engine |
---|---|---|
2003-2006 Toyota 4Runner | All Trims | 6 Cyl 4.0L |
2007-2009 Toyota FJ Cruiser | All Trims | All Engines |
