Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66682 |

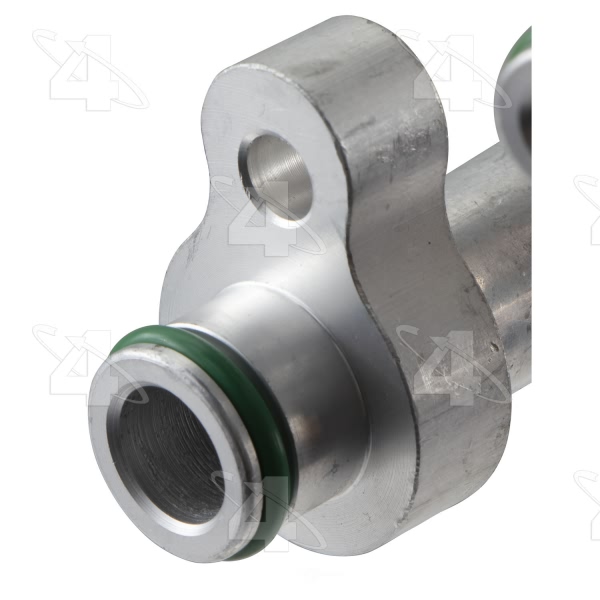

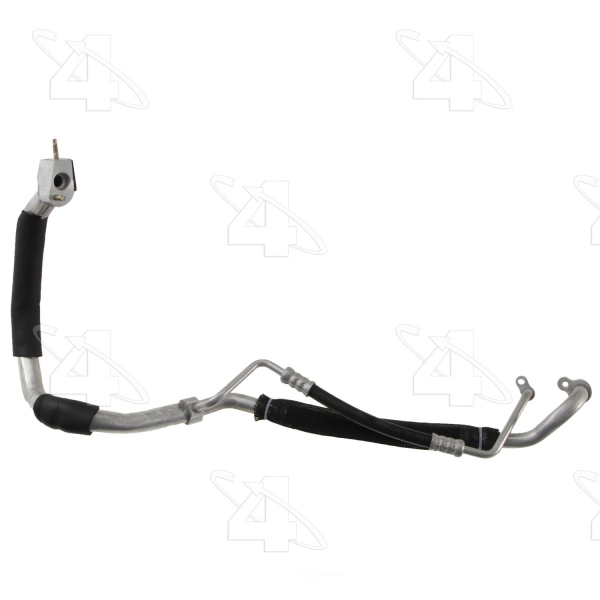

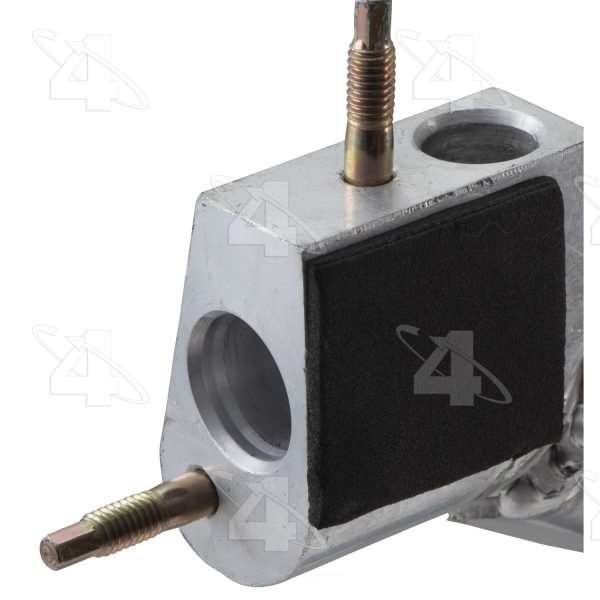

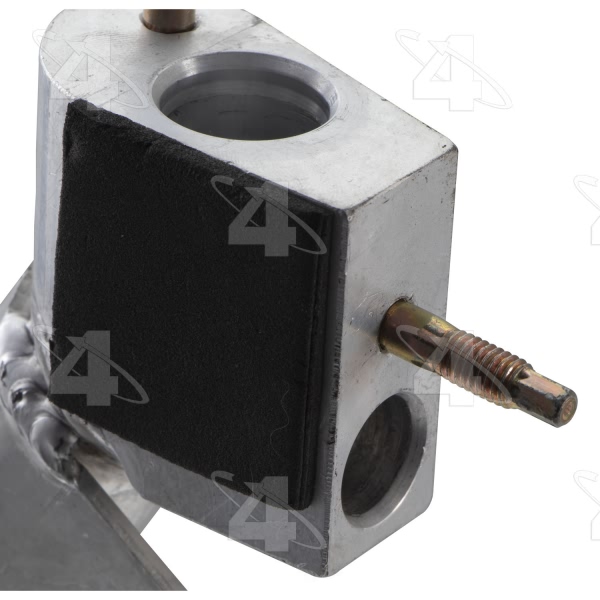

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | P-Nut Fitting |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24649] / Green O-Ring |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24682] / Green O-Ring |
O-Ring B Quantity | 2 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Service Port | w/o Service Port |
Style | Hose Assembly w/ IHX |
Suction End Size | No. 12 |
Suction End Type | P-Nut Fitting |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361141339 |
Year Make Model | Trim | Engine |
---|---|---|
2012 Mercedes-Benz C250 | All Trims | 4 Cyl 1.8L |
2012 Mercedes-Benz C250 | All Trims | 6 Cyl 3.5L |
2013-2014 Mercedes-Benz C250 | All Trims | All Engines |
2015 Mercedes-Benz C250 | All Trims | 4 Cyl 1.8L |
2010-2014 Mercedes-Benz C300 | All Trims | All Engines |
2010-2015 Mercedes-Benz C350 | All Trims | All Engines |
2010-2015 Mercedes-Benz C63 AMG | All Trims | All Engines |
2011 Mercedes-Benz E250 | All Trims | 8 Cyl 5.5L |
2011-2012 Mercedes-Benz E250 | All Trims | 6 Cyl 3.5L |
2012 Mercedes-Benz E250 | All Trims | 8 Cyl 4.7L |
