Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66637 |

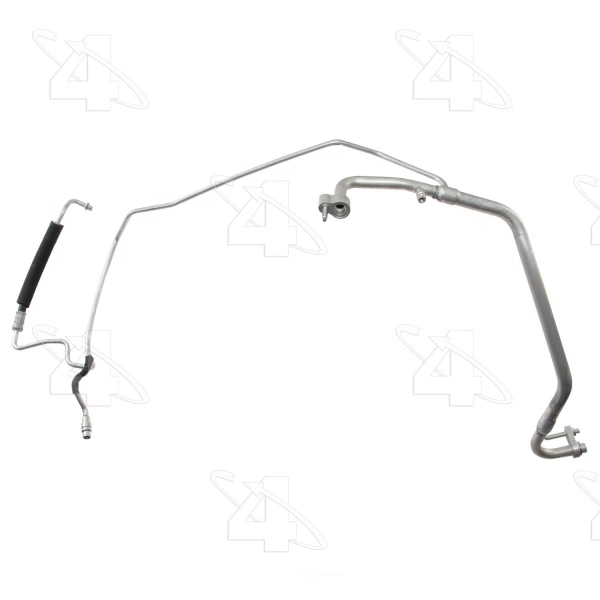

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | Flange |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24401] / Slim Line Sealing Washer |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24404] / Slimline Washer |
O-Ring B Quantity | 2 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Service Port | w/ Service Port |
Service Port Qty | 2 |
Style | Hose Assembly w/ IHX |
Suction End Size | No. 12 |
Suction End Type | P-Nut Fitting |
Svc Port High Side | High Side |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361125612 |
Year Make Model | Trim | Engine |
---|---|---|
2017 Buick LaCrosse | All Trims | All Engines |
2018 Buick LaCrosse | All Trims | 4 Cyl 2.5L |
2018 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
2017 Chevrolet Malibu | All Trims | All Engines |
2018 Chevrolet Malibu | All Trims | 4 Cyl 1.5L |
2018 Chevrolet Malibu | All Trims | 4 Cyl 1.8L |
2018 Chevrolet Malibu | All Trims | 4 Cyl 2.0L |
