Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66537 |

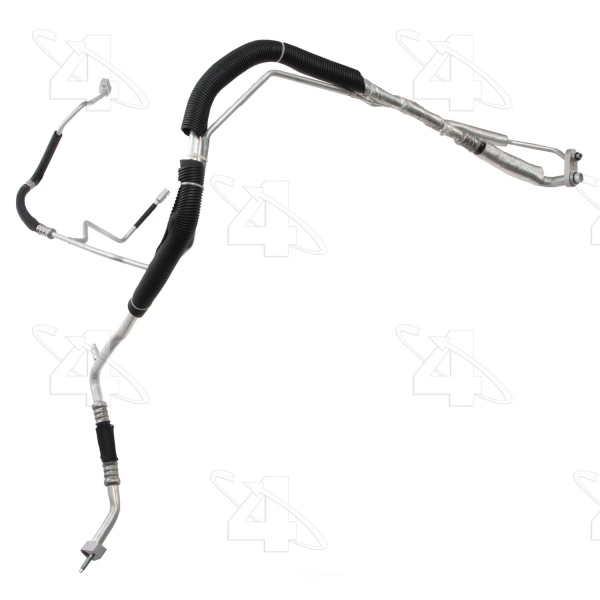

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | Captive O-Ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | Captive O-Ring |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24404] / Slimline Washer |
O-Ring A Quantity | 3 |
O-Ring B Quantity | 2 |
O-Ring C Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Style | Hose Assy /Suction, Liquid |
Suction End Type | P-Nut Fitting |
Svc Port High Side | High Side |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361124905 |
Year Make Model | Trim | Engine |
---|---|---|
2015-2017 Ford Transit Custom | All Trims | All Engines |
2015-2017 Ford Transit-150 | All Trims | All Engines |
2015-2017 Ford Transit-250 | All Trims | All Engines |
2015-2017 Ford Transit-350 | All Trims | All Engines |
2015-2017 Ford Transit-350 HD | All Trims | All Engines |
