Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66524 |

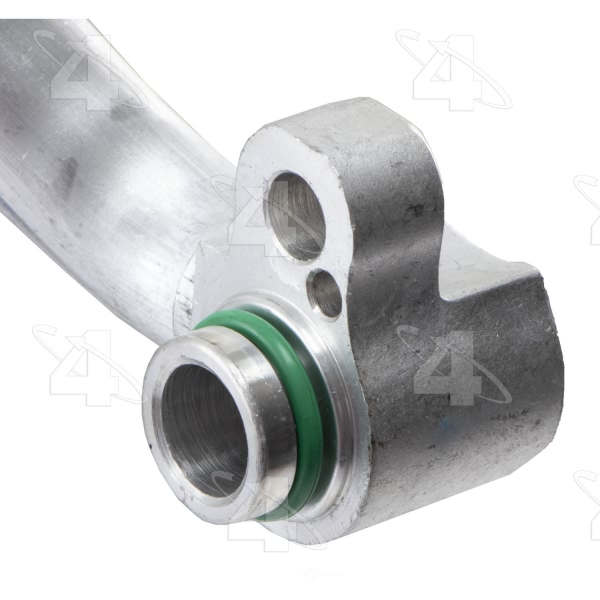

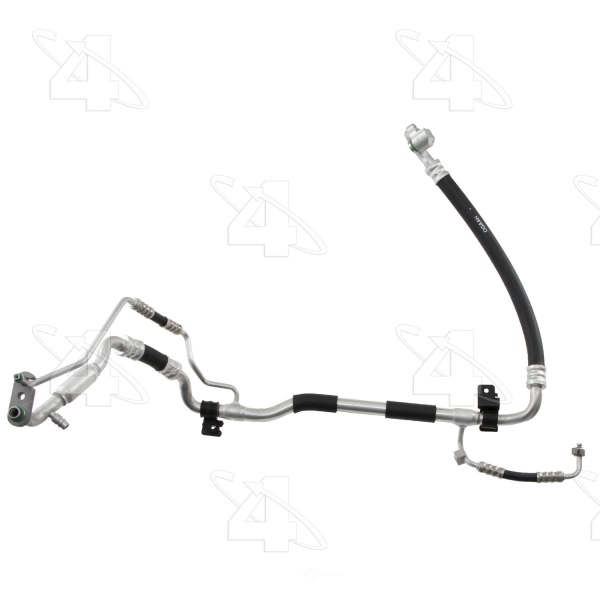

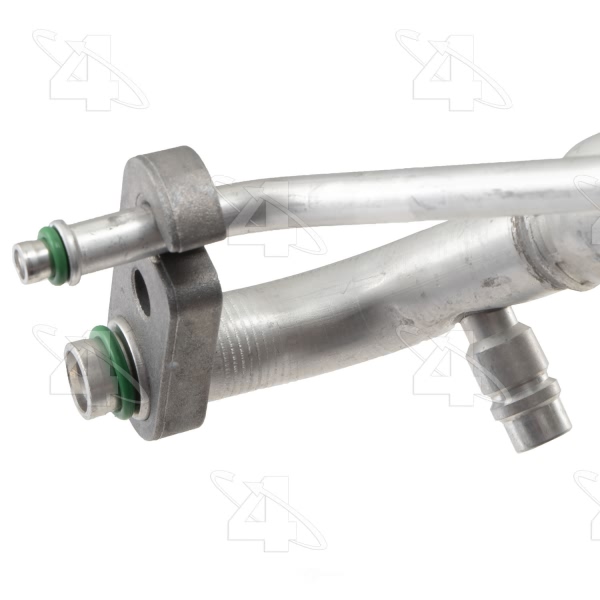

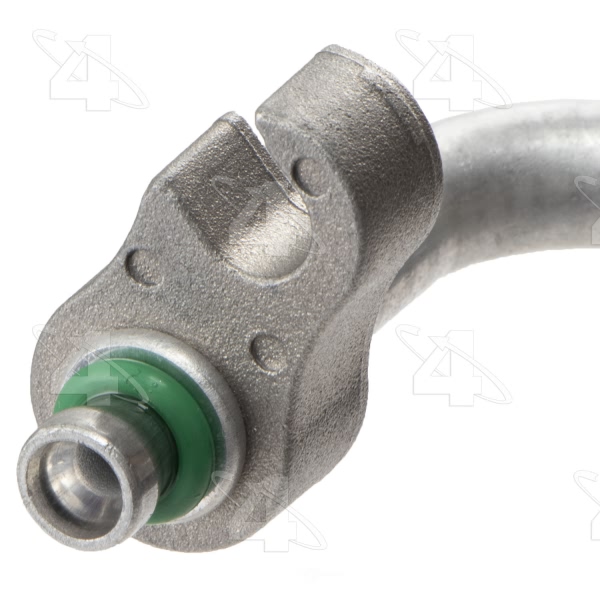

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Gender | Male |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Style | Hose Assembly w/ IHX |
Suction End Size | No. 10 |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Service Port | w/o Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361118799 |
Year Make Model | Trim | Engine |
---|---|---|
2015 Hyundai Elantra | All Trims | All Engines |
2016 Hyundai Elantra | All Trims | 4 Cyl 1.8L |
2016 Hyundai Elantra | All Trims | 4 Cyl 2.0L |
2015-2016 Hyundai Elantra GT | All Trims | All Engines |
2017 Hyundai Elantra GT | All Trims | 4 Cyl 2.0L |
2017 Kia Forte | All Trims | All Engines |
2017 Kia Forte Koup | All Trims | 4 Cyl 1.6L |
2017 Kia Forte Koup | All Trims | 4 Cyl 2.0L |
2017 Kia Forte5 | All Trims | 4 Cyl 1.6L |
2017 Kia Forte5 | All Trims | 4 Cyl 2.0L |
