Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66517 |

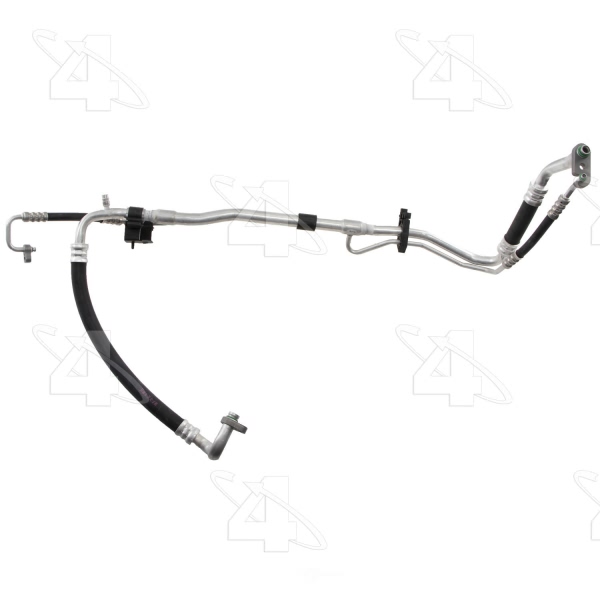

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Style | P-Nut Fitting |
Manifold | w/ Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24682] / Green O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24641] / Green O-Ring |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24109] / Green O-Ring |
O-Ring C Quantity | 1 |
O-Ring D Quantity | 2 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Qty | 1 |
Style | Hose Assembly w/ IHX |
Suction End Type | P-Nut Fitting |
Sve Port Low Side | Low Side |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361118720 |
Year Make Model | Trim | Engine |
---|---|---|
2012-2014 Hyundai Azera | All Trims | All Engines |
