Vehicle Specific
Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66315 |

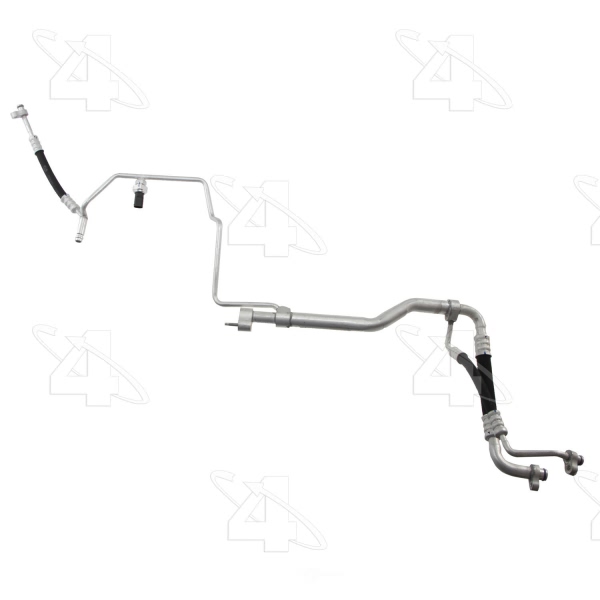

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/o Bracket |
End 1 Type | P-Nut Fitting |
End 2 Type | Male O-ring |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Gender | Female |
Liquid Line Style | P-Nut Fitting |
Manifold | w/o Manifold |
Material | Aluminum / Rubber |
Muffler | w/o Muffler |
O-Ring A Number/Desc | [24150] / Black O-Ring |
O-Ring A Quantity | 1 |
O-Ring B Number/Desc | [24684] / Green O-Ring |
O-Ring B Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134a |
Service Port | w/o Service Port |
Style | Hose Assembly w/ IHX |
Suction End Size | No. 12 |
Suction End Type | P-Nut Fitting |
Switch Port Quantity | 1 |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361116610 |
Year Make Model | Trim | Engine |
---|---|---|
2013-2016 Mercedes-Benz GL350 | All Trims | All Engines |
2013-2016 Mercedes-Benz GL450 | All Trims | All Engines |
2013-2014 Mercedes-Benz GL550 | All Trims | All Engines |
2016 Mercedes-Benz GLE300d | All Trims | All Engines |
2016 Mercedes-Benz GLE350 | All Trims | All Engines |
2016 Mercedes-Benz GLE350d | All Trims | All Engines |
2016 Mercedes-Benz GLE400 | All Trims | All Engines |
2016 Mercedes-Benz GLE450 AMG | All Trims | All Engines |
2016 Mercedes-Benz GLE550e | All Trims | All Engines |
2016 Mercedes-Benz GLE63 AMG | All Trims | All Engines |
