Check if it fits by entering your vehicle infoBrand | Four Seasons |
Part Number | 66111 |

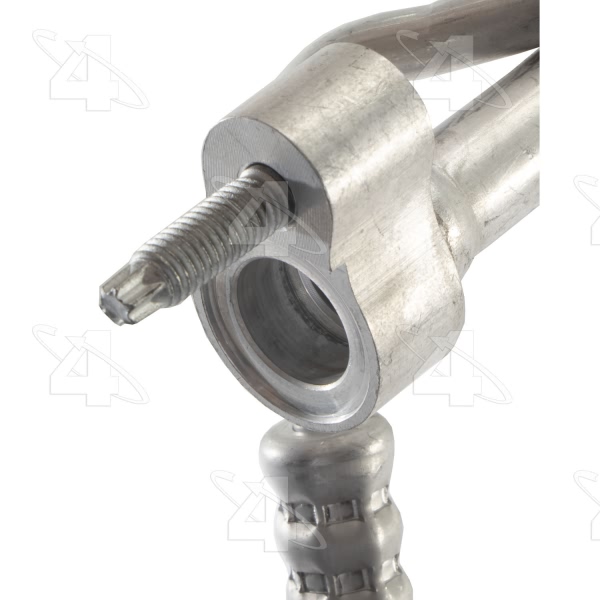

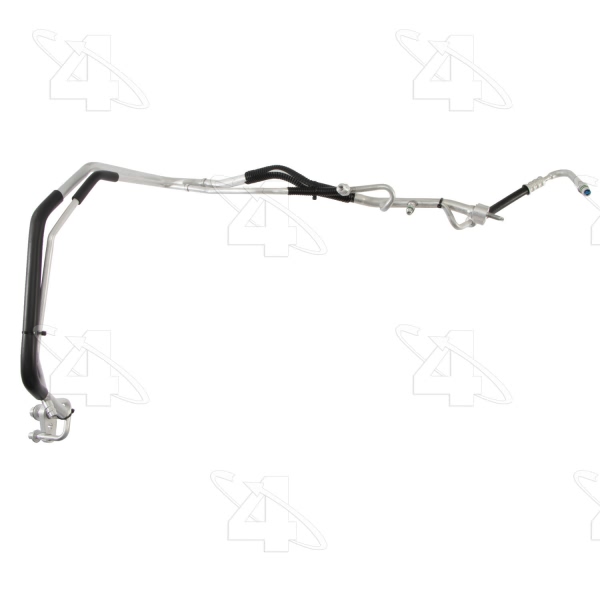

Part Description | A C Suction And Liquid Line Hose Assembly |
Bracket | w/ Bracket |
End 1 Type | Flange |
End 2 Type | Male P-Nut Fitting |
Fittings Included | Included |
Gasket or Seal Included | Included |
Liquid Line Gender | Male |

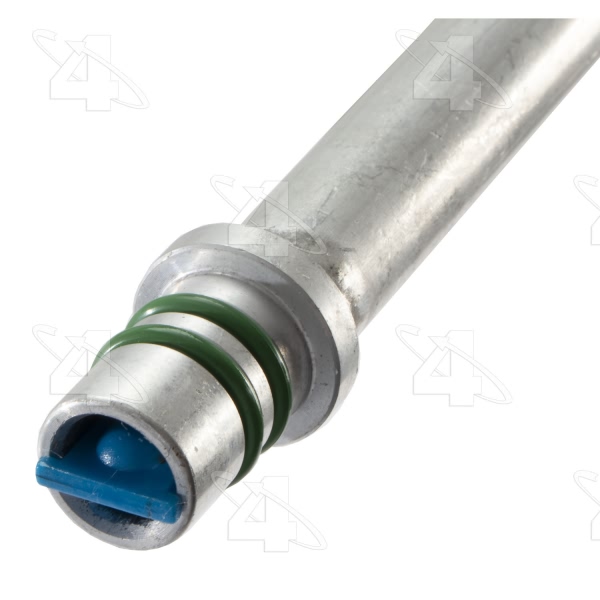

Liquid Line Style | Captured O-Ring |

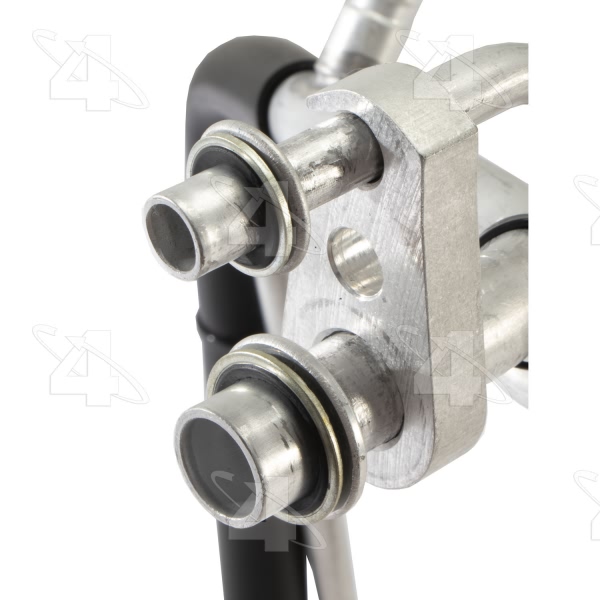

Manifold | w/ Manifold |
Muffler | w/o Muffler |
O-Ring A Quantity | 2 |
O-Ring B Number/Desc | [24402] / Slimline Washer |
O-Ring B Quantity | 1 |
O-Ring C Number/Desc | [24404] / Slimline Washer |
O-Ring C Quantity | 1 |
O-Ring D Number/Desc | [24606] / Green O-Ring |
O-Ring D Quantity | 1 |
O.E. Replacement | Yes |
Orifice Tube | w/o Orifice Tube |
Refrigerant Type | R134a |
Service Port | w/ Service Port |
Service Port Qty | 2 |
Style | Hose Assy /Suction, Liquid |
Suction End Size | No. 12 |
Suction End Type | P-Nut Fitting |
Svc Port High Side | High Side |
Sve Port Low Side | Low Side |
Switch Port Quantity | 1 |
Switch Port Size | M10X1.25 |
Switch Service Port | w/ Switch Port |
System Pressure | High Pressure / Low Pressure |
UPC | 096361102118 |
Year Make Model | Trim | Engine |
---|---|---|
2006-2007 Buick LaCrosse | All Trims | All Engines |
2008 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
2008-2009 Buick LaCrosse | All Trims | 6 Cyl 3.8L |
2006-2011 Chevrolet Impala | All Trims | All Engines |
2006-2007 Chevrolet Monte Carlo | All Trims | All Engines |
2005-2008 Pontiac Grand Prix | All Trims | All Engines |
